Removal and Replacement

Alternator Removal and Installation

Removal

1. Remove the air intake duct.

2. Do the battery terminal disconnection procedure Battery Terminal Disconnection And Reconnection.

3. Remove the engine cover.

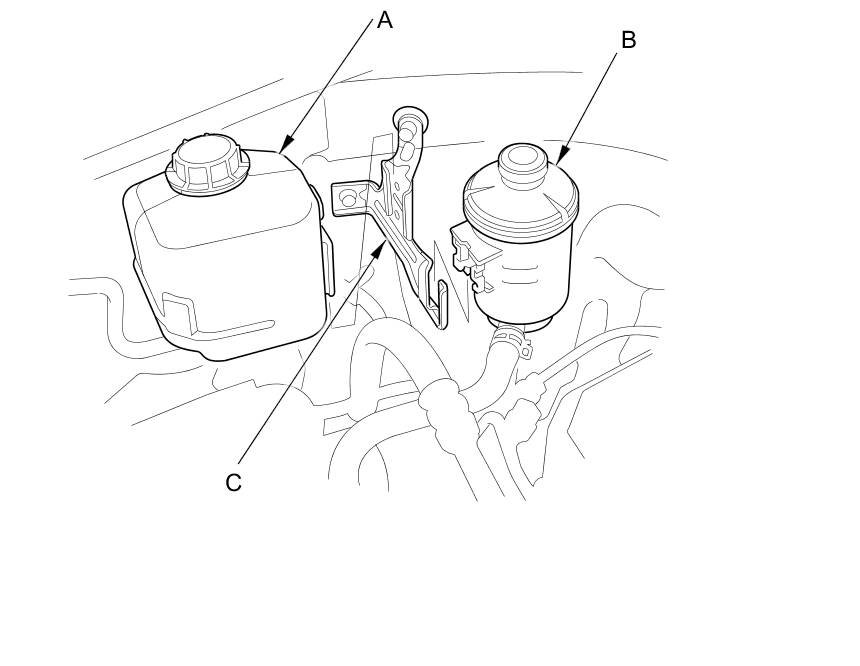

4. Remove the coolant reservoir (A) and the power steering fluid reservoir (B), then remove the holder bracket (C).






5. Remove the drive belt Service and Repair.

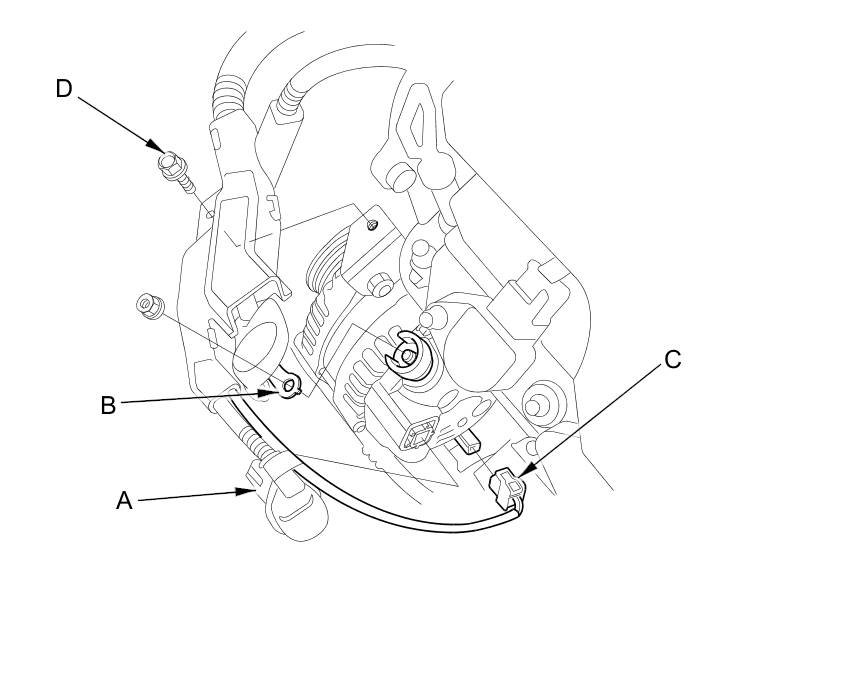

6. Disconnect the alternator connector (A) and the positive alternator cable (B) from the alternator.





7. Disconnect the A/C compressor clutch connector (C) from the A/C compressor.

8. Remove the bolt (D) securing the harness holder.

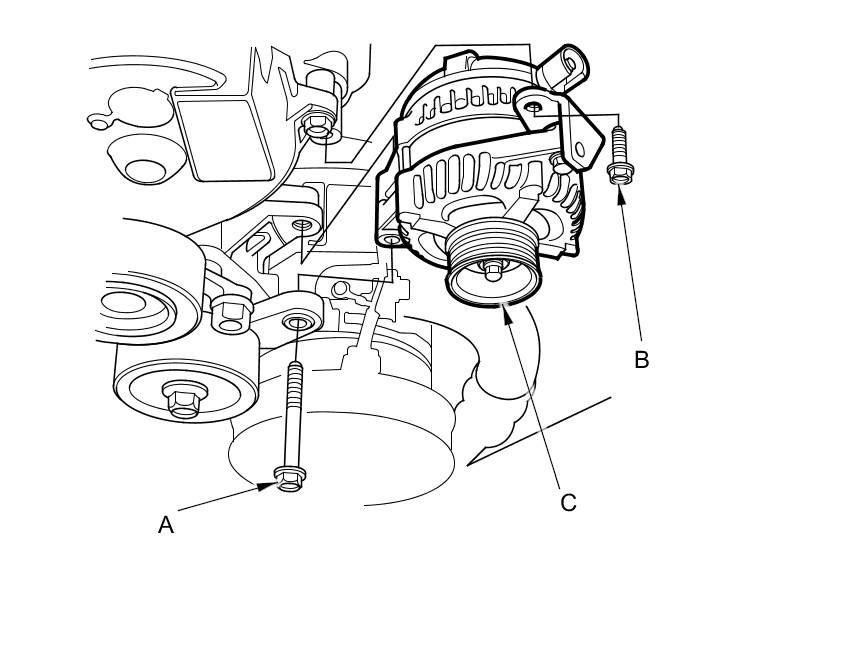

9. Remove the mounting bolt (A) and the alternator bracket mounting bolt (B), then remove the alternator (C).






Installation

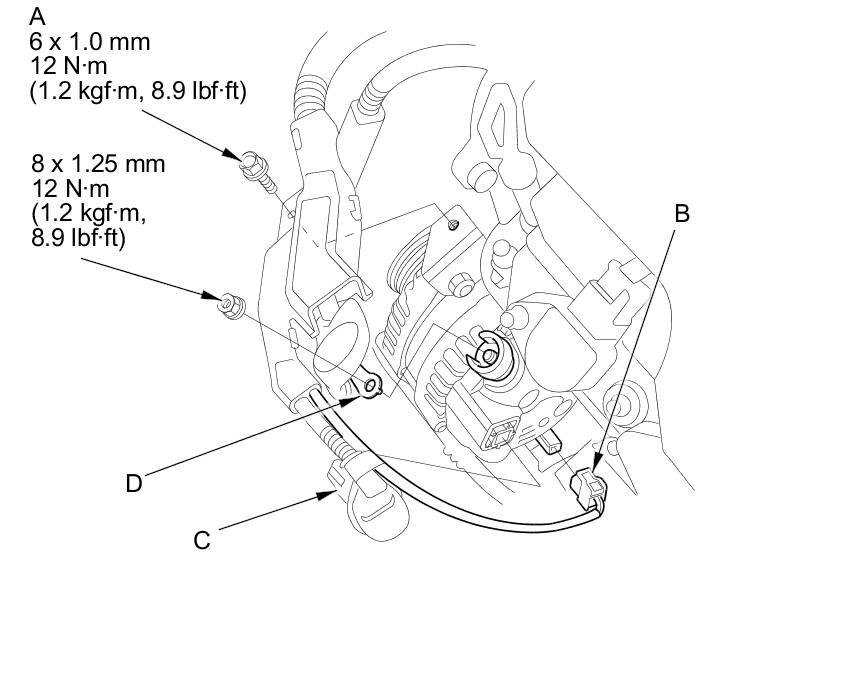

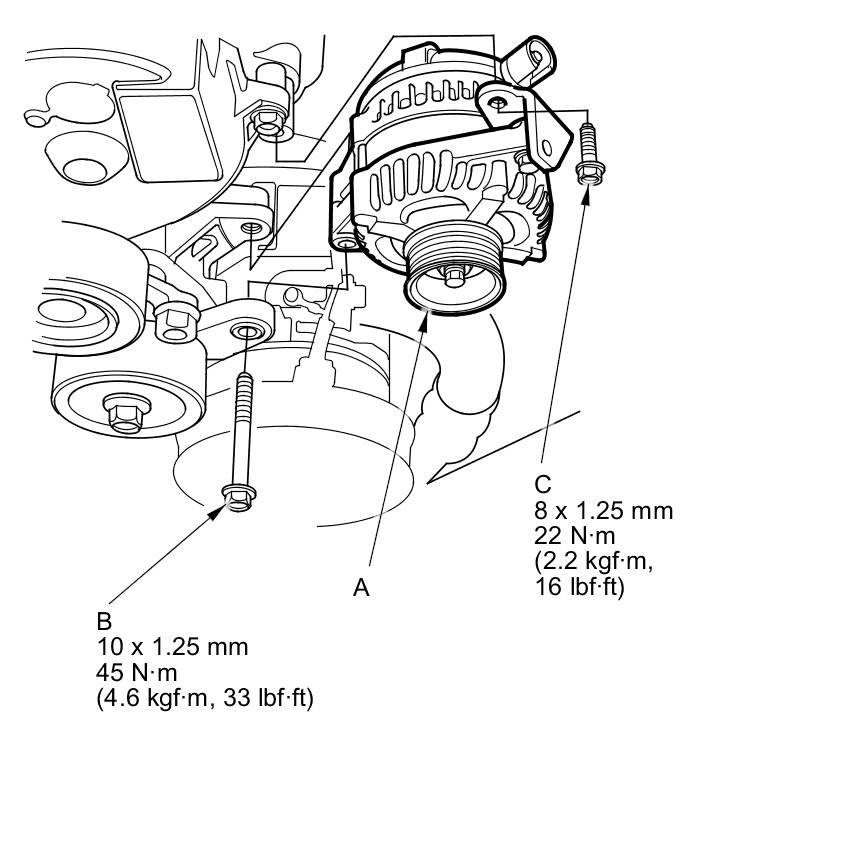

1. Install the alternator (A), then tighten the mounting bolt (B) and the alternator bracket mounting bolt (C).






2. Install the bolt (A) securing the harness holder.





3. Connect the A/C compressor clutch connector (B) to the A/C compressor.

4. Connect the alternator connector (C) and the positive alternator cable (D) to the alternator. Make sure the crimped it side of the ring terminal faces away from the alternator when you connect it.

5. Install the drive belt Service and Repair.

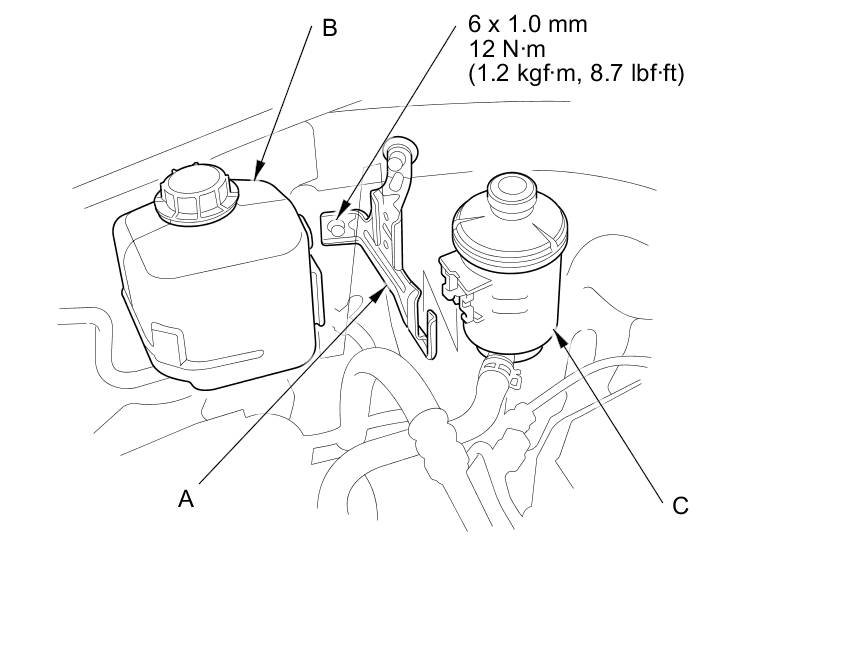

6. Install the holder bracket (A), then install the coolant reservoir (B) and the power steering fluid reservoir (C).






7. Install the engine cover.

8. Do the battery terminal reconnection procedure Battery Terminal Disconnection And Reconnection.

9. Install the air intake duct Front Bulkhead Cover Replacement.
