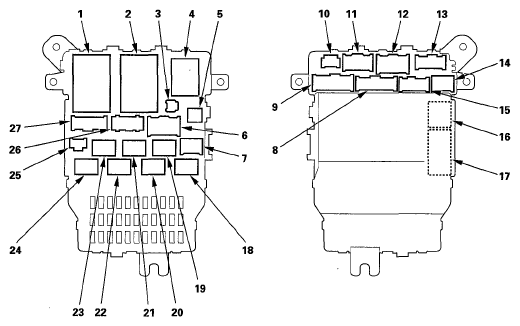

Under-Dash Fuse/Relay Box
UNDER-DASH FUSE/RELAY BOX TERMINAL AND SOCKET REFERENCE CHART
| Socket | Ref | Terminal | Connects to |
|---|---|---|---|
| A | 6 | 6 | Ignition switch harness (see IGNITION SWITCH HARNESS ) |
| A/F sensor relay | 20 | 4 | |
| B | 12 | 6 | Right engine compartment wire harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS ) |
| C | 11 | 12 | Right engine compartment wire harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS ) |
| D | 13 | 17 | Right engine compartment wire harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS ) |
| E | 8 | 16 | Floor wire harness (see FLOOR WIRE HARNESS (LEFT BRANCH) ) |
| F | 9 | 14 | Floor wire harness (see FLOOR WIRE HARNESS (LEFT BRANCH) ) |
| G | 14 | 6 | Not used |
| H | 15 | 14 | Floor wire harness (see FLOOR WIRE HARNESS (LEFT BRANCH) ) |
| Ignition coil relay | 23 | 4 | |
| J | 27 | 21 | Driver's door subharness (see DRIVER'S DOOR WIRE HARNESS ) |
| K | 26 | 12 | Driver's door subharness (see DRIVER'S DOOR WIRE HARNESS ) |
| M | 25 | 3 | MICU service check connector |
| N | 2 | 45 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (LEFT BRANCH) ) |
| P (MICU) | 17 | 30 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (LEFT BRANCH) ) |
| PGM-FI main relay 1 (Fl MAIN) | 21 | 4 | |
| PGM-FI main relay 2 (FUEL PUMP) | 24 | 4 | |
| Power window relay | 22 | 4 | |
| Q (MICU) | 16 | 14 | Floor wire harness (see FLOOR WIRE HARNESS (LEFT BRANCH) ) |
| R (MES connector) | 3 | 2 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (LEFT BRANCH) ) |
| Rear accessory power socket relay | 19 | 4 | |
| S | 5 | 2 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (LEFT BRANCH) ) |
| Starter cut relay | 18 | 4 | |
| T | 7 | 6 | Optional connector |
| Turn signal/hazard relay | 4 | 6 | |
| W | 10 | 5 | Roof wire harness (see ROOF WIRE HARNESS ) |
| X | 1 | 39 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (LEFT BRANCH) ) |
