Under-Hood Fuse/Relay Box

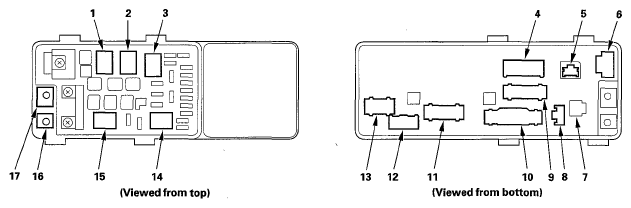

UNDER-HOOD FUSE/RELAY BOX TERMINAL AND SOCKET REFERENCE CHART
| Socket | Ref | Terminal | Connects to |
|---|---|---|---|
| A (ELD unit) | 5 | 3 | Right engine compartment wire harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS ) |
| A/C compressor clutch relay | 2 | 4 | |
| B | 7 | 1 | Right engine compartment wire harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS ) |
| Blower motor relay | 1 | 4 | |
| C | 8 | 2 | Right engine compartment wire harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS ) |
| D | 4 | 9 | Right engine compartment wire harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS ) |
| E | 9 | 16 | Right engine compartment wire harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS ) |
| ETCS control relay | 15 | 4 | |
| F | 10 | 20 | Right engine compartment wire harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS ) |
| G | 6 | 2 | Right engine compartment wire harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS ) |
| H | 11 | 18 | Right engine compartment wire harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS ) |
| Heated windshield wiper area relay | 3 | 4 | |
| J | 13 | 10 | Right engine compartment wire harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS ) |
| K | 12 | 5 | Right engine compartment wire harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS ) |
| Seat heater relay | 14 | 4 | |
| T101 | 16 | Starter cable (see CONNECTOR TO HARNESS INDEX ) | |
| T102 (Alternator) | 17 | Engine wire harness (see ENGINE WIRE HARNESS ) |
