DTC P0711: ATF Temperature Sensor (Range/Performance): Notes

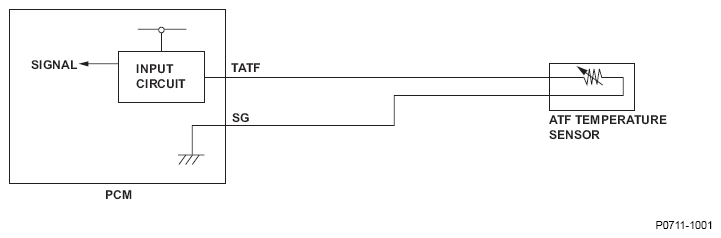

Fig 1: ATF Temperature Sensor (Range/Performance) - Wiring Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.

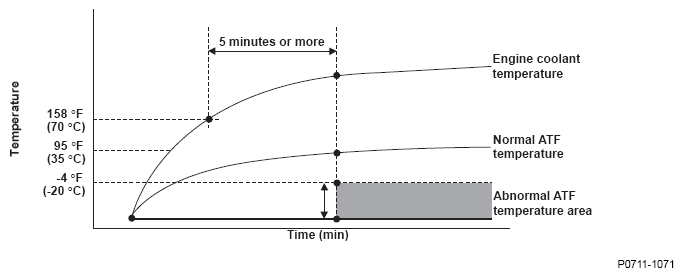

Fig 2: ATF Temperature Sensor (Range/Performance) Graph

Courtesy of AMERICAN HONDA MOTOR CO., INC.
