Fuel Tank Replacement
- Drain the fuel tank (see FUEL TANK DRAINING ).
- Raise the vehicle on a lift (see LIFT AND SUPPORT POINTS
).
- Remove the exhaust pipe (see EXHAUST PIPE AND MUFFLER REPLACEMENT
).
- Remove the propeller shaft (see PROPELLER SHAFT REMOVAL
), and support it with jackstands.

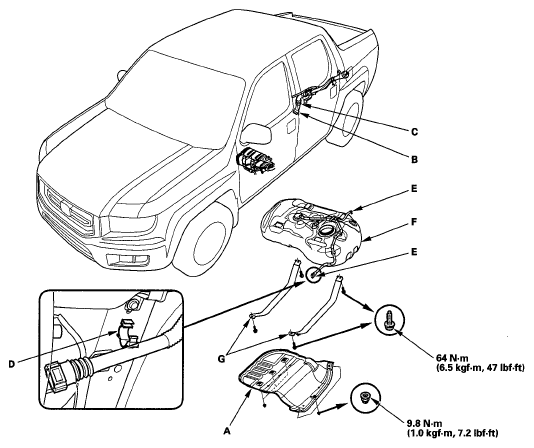

- Remove the fuel tank protector (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Loosen the clamp (B), and disconnect the tube (C).
- Open the clamp (D).
- Disconnect the hoses (E). Slide back the clamps, then twist the hoses as you pull to avoid damaging them.
- Place a jack or other support under the tank (F).
- Remove the strap bolts and the straps (G).
- Remove the fuel tank.
- Install the parts in the reverse order of removal.
