MAF Sensor/IAT Sensor Replacement

  1. Disconnect the MAF sensor/IAT sensor 5P connector (A).

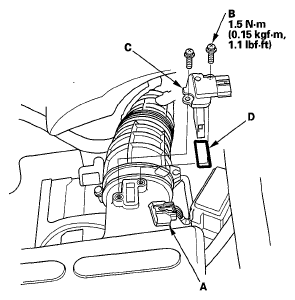

    Fig 1: MAF Sensor/IAT Sensor 5P Connector, Sensor, Screws And O-Ring With Torque Specifications
    G05964536Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the screws (B).
  3. Remove the MAF sensor/IAT sensor (C).
  4. Install the parts in the reverse order of removal with a new O-ring (D).
