Anti-pinch Operation: Notes

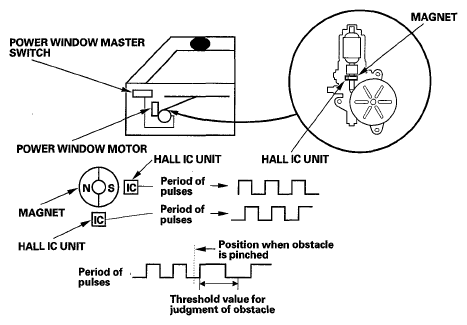

The system is composed of the power window master switch and the driver's power window motor.
The driver's power window motor incorporates a Hall IC unit which generates pulses during the motor's operation and sends the pulses to the driver's power window control unit. As soon as the power window control unit detects a change in the pulses frequency from the Hall IC unit, the driver's power window control unit makes the power window motor stop and reverse. This is prevent pinching your hand of fingers during auto-up operation.
