DTC P0705: Transmission Range Switch (Multiple Shift - Position Input): Notes

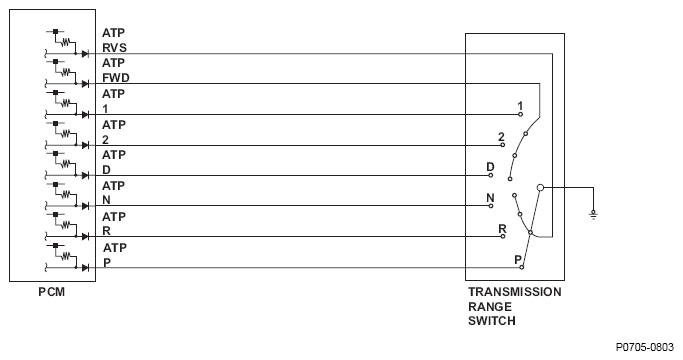

Fig 1: Transmission Range Switch (Multiple Shift - Position Input) - Wiring Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.

TRANSMISSION RANGE SWITCH CONTACT POINT INPUT MATRIX

Shift lever position	Input per switch
	ATPP	ATPR	ATPN	ATPD	ATP2	ATP1	ATP FWD	ATP RVS
P	◦	X	X	X	X	X	X	◦
R	X	◦	X	X	X	X	X	◦
N	X	X	◦	X	X	X	X	◦
D	X	X	X	◦	X	X	◦	X
2	X	X	X	X	◦	X	◦	X
1	X	X	X	X	X	◦	◦	X
◦: Closed X: Open
