Fuel Line Inspection

Check the fuel system lines and hoses for damage, leaks, and deterioration. Replace any damaged parts.

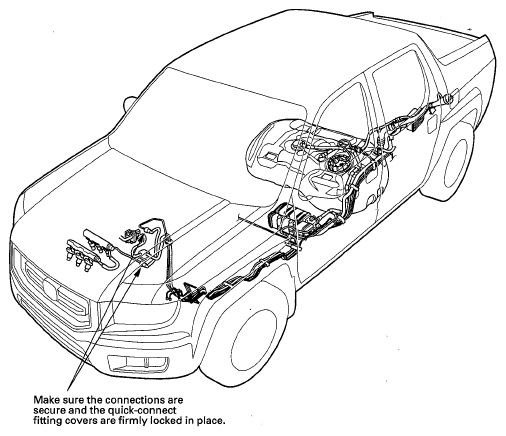

Fig 1: Identifying Fuel System Lines And Hoses

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Check all clamps, and make sure they are properly positioned and tightened.

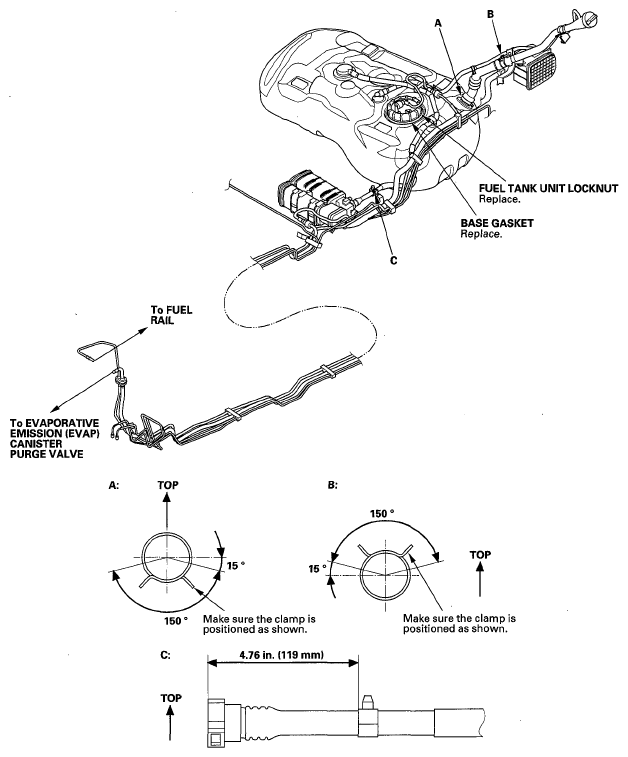

Fig 2: Inspecting Clamps

Courtesy of AMERICAN HONDA MOTOR CO., INC.
