Component Location Index

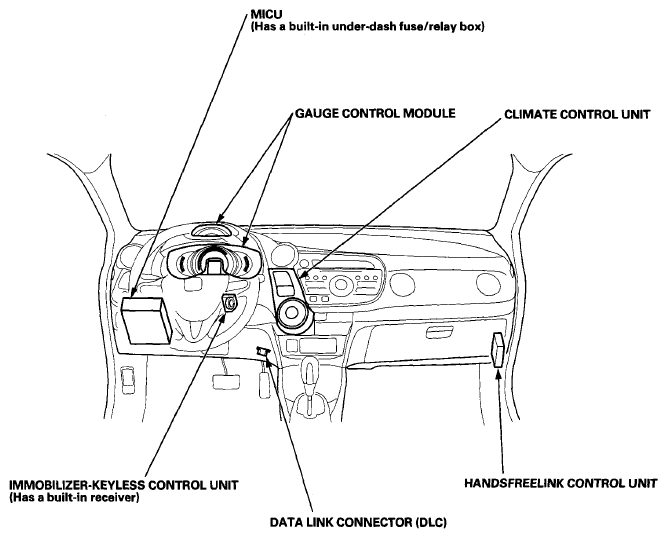

Fig 1: Identifying Multiplex Integrated Control System Component Location
G08094535Courtesy of AMERICAN HONDA MOTOR CO., INC.
