Final Drive Shaft Bearing Replacement

Special Tools Required

• Adjustable Bearing Puller, 25-40 mm 07736-A01000B
• Driver Handle, 15 x 135L 07749-0010000
• Bearing Driver Attachment, 62 x 68 mm 07746-0010500

1. Remove the final drive shaft bearing (A) using the 25-40 mm adjustable bearing puller and a commercially available 3/8"-16 UNF slide hammer (B).
   Fig 1: Removing Final Drive Shaft Bearing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

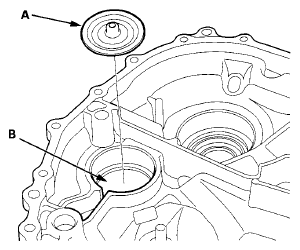

2. Remove the oil guide plate (A), and check the oil guide plate for rust, dirt, wear, or damage, and clean or replace it if necessary. Clean the hole (B) of the flywheel housing, then install the oil guide plate.
   Fig 2: Identifying Oil Guide Plate

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

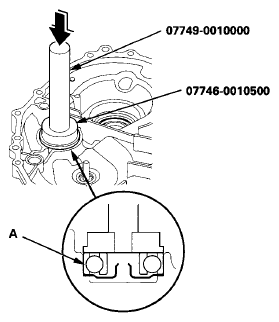

3. Install the new bearing (A) into the flywheel housing using the 15 x 135L driver handle and the 62 x 68 mm bearing driver attachment.
   Fig 3: Installing Bearing Into Flywheel Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
