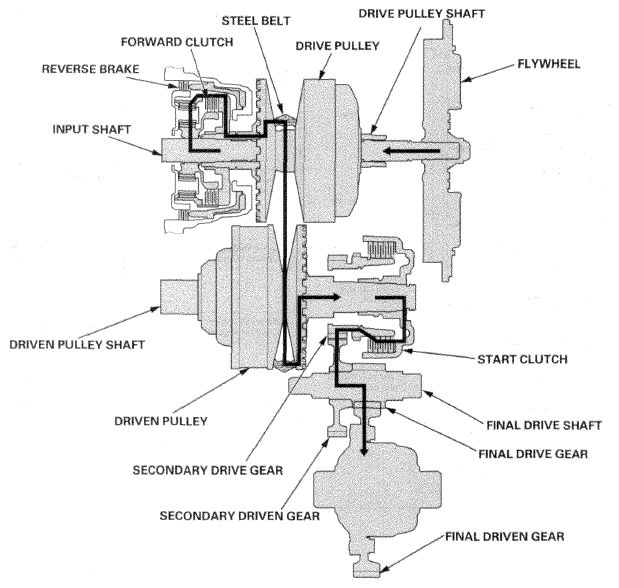

Reverse Range; R position
- Forward clutch: disengage
- Reverse brake: engage
- Start clutch: engage
- Hydraulic pressure is applied to the reverse brake and the start clutch, and the planetary carrier locks with the reverse brake.
- The sun gear drives the planetary pinion gears to rotate, and the planetary pinion gears drive the ring gear in the opposite direction from the rotational direction of the sun gear.
- The ring gear drives the drive pulley shaft via the forward clutch drum, and the drive pulley shaft drives the driven pulley shaft linked by the steel belt,
- The driven pulley shaft drives the secondary drive gear via the start clutch.
- Power is transmitted to the secondary driven gear and the final drive gear, which in turn drives the final driven gear.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
