Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
CVT
>>
System Description
>>
Shift Lock System
>>
Circuit Diagram - PCM CVT Control System-Six-position Transmission
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram - PCM CVT Control System-Six-position Transmission

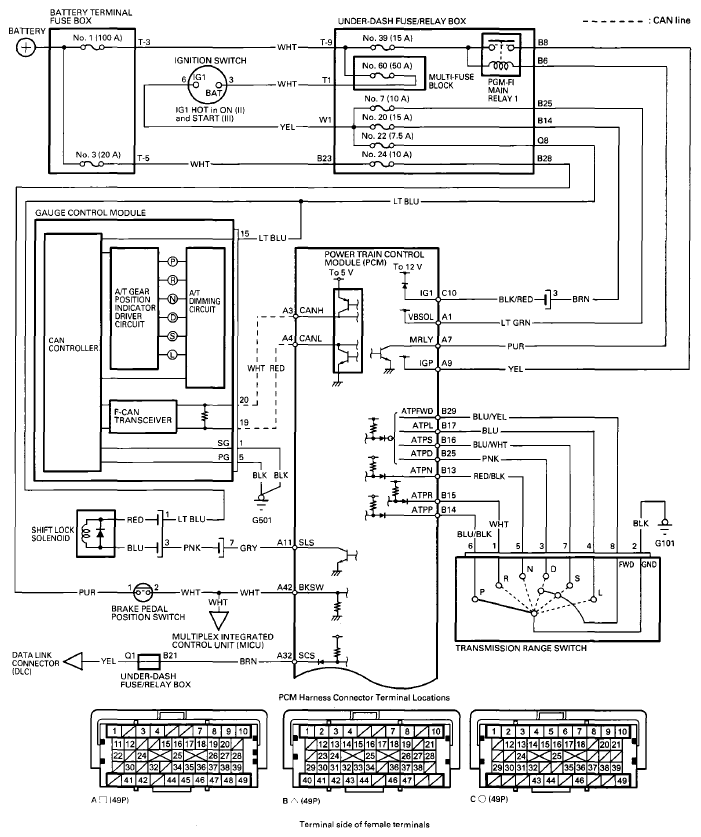

Fig 1: PCM CVT Control System-Six-Position Transmission - Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

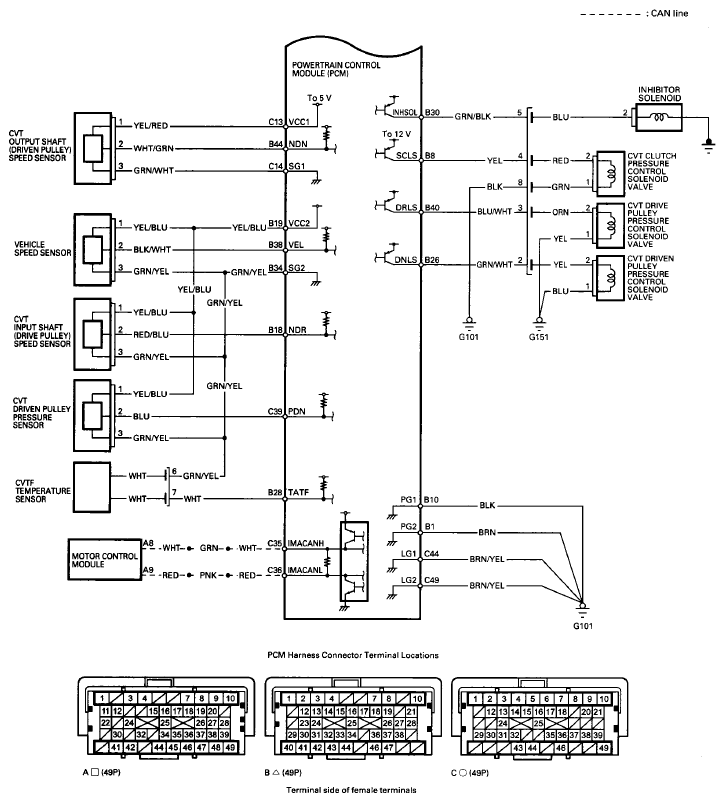

Fig 2: PCM CVT Control System-Six-Position Transmission - Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
