Driver's Door Lock Switch Test

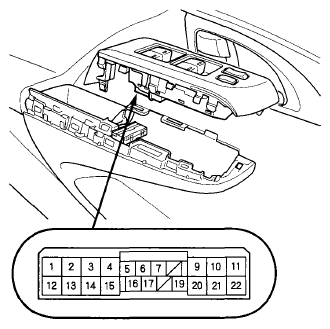

- Remove the power window master switch, and disconnect its connector (see
POWER WINDOW MASTER SWITCH REPLACEMENT
).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Check for continuity between the power window master switch 22P connector terminals.
- There should be continuity between terminals No. 12 and No. 17 when the driver's door lock switch is in the LOCK position.
- There should be no continuity between the terminals No. 12 and No. 17 when the driver's door lock switch is in the neutral or UNLOCK position.
- There should be continuity between the terminals No. 12 and No. 19 when the driver's door lock switch is in the UNLOCK position.
- There should be no continuity between the terminals No. 12 and No. 19 when the driver's door lock switch is in the neutral or LOCK position.
- There should be no continuity between terminals No. 19 and No. 17 when the driver's door lock switch is in the neutral position.
- If the continuity is not as specified, the switch is faulty; replace the power window master switch (see
POWER WINDOW MASTER SWITCH REPLACEMENT
).
