Rear Passenger's Power Window Motor Test

Remove the rear passenger's power window switch (see PASSENGER'S POWER WINDOW SWITCH REPLACEMENT ).
Test the motor in each direction by connecting battery power and ground to the rear passenger's power window switch 8P connector according to the table.

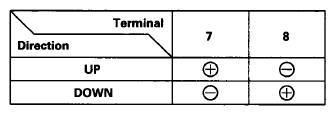

Fig 1: Rear Passenger's Power Window Switch 8P Connector Terminal Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.

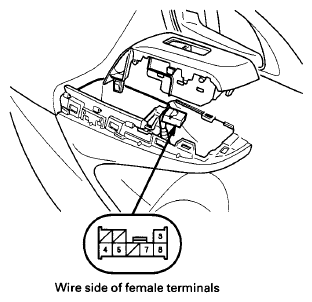

Fig 2: Identifying Rear Passenger's Power Window Switch 8P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the motor does not run or fails to run smoothly, go to step 4. If the motor is OK, do the power window master switch input test (see POWER WINDOW MASTER SWITCH INPUT TEST ).
Disconnect the 2P connector (A) from the rear passenger's power window motor (B).

Fig 3: Identifying Rear Passenger's Power Window Motor And 2P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Check for continuity between the rear passenger's power window switch 8P connector terminals and the rear passenger's power window motor 2P connector terminals as shown. There should be continuity.

Rear passenger's power window switch 8P connector	Rear passenger's power window motor 2P connector
7 (GRY [YEL])	2 (GRY [YEL])
8 (LT GRN [GRN])	1 (LT GRN [GRN])
[]: Right side

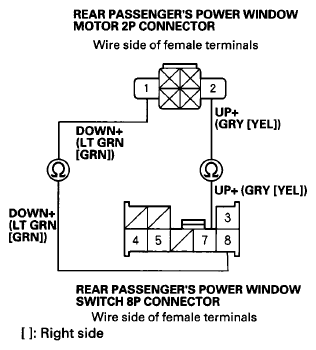

Fig 4: Checking Continuity Between Rear Passenger's Power Window Switch 8P Connector Terminals And Motor 2P Connector Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

If the wire harness is OK, replace the rear passenger's power window motor (see REAR DOOR GLASS AND REGULATOR REPLACEMENT ).
