Drain Bolt/Sealing Bolt Installation
NOTE:
When installing the drain bolt and/or sealing bolt, always use a new washer.

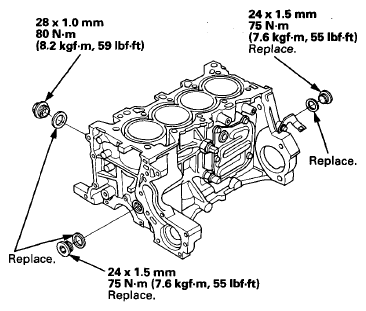

Fig 1: Drain Bolt And/Or Sealing Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
