CVT Output Shaft (Driven Pulley) Speed Sensor Replacement

Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).
Disconnect the CVT output shaft (driven pulley) speed sensor 3P connector (A), then remove the CVT output shaft (driven pulley) speed sensor (B).

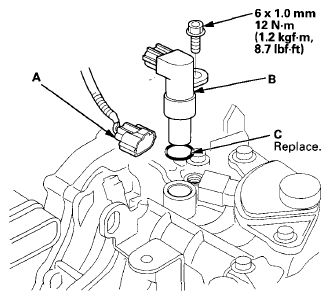

Fig 1: O-Ring On CVT Output Shaft (Driven Pulley) Speed Sensor With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install a new O-ring (C) on a new CVT output shaft (driven pulley) speed sensor, then install the CVT output shaft (driven pulley) speed sensor in the transmission housing.
Check the connector for rust, dirt, or oil, and clean or repair if necessary then connect the connector securely.
Install the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).
