VSA cannot be turned OFF
- Turn the ignition switch to LOCK (0).
- Check the VSA OFF switch (see VSA OFF SWITCH TEST/REPLACEMENT
).
Is the VSA OFF switch OK?
YES -Go to step 3.
NO -Replace the VSA OFF switch (see VSA OFF SWITCH TEST/REPLACEMENT ).
- Disconnect the VSA OFF switch 5P connector (see VSA OFF SWITCH TEST/REPLACEMENT ).
- Disconnect the gauge control module 32P connector (see GAUGE CONTROL MODULE REPLACEMENT ).

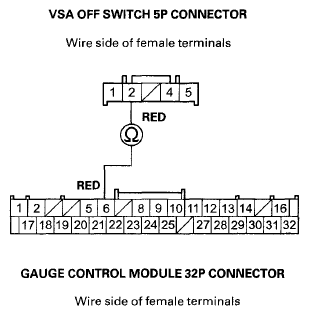

- Check for continuity between gauge control module 32P connector terminals No. 6 and VSA OFF switch 5P connector terminal No. 2.Fig 1: Checking Continuity Between Gauge Control Module 32P Connector Terminals No. 6 And VSA OFF Switch 5P Connector Terminal No. 2
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
YES -Go to step 6.
NO -Repair an open in the wire between the gauge control module and the VSA OFF switch.
- Check for continuity between VSA OFF switch 5P connector terminal No. 2 and body ground.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
YES -Repair a short to body ground in the wire between the gauge control module and the VSA OFF switch.
NO -Go to step 7.
- Check for continuity between VSA OFF switch 5P connector terminal No. 1 and body ground.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
YES -Substitute a known-good gauge control module (see GAUGE CONTROL MODULE REPLACEMENT ), and recheck. If it is OK, replace the gauge control module (see GAUGE CONTROL MODULE REPLACEMENT ).
NO -Repair an open in the wire between the VSA OFF switch and body ground (G401).
