PCM Circuit Diagram

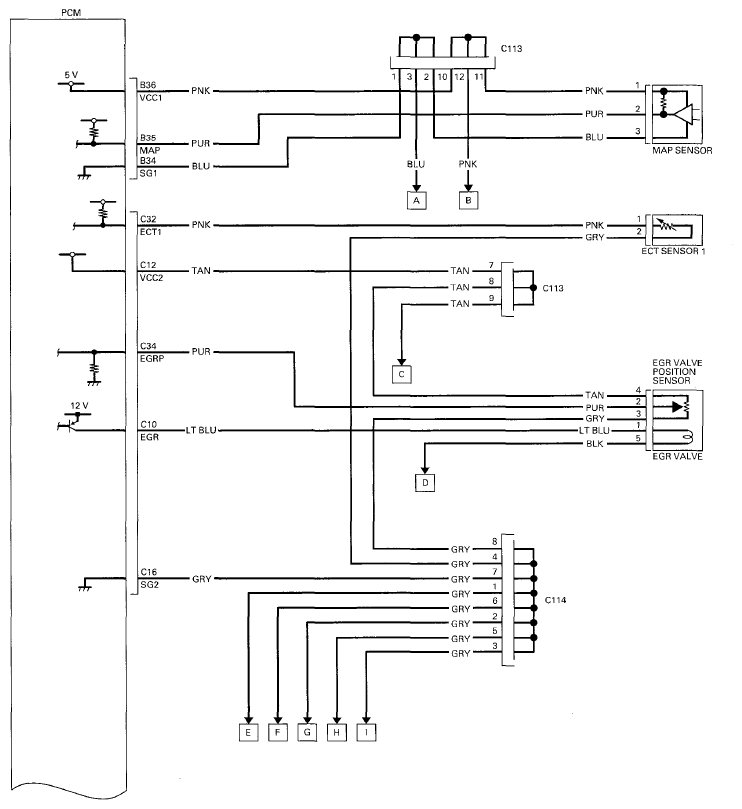

Fig 1: PCM Circuit Diagram (1 Of 16)

G08078961

Courtesy of AMERICAN HONDA MOTOR CO., INC.

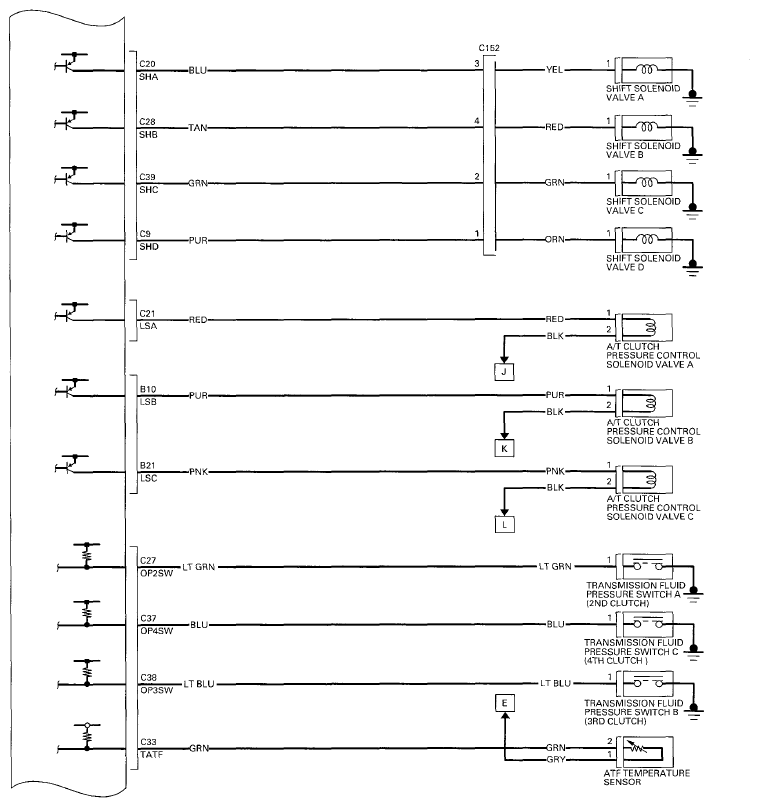

Fig 2: PCM Circuit Diagram (2 Of 16)

G08078962

Courtesy of AMERICAN HONDA MOTOR CO., INC.

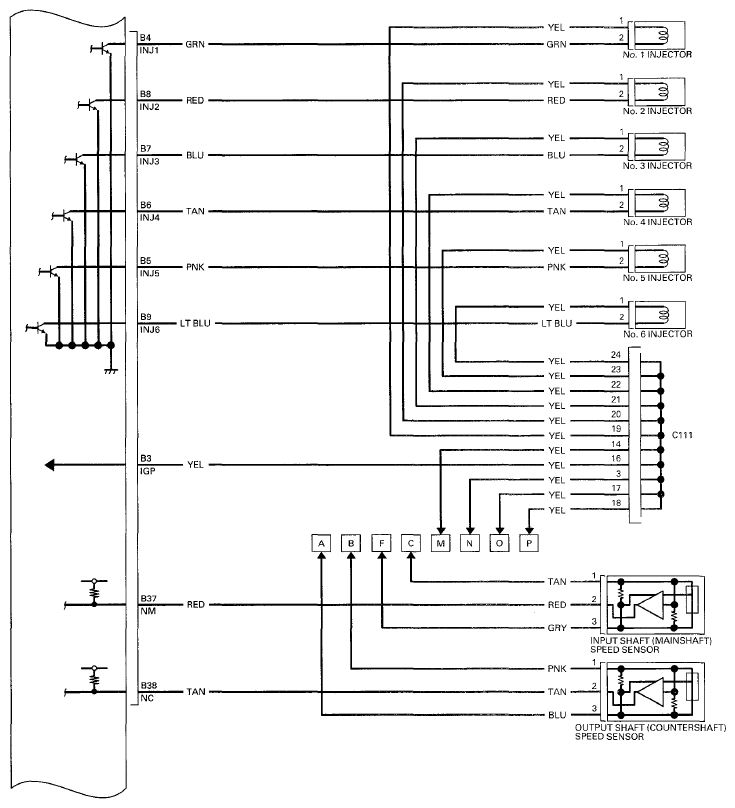

Fig 3: PCM Circuit Diagram (3 Of 16)

G08078963

Courtesy of AMERICAN HONDA MOTOR CO., INC.

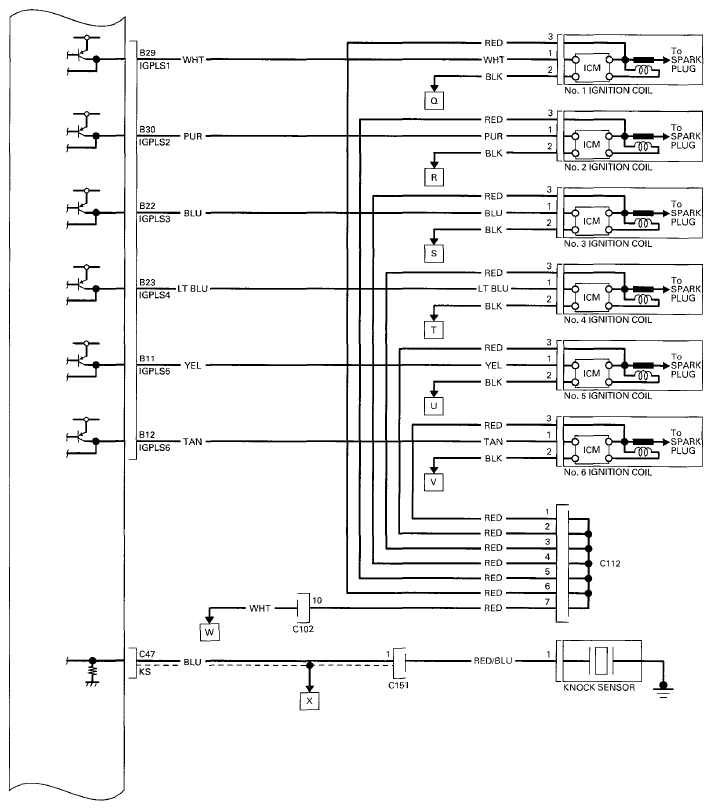

Fig 4: PCM Circuit Diagram (4 Of 16)

G08078964

Courtesy of AMERICAN HONDA MOTOR CO., INC.

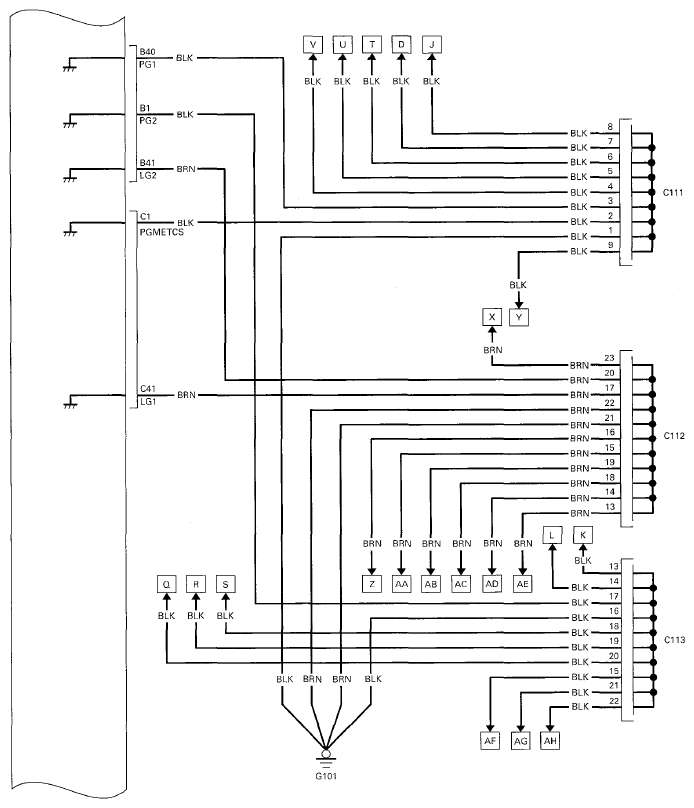

Fig 5: PCM Circuit Diagram (5 Of 16)

G08078965

Courtesy of AMERICAN HONDA MOTOR CO., INC.

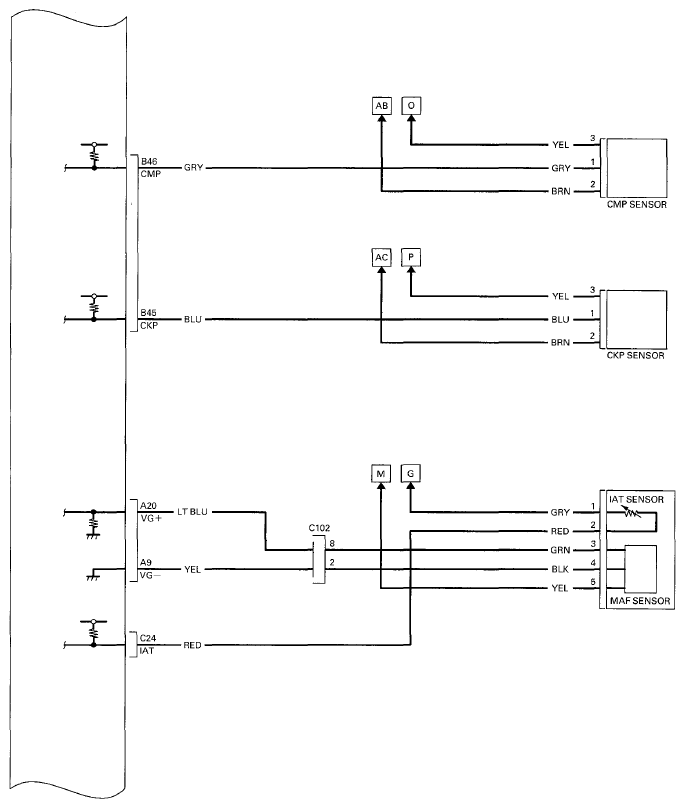

Fig 6: PCM Circuit Diagram (6 Of 16)

G08078966

Courtesy of AMERICAN HONDA MOTOR CO., INC.

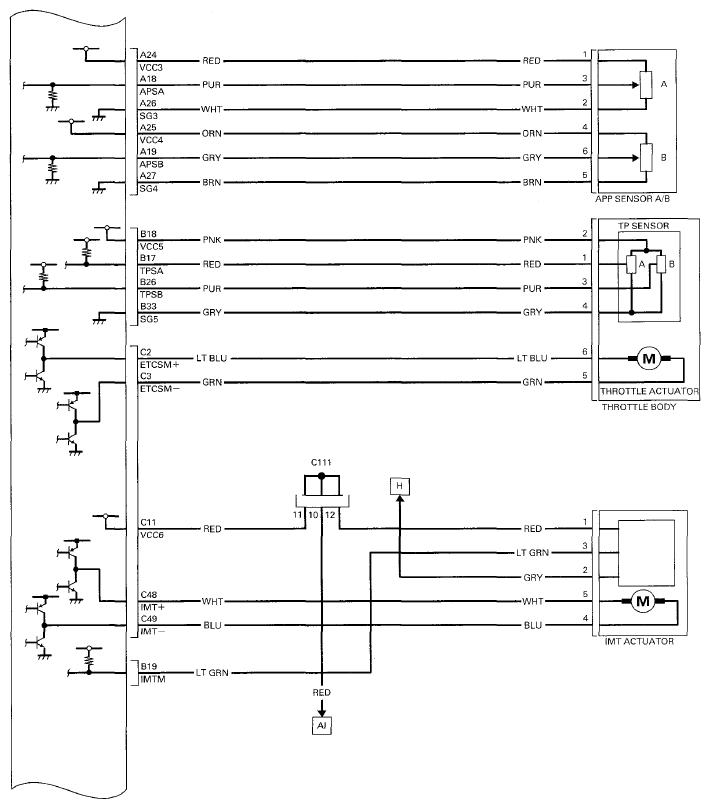

Fig 7: PCM Circuit Diagram (7 Of 16)

G08078967

Courtesy of AMERICAN HONDA MOTOR CO., INC.

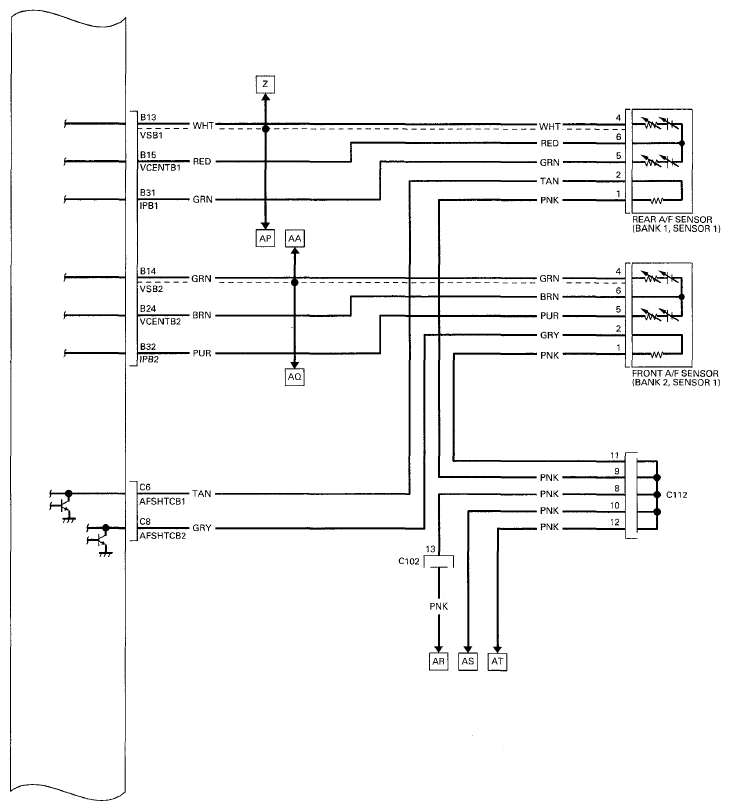

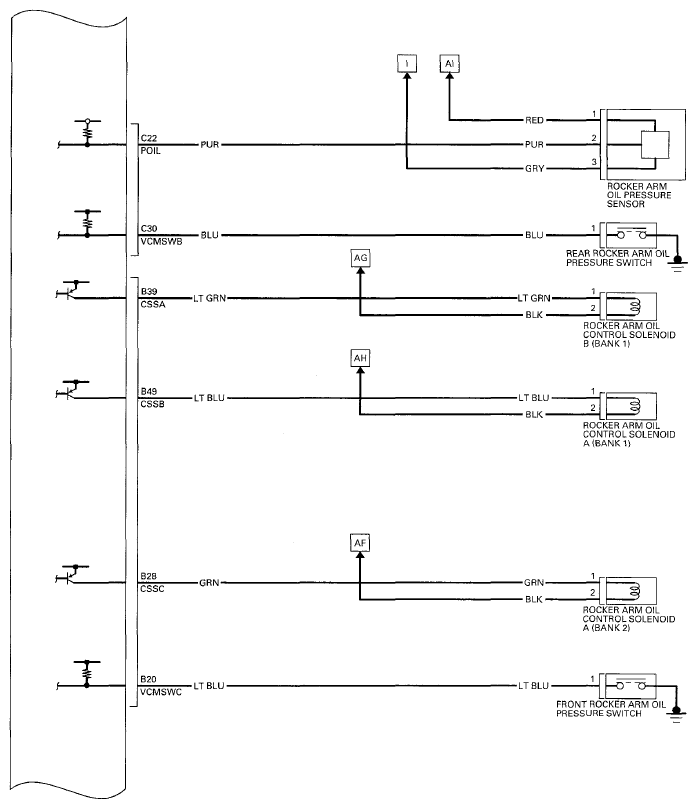

Fig 8: PCM Circuit Diagram (8 Of 16)

G08078968

Courtesy of AMERICAN HONDA MOTOR CO., INC.

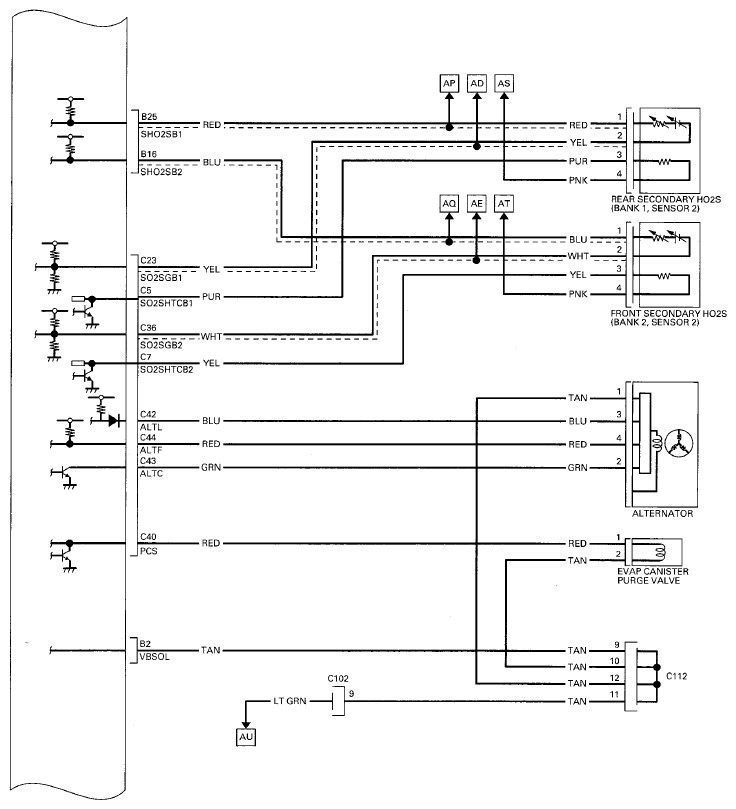

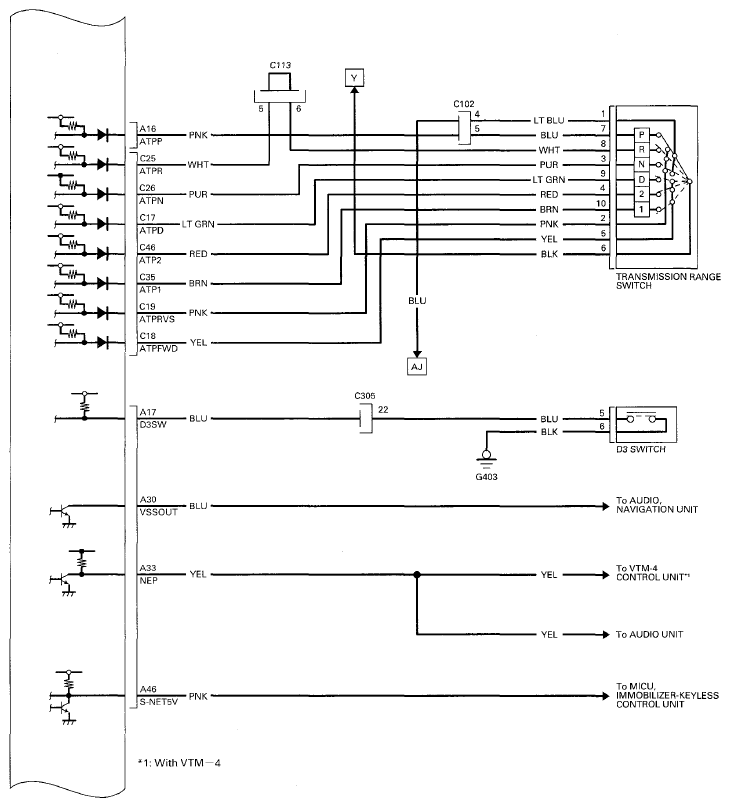

Fig 9: PCM Circuit Diagram (9 Of 16)

G08078969

Courtesy of AMERICAN HONDA MOTOR CO., INC.

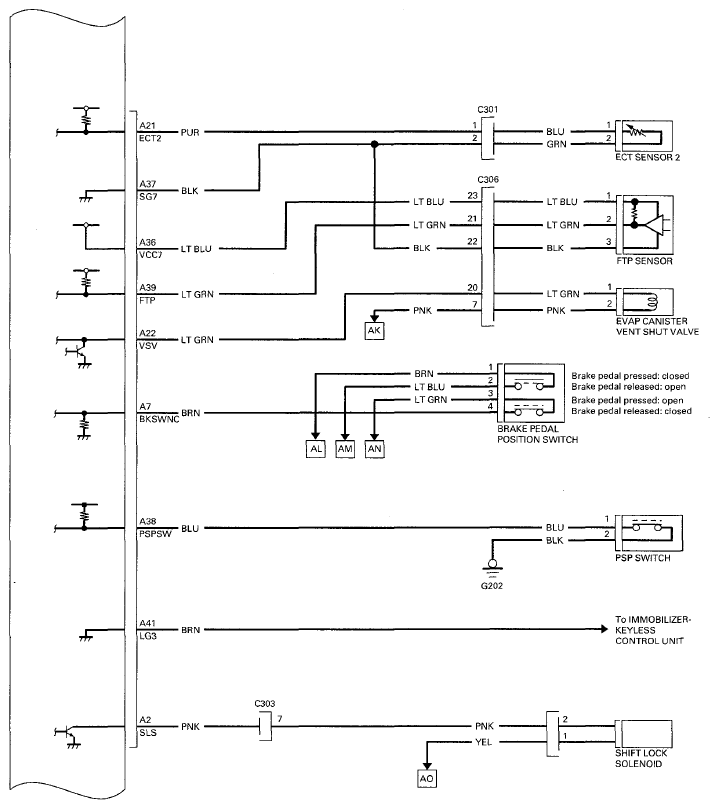

Fig 10: PCM Circuit Diagram (10 Of 16)

G08078970

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 11: PCM Circuit Diagram (11 Of 16)

G08078971

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 12: PCM Circuit Diagram (12 Of 16)

G08078972

Courtesy of AMERICAN HONDA MOTOR CO., INC.

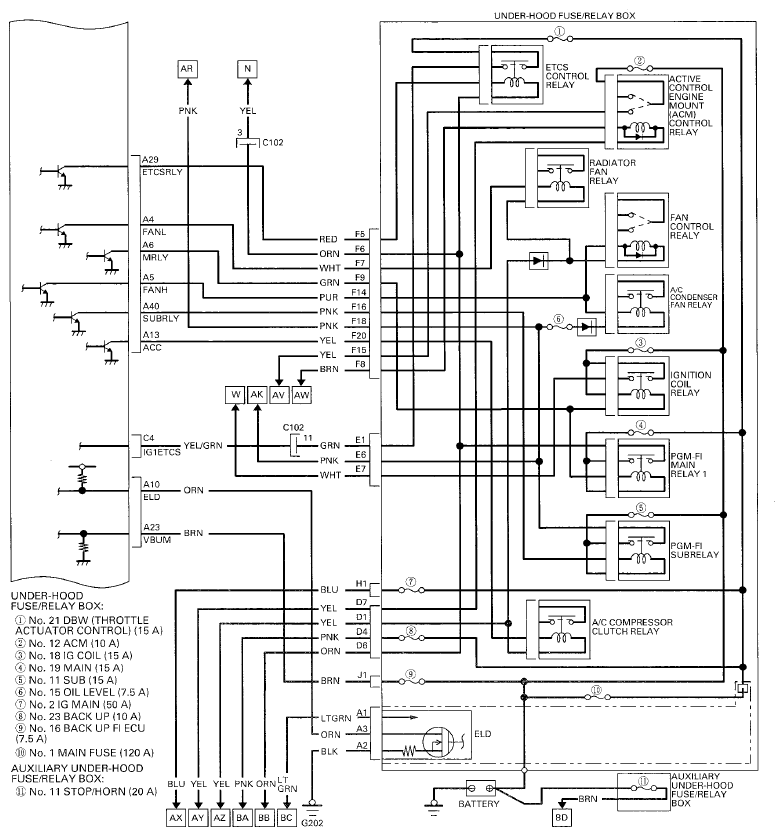

Fig 13: PCM Circuit Diagram (13 Of 16)

G08078973

Courtesy of AMERICAN HONDA MOTOR CO., INC.

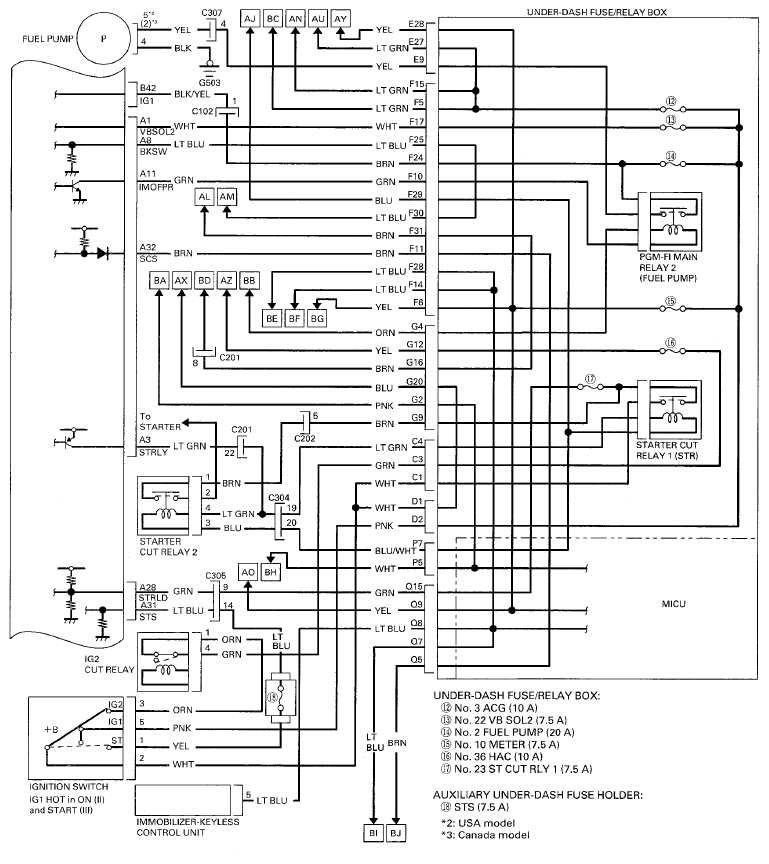

Fig 14: PCM Circuit Diagram (14 Of 16)

G08078974

Courtesy of AMERICAN HONDA MOTOR CO., INC.

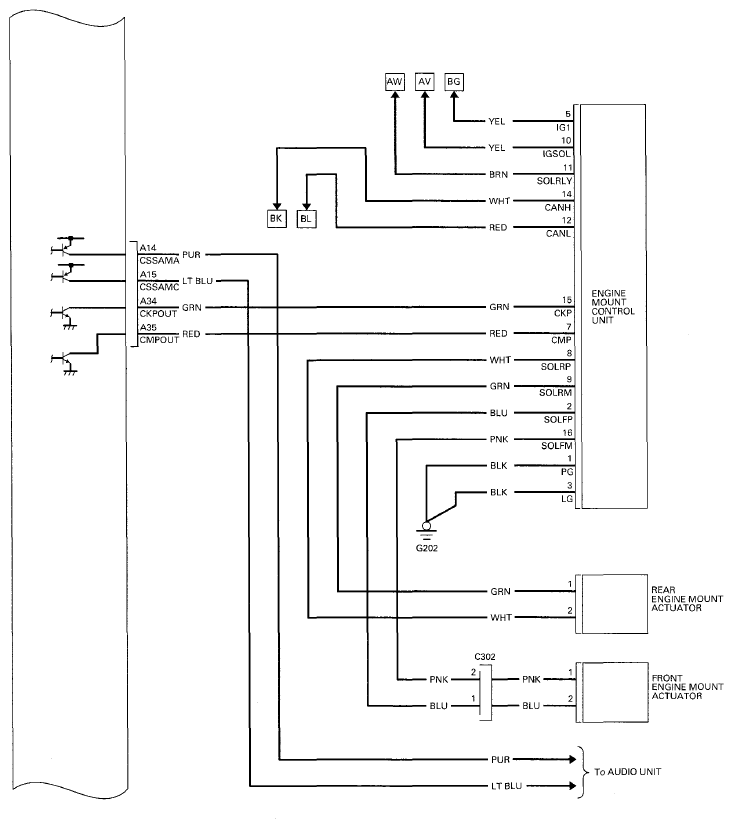

Fig 15: PCM Circuit Diagram (15 Of 16)

G08078975

Courtesy of AMERICAN HONDA MOTOR CO., INC.

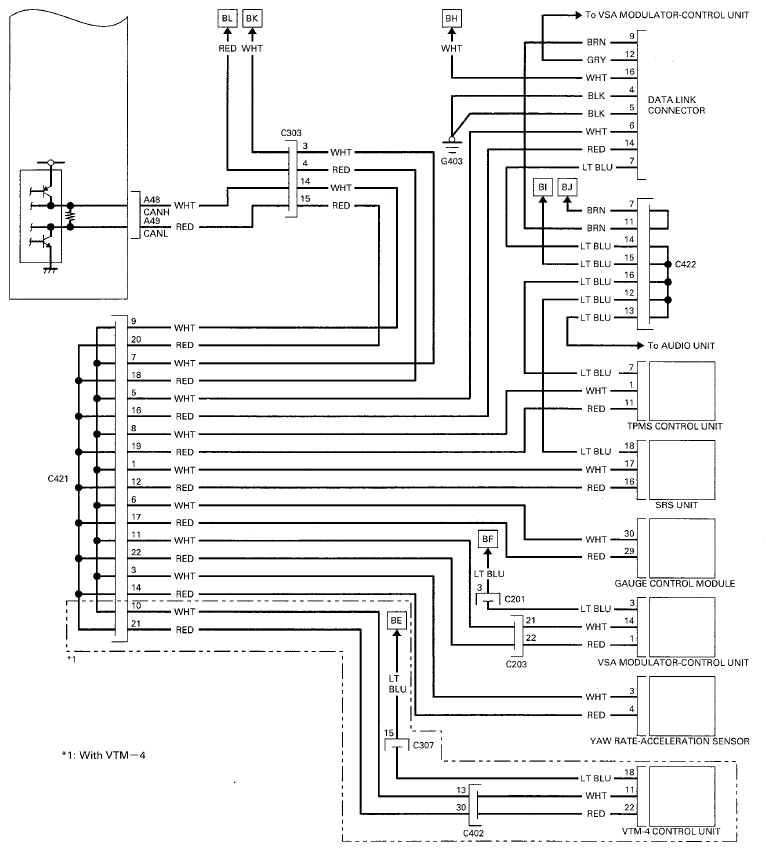

Fig 16: PCM Circuit Diagram (16 Of 16)

G08078976

Courtesy of AMERICAN HONDA MOTOR CO., INC.
