Driving Position Memory Switch Test/Replacement

Remove the driver's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
Disconnect the 10P connector (A) from the driving position memory switch (B).

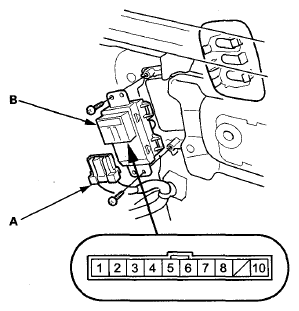

Fig 1: Identifying Driving Position Memory Switch And 10P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the two screws, then remove the switch from the door panel.
Check for continuity between the terminals in each switch position according to the table.
NOTE:
- Make sure the correct test lead (+ or -) is placed on the terminal.
- When checking for continuity across the diode, use the diode setting (→|--) on the digital volt/ohm meter to check the diode bias.
- Be careful of this characteristic; a diode is one that conducts fully in one direction (forward) and not at all in the opposite direction (reverse).

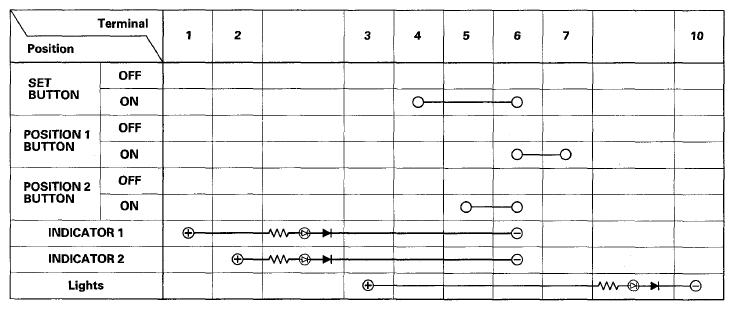

Fig 2: DPMS 10P Connector Terminals Continuity Reference Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the switch.
