Power Window Master Switch Replacement

Carefully remove the power window switch panel (A). A-

Fig 1: Identifying Power Window Switch Panel, 37P Connector And 13P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the 37P connector (B) from the power window master switch, and the 13P connector (C) from the power mirror switch.
Remove the four screws and the power window master switch (A).

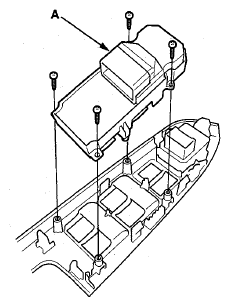

Fig 2: Identifying Power Window Master Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the switch in the reverse order of removal.
Reset the power window control unit (see RESETTING THE POWER WINDOW CONTROL UNIT ).
