Yaw Rate-Acceleration Sensor Replacement

NOTE:
  • Do not damage or drop the sensor as it is sensitive.
  • Do not use power tools.
  1. Turn the ignition switch to LOCK (0).
  2. Remove the driver's center console trim (see step 2 under CENTER CONSOLE REMOVAL/INSTALLATION ).
  3. Remove the yaw rate-acceleration sensor (A) mounting bolts.

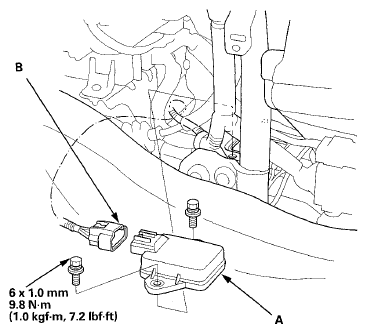

    Fig 1: Yaw Rate-Acceleration Sensor And 5P Connector With Torque Specifications
    G08088466Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Disconnect the yaw rate-acceleration sensor 5P connector (B).
  5. Install the yaw rate-acceleration sensor in the reverse order of removal.
  6. Do the VSA sensor neutral position memorization (see VSA SENSOR NEUTRAL POSITION MEMORIZATION  ).
