DTC P15C0: CKP Sensor Signal Intermittent Interruption: Notes

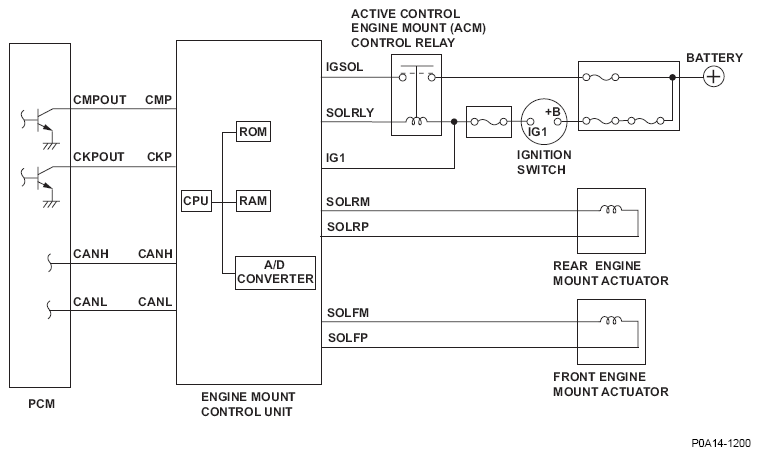

Fig 1: Engine Mount Actuator - Circuit Diagram
G08568989Courtesy of AMERICAN HONDA MOTOR CO., INC.
