FTP Sensor Replacement

Raise the vehicle on a lift.
Remove the EVAP canister cover (see step 2 under EVAP Canister Replacement ).
Disconnect the FTP sensor connector (A).

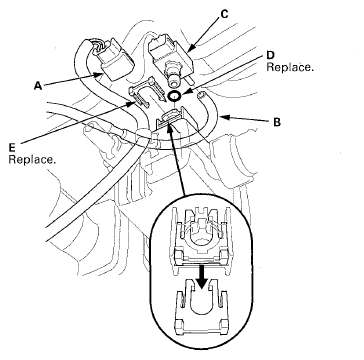

Fig 1: Disconnecting FTP Sensor Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the hose (B), and remove the FTP sensor (C).
Install the parts in the reverse order of removal with a new O-ring (D) and a new retainer (E).
NOTE: Do not coat the O-ring with oil.
