Special Tools

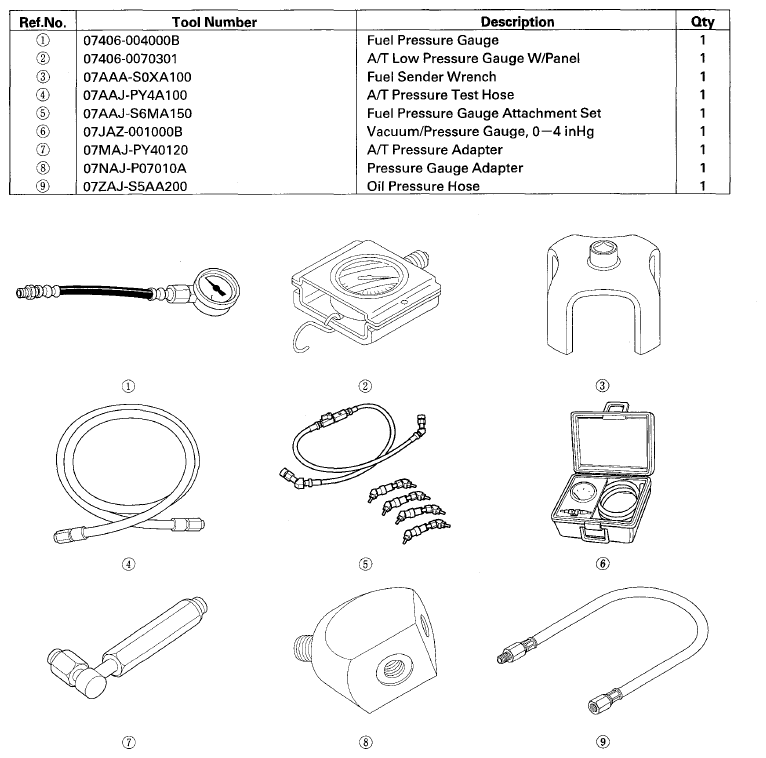

Fig 1: Identifying Fuel And Emissions Systems Special Tools
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
