Intake Air Resonator Removal/Installation

  1. Do the battery removal procedure (see BATTERY REMOVAL AND INSTALLATION ).
  2. Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION  ).
  3. Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
  4. Remove the seal (A).

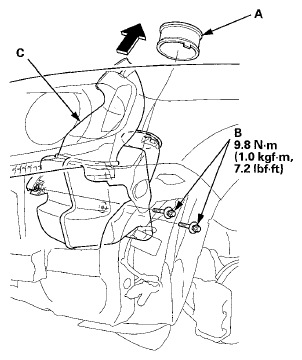

    Fig 1: Intake Air Resonator With Torque Specifications
    G08079448Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the bolts (B), then remove the intake air resonator (C) from the engine compartment.
  6. Install the parts in the reverse order of removal.
  7. Do the battery installation procedure (see BATTERY REMOVAL AND INSTALLATION ).
