Front Passenger's Power Window Motor Test

Motor Test

1. Remove the front passenger's power window switch (see FRONT PASSENGER'S POWER WINDOW SWITCH REPLACEMENT  ).
2. Test the motor in each direction by connecting battery power and ground to the front passenger's power window switch 37P connector (A) according to the table.

   Terminal	12	24
   Direction
   UP	(+)	(-)
   DOWN	(-)	(+)

   Fig 1: Identifying Front Passenger's Power Window Switch 37P Connector

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. If the motor does not run or fails to run smoothly, go to step 4, if the motor runs smoothly, go to step  9.
4. Remove the door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
5. Disconnect the 6P connector (A) from the front passenger's power window motor (B).
   Fig 2: Identifying 6P Connector And Front Passenger's Power Window Motor

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Check for continuity between front passenger's power window switch 37P connector terminals No. 12 and No. 24 and front passenger's power window motor 6P connector terminals No. 1 and No. 4 respectively. There should be continuity.

   FRONT PASSENGER'S POWER WINDOW SWITCH 37P CONNECTOR

   Terminal No. 12

   Terminal No. 24

   FRONT PASSENGER'S POWER WINDOW MOTOR 6P CONNECTOR

   Terminal No. 4

   Terminal No. 1

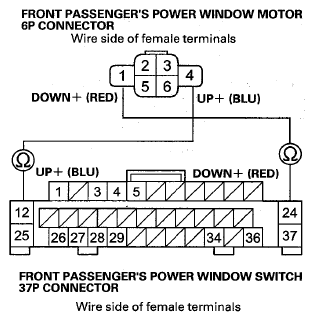

   Fig 3: Checking Continuity Between Front Passenger's Power Window Switch 37P Connector Terminals And Front Passenger's Power Window Motor 6P Connector Terminals

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
7. If there is no continuity, repair an open or high resistance in the wires. If the wire harness in OK, replace the front passenger's power window motor (see FRONT DOOR GLASS AND REGULATOR REPLACEMENT ).

   Hall IC unit (Pulser) Test

8. Check for continuity between front passenger's power window motor 6P connector terminal No. 2 and body ground. There should be continuity.
   • If there is continuity, go to step 9.
   • If there is no continuity, check for an open or high resistance in the BLK wire or poor ground (G404).
     Fig 4: Checking Continuity Between Front Passenger's Power Window Motor 6P Connector Terminal No. 2 And Body Ground

     Courtesy of AMERICAN HONDA MOTOR CO., INC.
9. Do the front passenger's power window switch input test at terminals No. 26, No. 27, No. 28, and No. 36 (see FRONT PASSENGER'S POWER WINDOW SWITCH INPUT TEST  ).
