Circuit Diagram

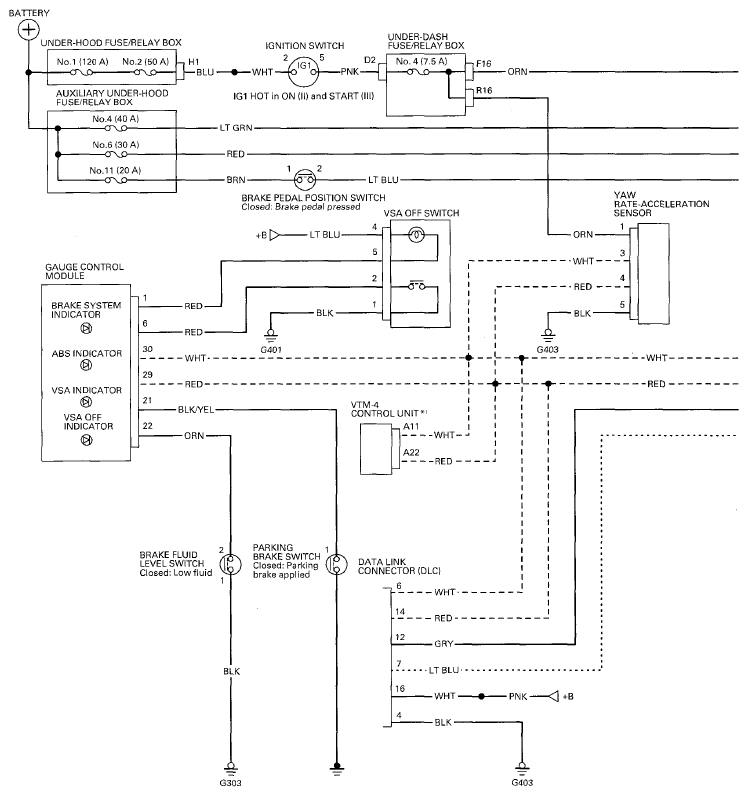

Fig 1: VSA System - Circuit Diagram (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

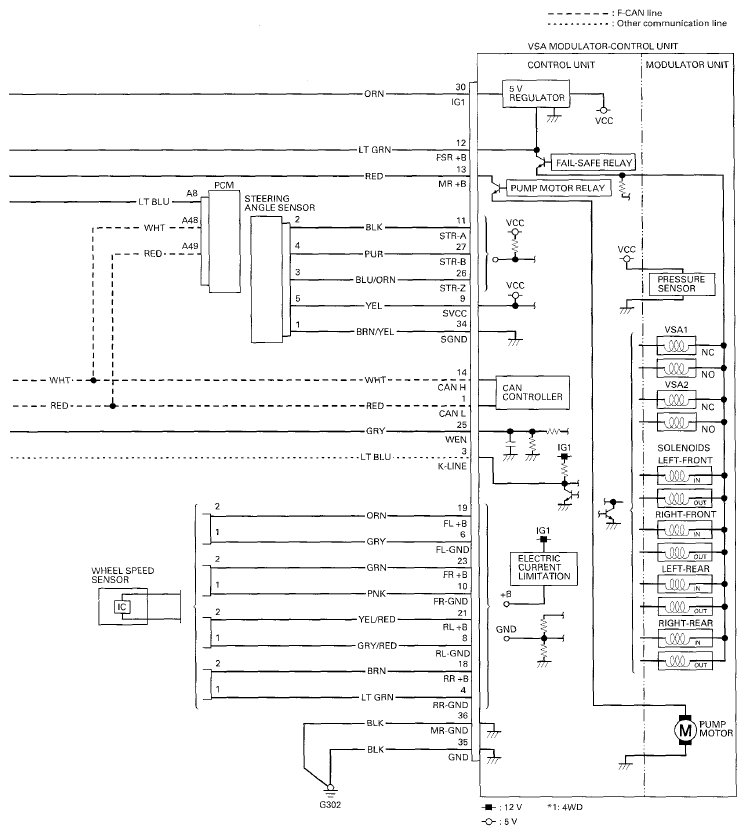

Fig 2: VSA System - Circuit Diagram (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

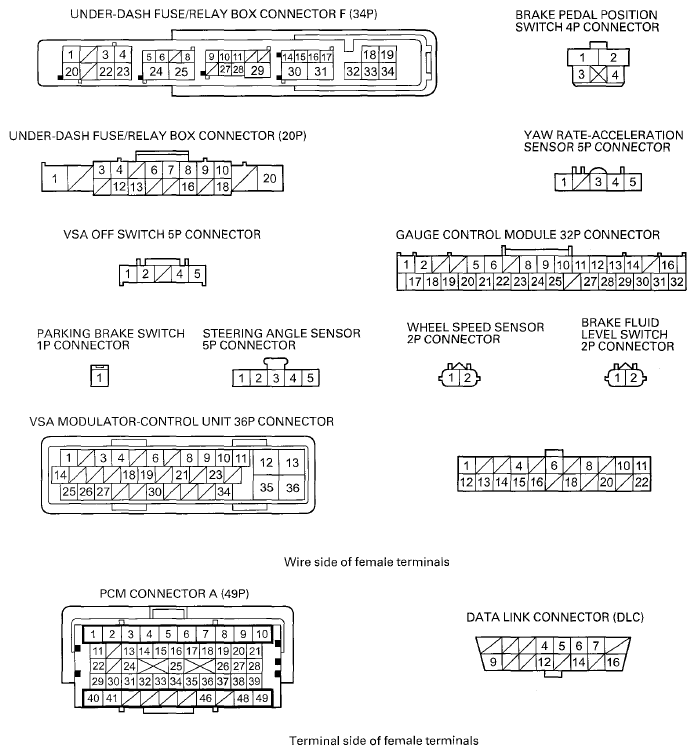

Fig 3: Identifying VSA Connector Terminal Identification

Courtesy of AMERICAN HONDA MOTOR CO., INC.
