VSA Modulator-Control Unit Removal and Installation: Installation

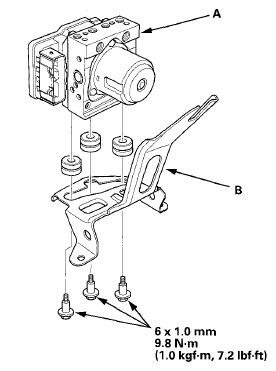

Install the VSA modulator-control unit (A) onto the bracket (B).

Fig 1: VSA Modulator-Control Unit And Bracket With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

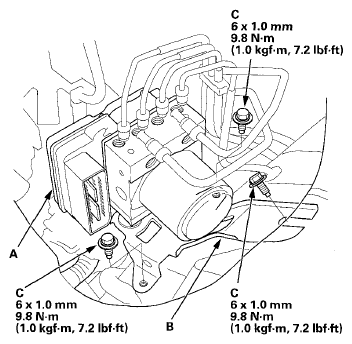

Install the VSA modulator-control unit (A) with the bracket (B) to the body, then install the VSA modulator-control unit bracket mounting bolts (C).

Fig 2: Bracket, VSA Modulator-Control Unit Bracket And Mounting Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

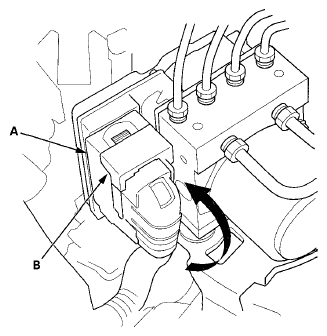

Align the connecting surface of the VSA modulator-control unit 36P connector (A) to the VSA modulator-control unit.

Fig 3: Connecting VSA Modulator-Control Unit 36P Connector To VSA Modulator-Control Unit
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Pull up the lever (B) of the VSA modulator-control unit 36P connector, then confirm the connector is fully seated.

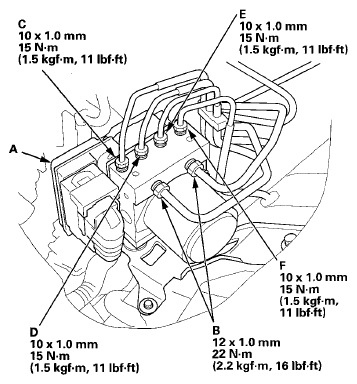

Connect the 10 mm brake lines and the 12 mm brake lines to the VSA modulator-control unit (A).
NOTE: Brake lines are connected to the master cylinder (B), the right-front (C), the left-rear (D), the right-rear (E), and the left-front (F) brake systems.

Fig 4: VSA Modulator-Control Unit, Master Cylinder, Right-Front, Left-Rear, Right-Rear And Left-Front With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the air cleaner (see THROTTLE BODY CLEANING ).
Bleed the brake system (see BRAKE SYSTEM BLEEDING ).
Do the VSA modulator-control unit update (see VSA MODULATOR-CONTROL UNIT UPDATE ).
Do the VSA sensor neutral position memorization procedure (see VSA SENSOR NEUTRAL POSITION MEMORIZATION ).
