Wheel Speed Sensor Replacement: Rear

Turn the ignition switch to LOCK (0).
Release the clamp (A), then disconnect the wheel speed sensor connector (B).

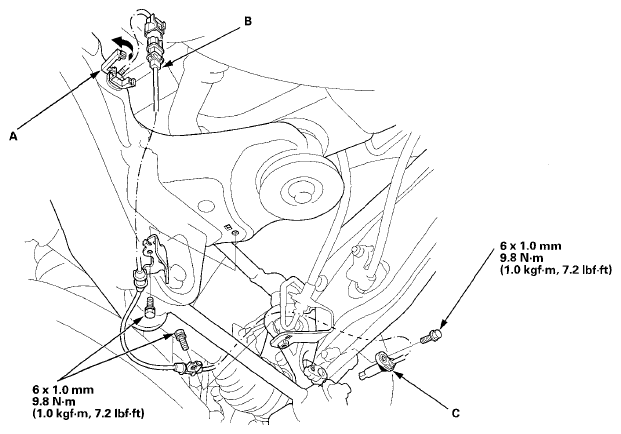

Fig 1: Wheel Speed Sensor Connector With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolts and the wheel speed sensor (C).
Install the wheel speed sensor in the reverse order of removal, and note these items:
- Do not twist the sensor wires.
- If the wheel speed sensor comes in contact with the hub bearing unit, it is faulty.
- Make sure there is no debris in the sensor mounting hole.
