DTC P0731: 1st Gear Incorrect Ratio
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC P0731: 1st Gear Incorrect Ratio: Notes

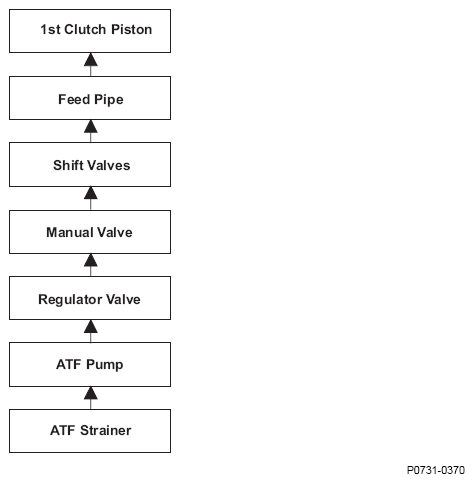

Fig 1: 1st Gear Shifting Pattern
Courtesy of AMERICAN HONDA MOTOR CO., INC.

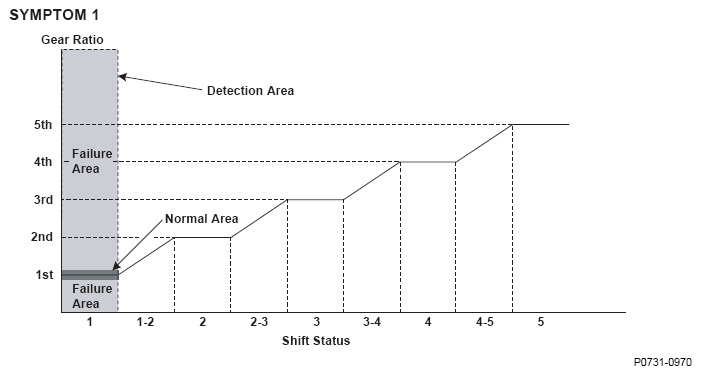

Fig 2: Gear Ratio Versus 1st Gear Shifting Status Graph (Symptom 1)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

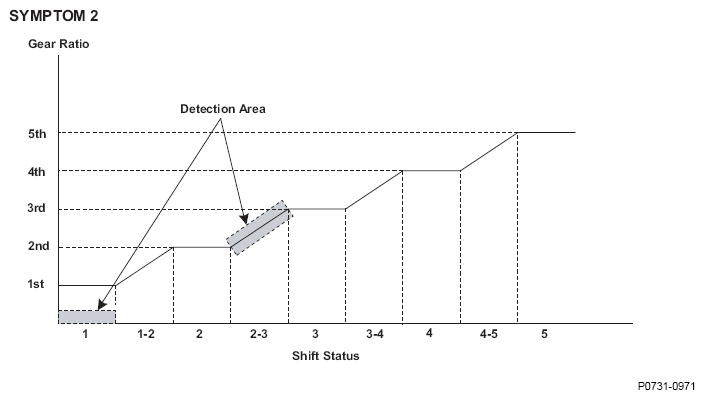

Fig 3: Gear Ratio Versus 1st Gear Shifting Status Graph (Symptom 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
