DTC P16C5: Engine Mount Actuator Control Power Circuit Stuck ON: Notes

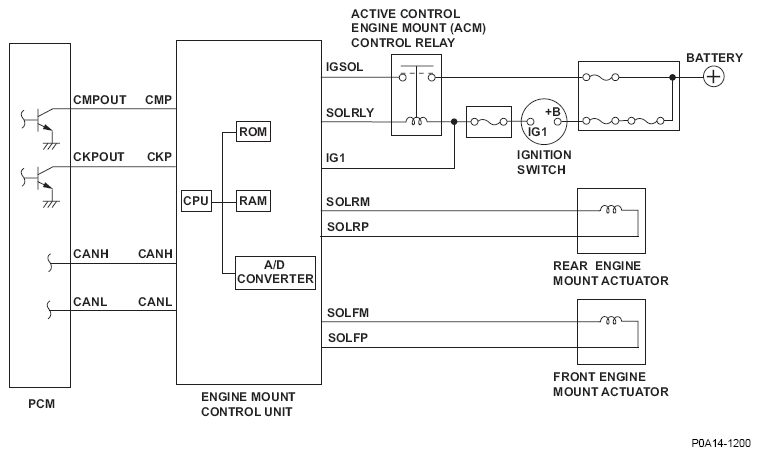

Fig 1: Engine Mount Actuator - Circuit Diagram
G08569001Courtesy of AMERICAN HONDA MOTOR CO., INC.
