Fuel Pressure Regulator Replacement
- Remove the fuel tank unit (see FUEL TANK UNIT REMOVAL AND INSTALLATION
).

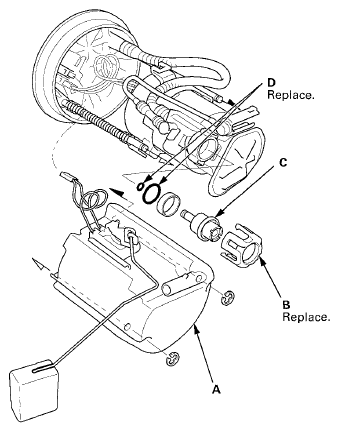

- Remove the reservoir (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the bracket (B).
- Remove the fuel pressure regulator (C).
- Install the parts in the reverse order of removal with new O-rings (D) and new bracket. When installing the fuel tank unit, align the marks on the fuel tank unit and the fuel tank (see INSTALLATION
).
NOTE:
- Do not coat the tank unit base gasket with engine oil.
- Coat the O-rings with clean engine oil; do not use any other oils or fluids.
- Do not pinch the O-rings during installation.
- Use all the new parts supplied in the pressure regulator replacement kit.
