Exploded View

  1. Intake Manifold

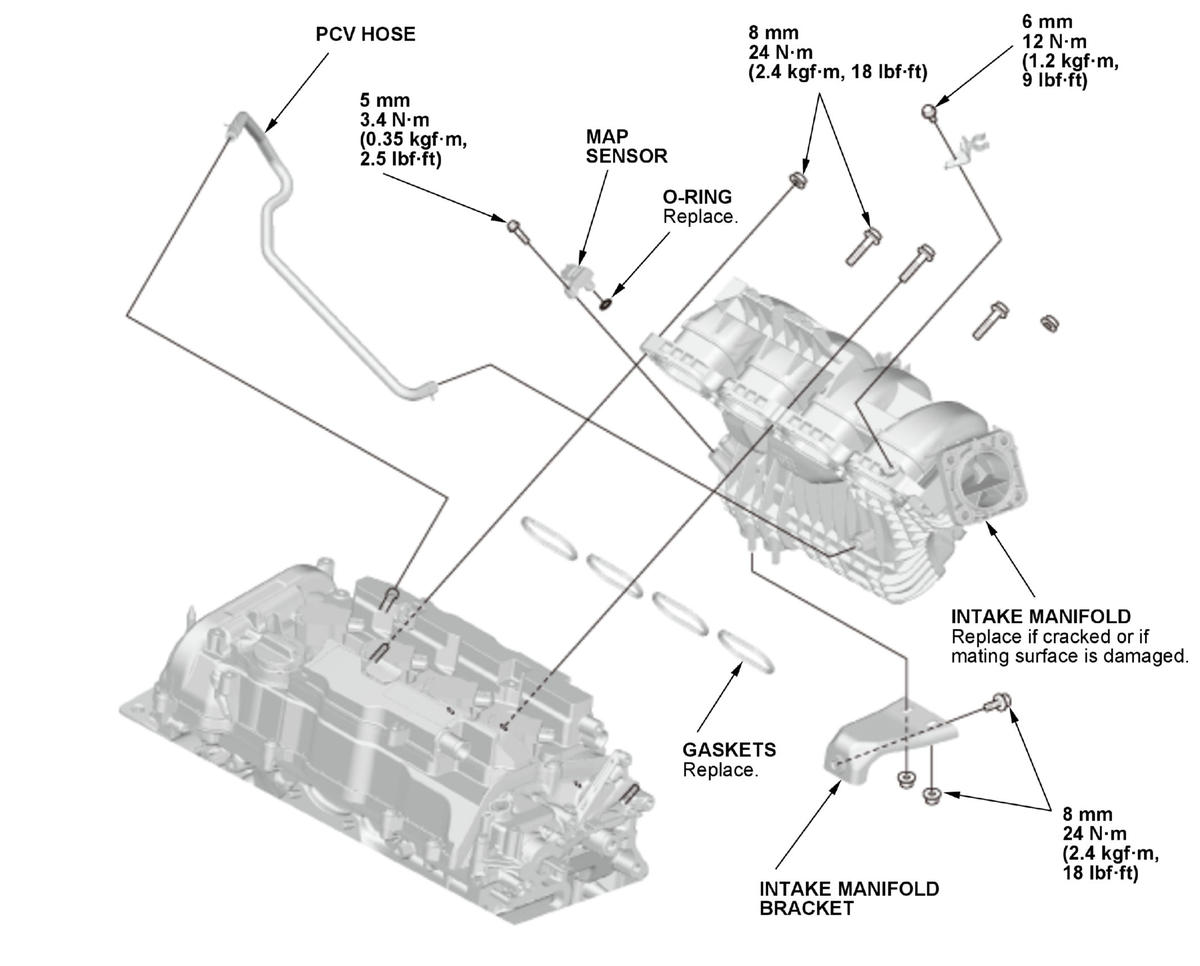

    Fig 1: Exploded View Of Intake Manifold Components With Torque Specifications (K20C2)
    GHH406447Courtesy of HONDA, U.S.A., INC.
