Engine Oil Jet Replacement: Replacement

NOTE: Where icon is shown for further information continue to the information below.

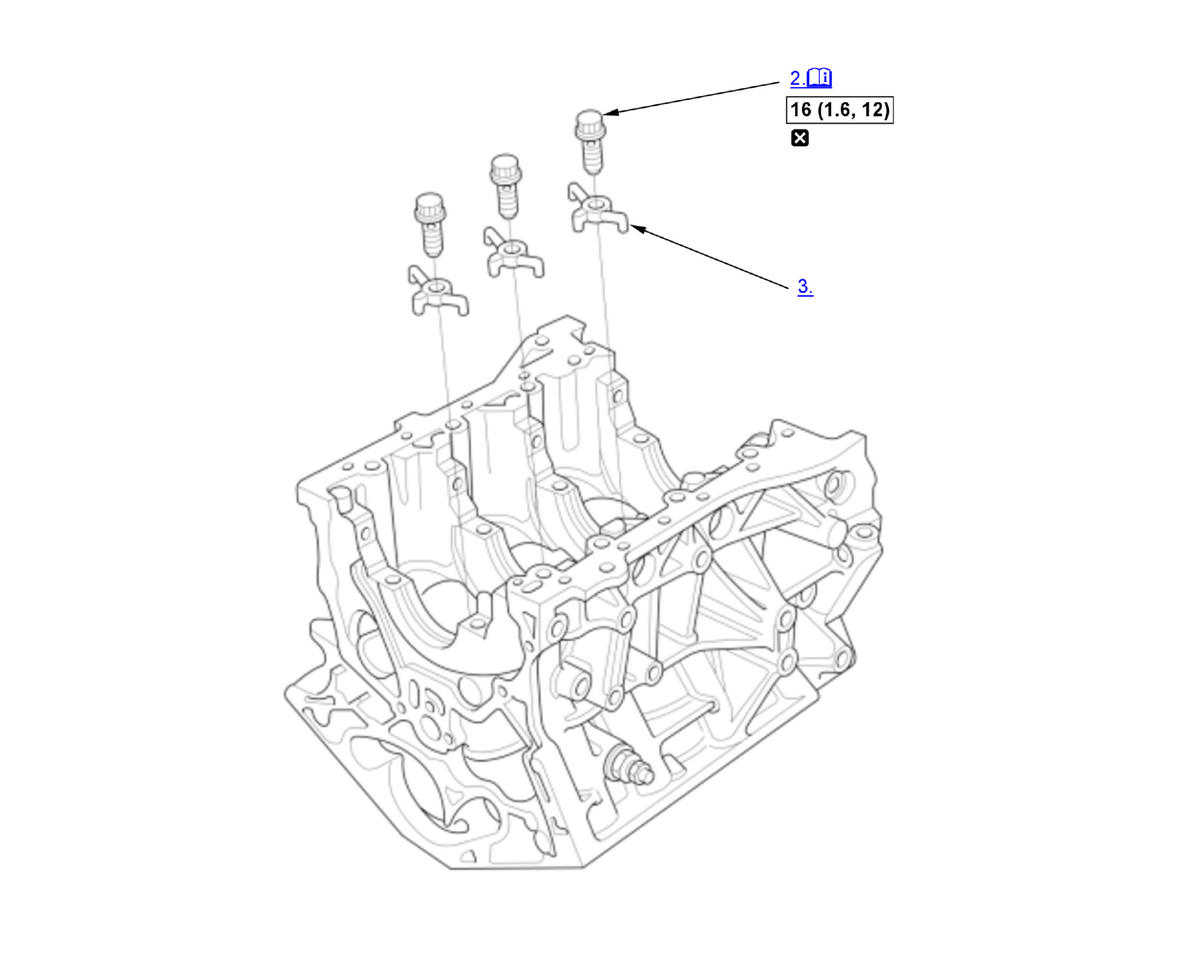

Fig 1: Engine Oil Jet Bolts With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Torque: N.m (kgf.m, lbf.ft)
	Replace

Crankshaft - Remove
Oil Jet Bolt - Remove
Note for installation

When installing the oil jet bolt, apply new engine oil to the bolt threads.
Oil Jet - Remove
All Removed Parts - Install

1. Install the parts in the reverse order of removal.
