Engine Oil Jet: Replacement

  1. Crankshaft - Remove
  2. Oil Jet and Oil Jet Bolt - Remove

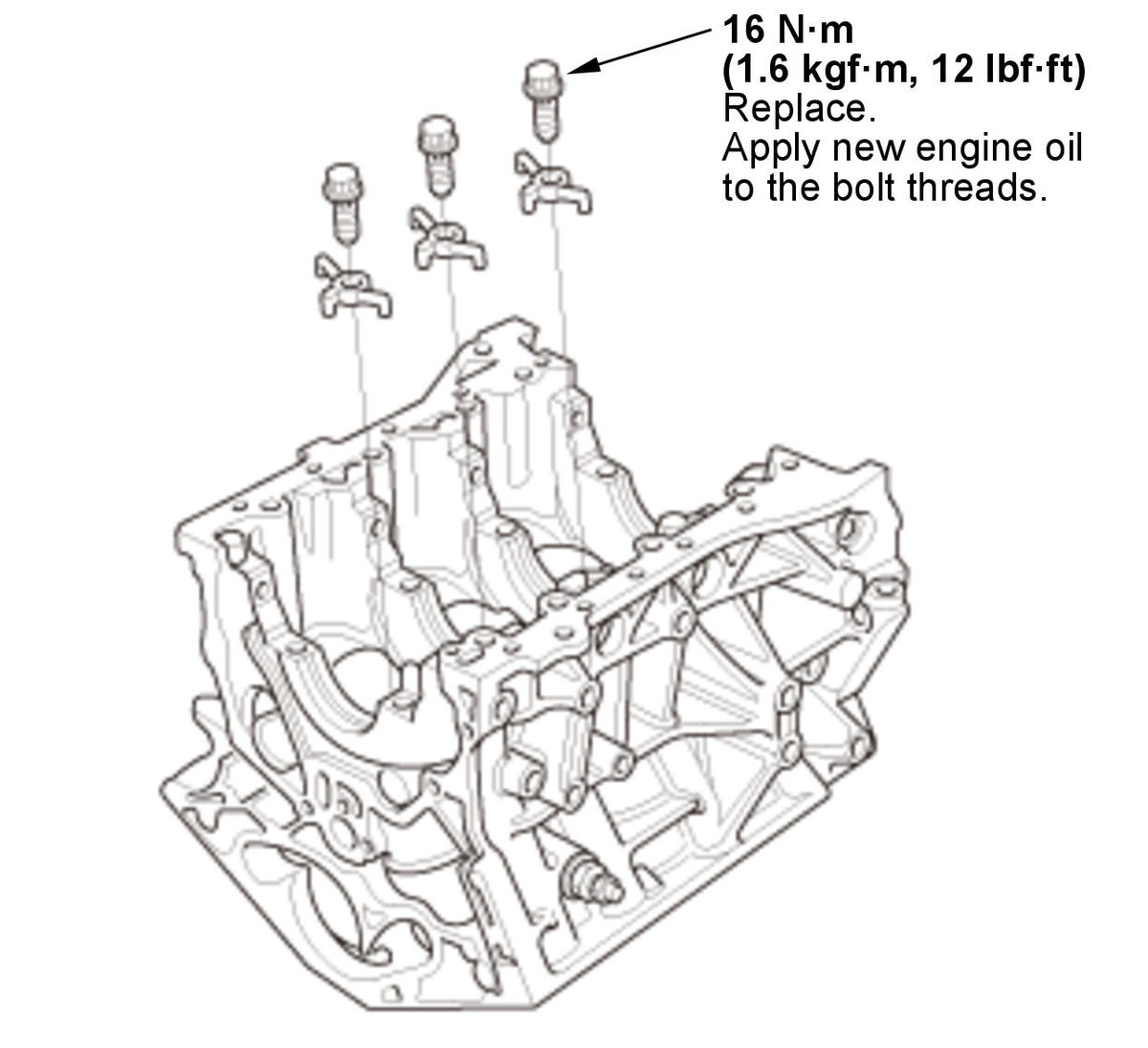

    Fig 1: Oil Jet Bolt With Torque Specifications
    GHH308272Courtesy of HONDA, U.S.A., INC.
  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
