Removal & Installation

  1. PCV Valve - Remove
      1. Remove the harness holder mounting bolt (A)

    2. Remove the harness ground mounting bolt (B)

    3. Remove the harness clamp (C), and move the harness holder (D).

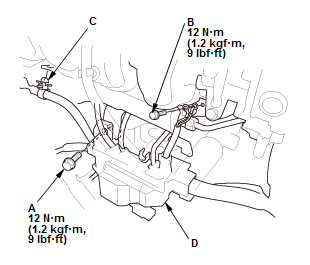

    Fig 1: Harness Holder Mounting Bolt & Harness Ground Mounting Bolt With Torque Specifications
    GHH81363Courtesy of HONDA, U.S.A., INC.

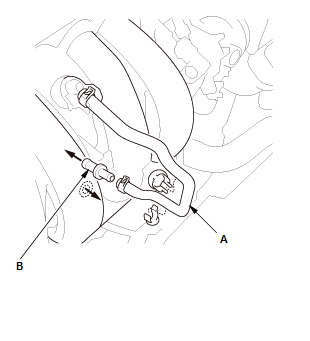

    Mexico models

    GHH81365Courtesy of HONDA, U.S.A., INC.
    		 4. Disconnect the hose (A)

    5. Remove the PCV valve (B).

    USA and Canada models

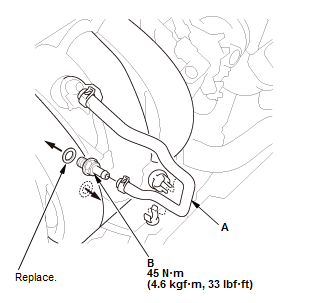

    Fig 2: PCV Valve With Torque Specifications
    GHH81364Courtesy of HONDA, U.S.A., INC.
  2. All Removed Parts - Install

    USA and Canada models

    1. Install the parts in the reverse order of removal with a new washer.

    Mexico models

    1. Install the parts in the reverse order of removal.
