VTEC / VTC System Description - VTEC

Overview

This system improves fuel efficiency and reduces exhaust emissions at all levels of engine speed, vehicle speed, and engine load. The VTEC system changes the cam profile to correspond to engine speed. It maximizes torque at low engine speed and output at high engine speed. The low lift cam is used at low engine speeds, and the high lift cam is used at high engine speeds. The rocker arm oil control solenoid switches the intake valve side of the VTEC system on and off; the solenoid is controlled by the PCM.

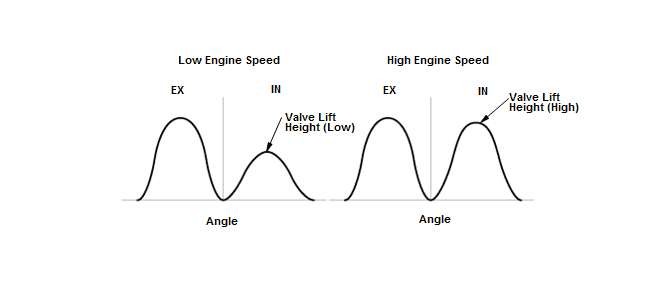

Valve Timing Operation Image

Courtesy of HONDA, U.S.A., INC.

Construction

VTEC is composed of the VTEC camshaft, the VTEC rocker arm, and the rocker arm oil control valve.

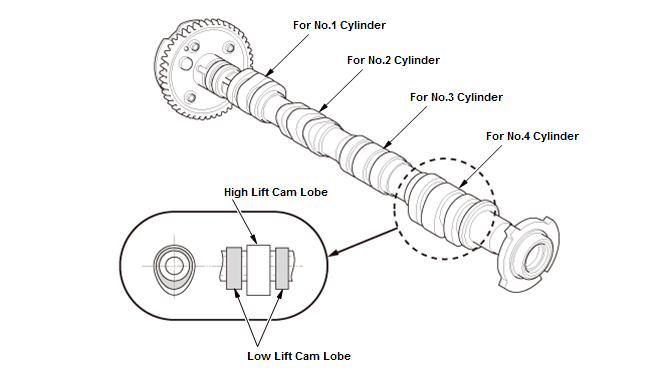

VTEC Camshaft

The intake camshaft is structured so that each cylinder has a low lift cam lobe and a high lift cam lobe separately.

Courtesy of HONDA, U.S.A., INC.

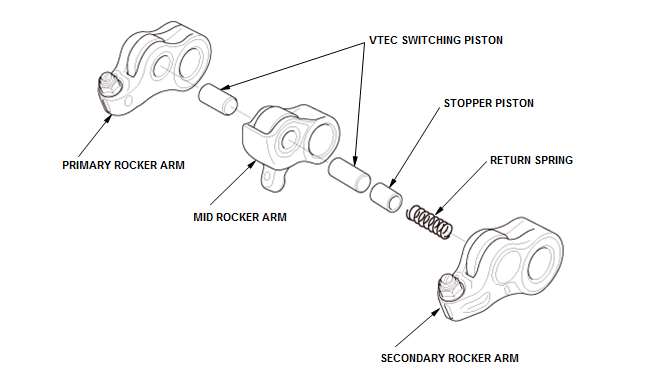

VTEC Rocker Arm

The intake rocker arm is composed of the primary, the mid, and the secondary rocker arms. The inner side of the primary rocker arm has a stopper piston and a return spring. The inner side of the mid and the secondary rocker arm have a VTEC switching piston in each rocker arm.

Courtesy of HONDA, U.S.A., INC.

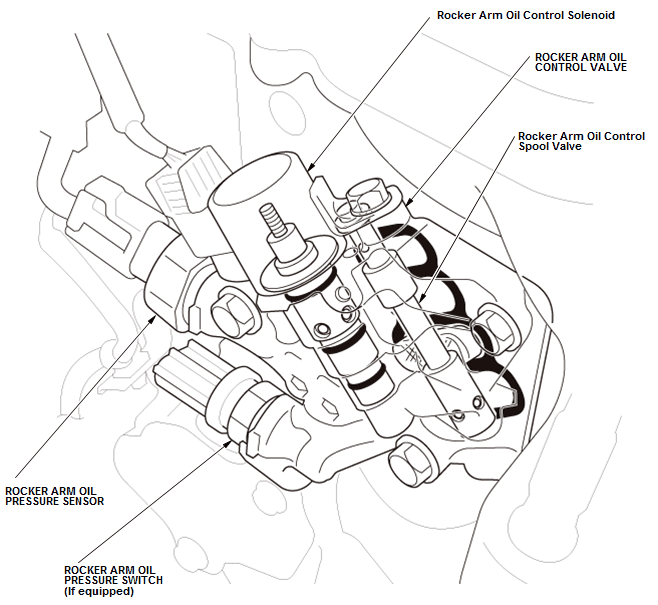

Rocker Arm Oil Control Valve

The rocker arm oil control valve is integrated with the solenoid valve and the spool valve, and it is installed on the cylinder head. When the rocker arm oil control solenoid turns ON or OFF depending on a signal from the PCM to switch, the hydraulic pressure subjects the rocker arm oil control spool valve to an ON/OFF control. By switching the ON/OFF of the valve, the hydraulic pressure applied to the VTEC switching piston in the rocker arms is controlled.

Courtesy of HONDA, U.S.A., INC.

Rocker Arm Oil Pressure Switch (USA and Canada models and Mexico models CVT)

The rocker arm oil pressure switch attached to the rocker arm oil control valve monitors the hydraulic pressure condition and the statuses of the rocker arm oil control spool valve.

Courtesy of HONDA, U.S.A., INC.

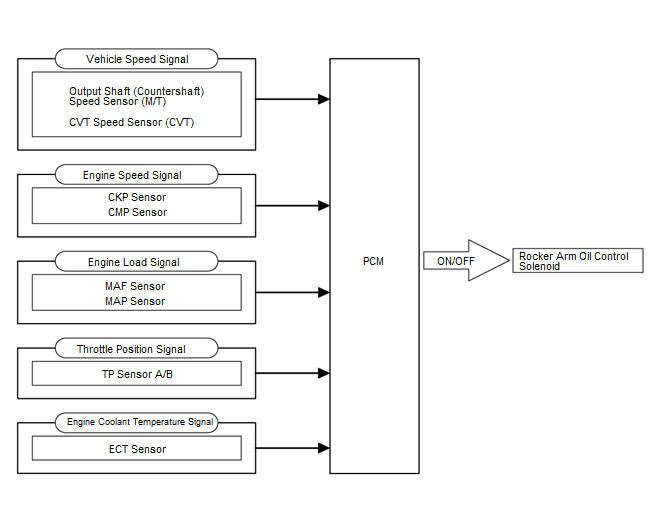

Control

Based on the vehicle speed signal, engine speed signal, engine load signal, throttle position signal, and engine coolant signal sent from various sensors, the PCM determines what the lift amount should be and controls the ON/OFF of the rocker arm oil control solenoid.

Courtesy of HONDA, U.S.A., INC.

Operation

The hydraulic pressure from the oil pump and the rocker arm oil control valve is sent into the primary rocker arm and the secondary rocker arm via each oil port on the intake rocker shaft to operate the VTEC system.

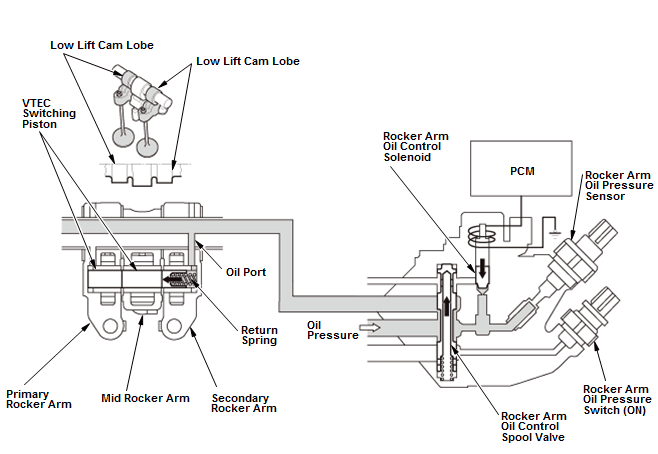

At low engine speed

At low engine speed, the rocker arm oil control solenoid is turned off by the PCM. Oil pressure from the rocker arm oil control valve does not enter the intake rocker shaft. Each rocker arm is separated by a return spring, and the primary and secondary rocker arms are lifted by the low lift cam lobe.

Courtesy of HONDA, U.S.A., INC.

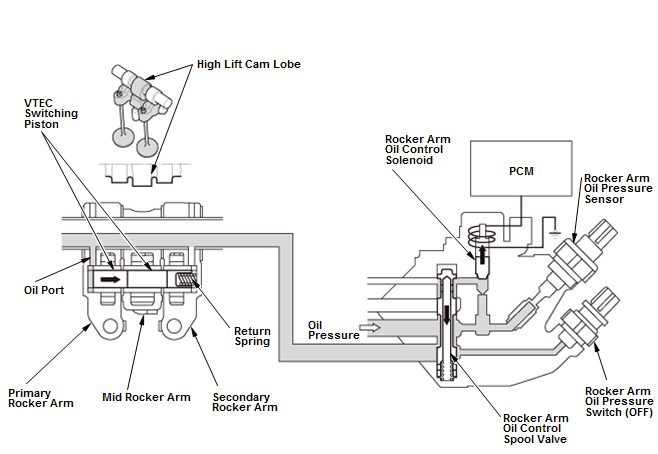

At high engine speed

At high engine speed, the rocker arm oil control solenoid is turned on by the PCM. Oil pressure from the rocker arm oil control valve enters the intake rocker shaft, and it moves the VTEC switching piston in the primary rocker arm. This causes the VTEC switching piston to slide into the secondary rocker arm, locking the rocker arms together. Both rocker arms are lifted by the high lift cam lobe.

Courtesy of HONDA, U.S.A., INC.
