Exploded View
NOTE:
Do not disassemble the oil pump except for the shown parts.

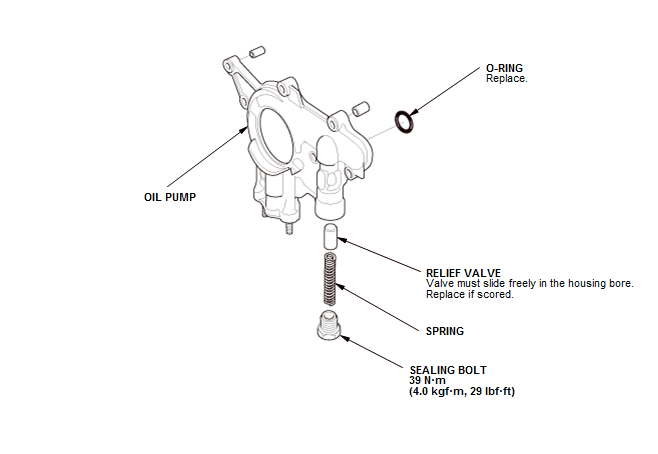

Oil Pump - Exploded View
Fig 1: Exploded View Of Oil Pump With Torque Specifications
Courtesy of HONDA, U.S.A., INC.
