Visual Index - Dashboard

Location Index
Dashboard 1
Dashboard 2
Dashboard 3

Dashboard 1

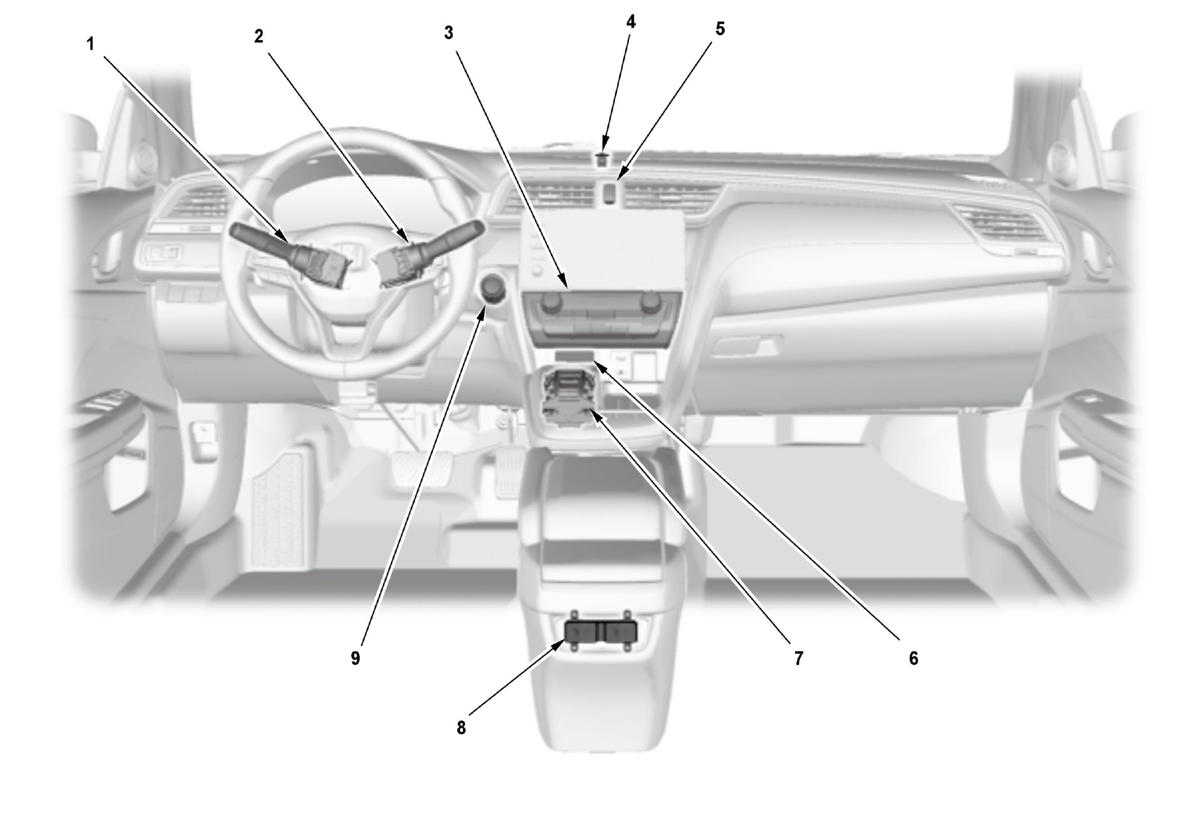

GHH386531

Courtesy of HONDA, U.S.A., INC.

Dashboard 1

No.	Component	Related System
1	Combination light switch - Turn signal switch - LaneWatch switch	Exterior Lights Reminder Systems Turn Signal/Hazard Warning Lights LaneWatch
2	Wiper/washer switch	Wipers/Washers
3	Climate control panel	Climate Control System Power Mirrors Rear Window Defogger Seat Heaters
4	Sunlight sensor (with automatic wiper) Automatic lighting control unit-sensor (without automatic wiper)	Climate Control System Exterior Lights
5	Hazard warning switch	Turn Signal/Hazard Warning Lights
6	Front passenger's airbag cutoff indicator (KA, KC models)	SRS

No.	Component	Related System
7	SBW shifter assembly	Gear Unit Control System Acoustic Vehicle Alerting System Keyless Access System Keyless/Power Door Locks/Security System
8	Rear seat heater switch	Seat Heaters
9	Power switch	Entry Lights Control System Keyless Access System

Dashboard 2

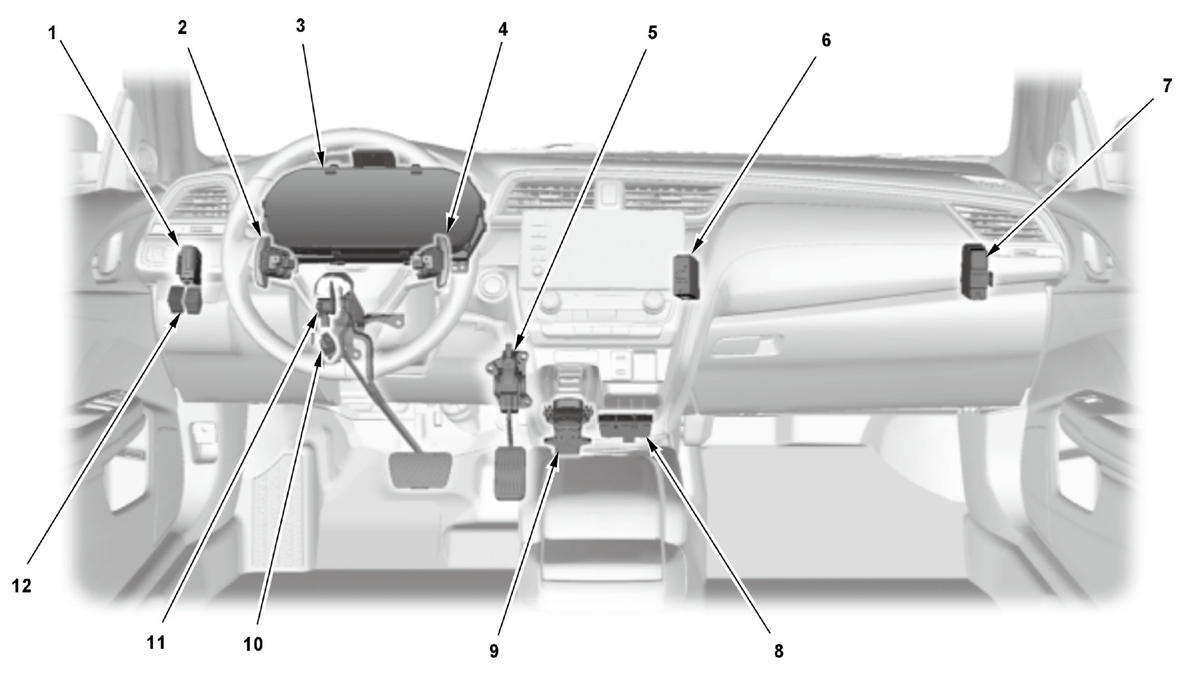

GHH386532

Courtesy of HONDA, U.S.A., INC.

Dashboard 2

No.	Component	Related System
1	CAN gateway	Fuel and Emissions Systems
2	Paddle shifter -	Shift Position Indicator
3	Gauge control module	Exterior Lights Gauges Keyless Access System Keyless/Power Door Locks/Security System Reminder Systems Safety Indicator System Turn Signal/Hazard Warning Lights Wipers/Washers
4	Paddle shifter +	Shift Position Indicator
5	Accelerator pedal module - Accelerator pedal position (APP) sensor	Fuel and Emissions Systems
6	Acoustic vehicle alerting control unit	Acoustic Vehicle Alerting System
7	Park pawl actuator driver unit	Gear Unit Control System Keyless Access System

No.	Component	Related System
8	EV switch ECON switch Sports mode switch	Electric Powertrain Shift Position Indicator Gauges Electric Parking Brake System Electric Servo Brake System
9	Electric parking brake switch Automatic brake hold switch	Electric Parking Brake System Electric Servo Brake System Exterior Lights Gauges Keyless Access System Reminder Systems
10	Brake pedal position switch	Acoustic Vehicle Alerting System Exterior Lights Keyless Access System
11	Brake pedal - Brake pedal stroke sensor	Conventional Brake
12	- VSA OFF switch - Acoustic vehicle alerting system off switch (KC models) - Fuel fill door opener switch - Safety support switch	VSA System Acoustic Vehicle Alerting System Fuel Fill Door Electrical Collision Mitigation Brake System (CMBS) Road Departure Mitigation

Dashboard 3

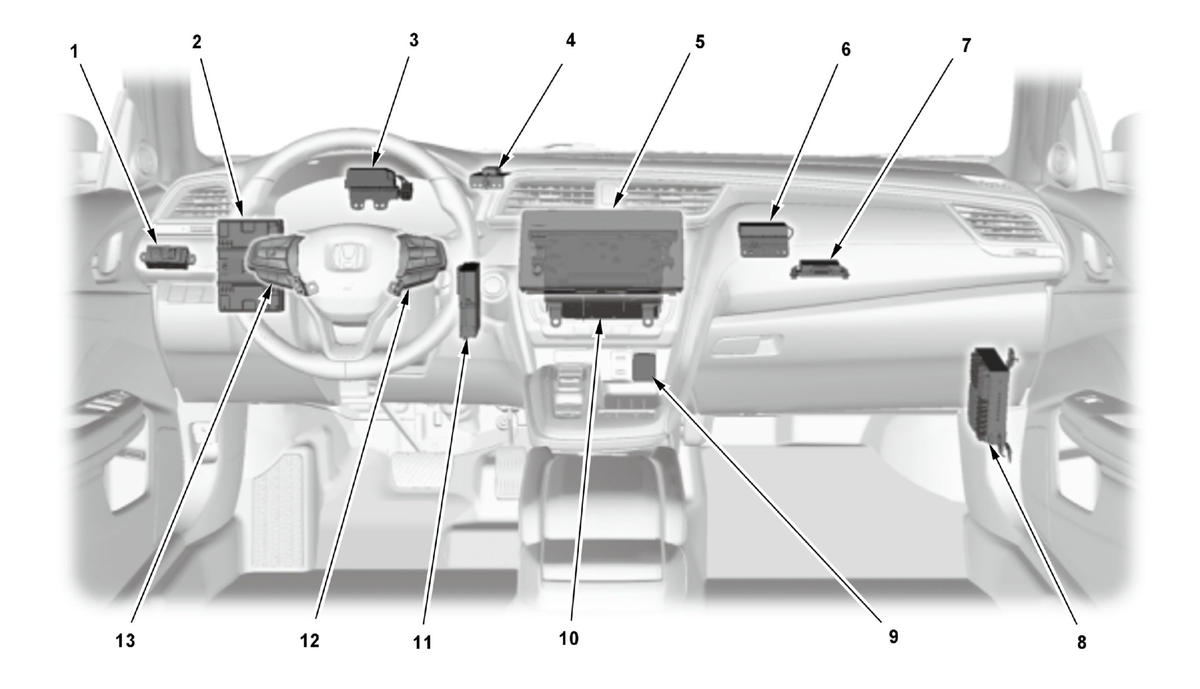

GHH386533

Courtesy of HONDA, U.S.A., INC.

Dashboard 3

No.	Component	Related System
1	Dashlights brightness control switch	Gauges Interior Lights

No.	Component	Related System
2	Body control module	Entry Lights Control System Exterior Lights Gauges Interior Lights Keyless Access System Keyless/Power Door Locks/Security System Moonroof Electrical Power Mirrors Power Windows Rear Window Defogger Reminder Systems Safety Indicator System Trunk Lid Turn Signal/Hazard Warning Lights Wipers/Washers
3	TEL/GNSS antenna (with navigation)	Audio System (Display Audio Type (8-inch Screen)) Navigation System Telematics System
4	GPS antenna (without navigation)	Audio System (Display Audio Type (8-inch Screen))
5	Center display unit	Audio System (Display Audio Type (8-inch Screen)) Navigation System HandsFreeLink System (Display Audio Type (8-inch Screen)) Telematics System
6	TEL antenna	Telematics System
7	Active noise cancellation unit	Audio System (Display Audio Type (8-inch Screen)) Audio System (Color Audio Type (5-inch Screen))
8	Stereo amplifier	Audio System (Display Audio Type (8-inch Screen)) Navigation System
9	Accessory power socket	Accessory Power Sockets
10	Audio-navigation unit (with navigation) Audio unit (without navigation)	Audio System (Display Audio Type (8-inch Screen)) Audio System (Color Audio Type (5-inch Screen)) Navigation System HandsFreeLink System (Display Audio Type (8-inch Screen)) HandsFreeLink System (Color Audio Type (5-inch Screen)) Telematics System
11	Telematics control unit	Telematics System
12	ACC combination switch - LKAS switch	Adaptive Cruise Control (ACC) Lane Keeping Assist System (LKAS)

No.	Component	Related System
13	Audio remote-HFL switch	Gauges Audio System (Display Audio Type (8-inch Screen)) Audio System (Color Audio Type (5-inch Screen)) Navigation System HandsFreeLink System (Display Audio Type (8-inch Screen)) HandsFreeLink System (Color Audio Type (5-inch Screen))
