Engine Block Assembly Component Location Index (1.5L Engine)

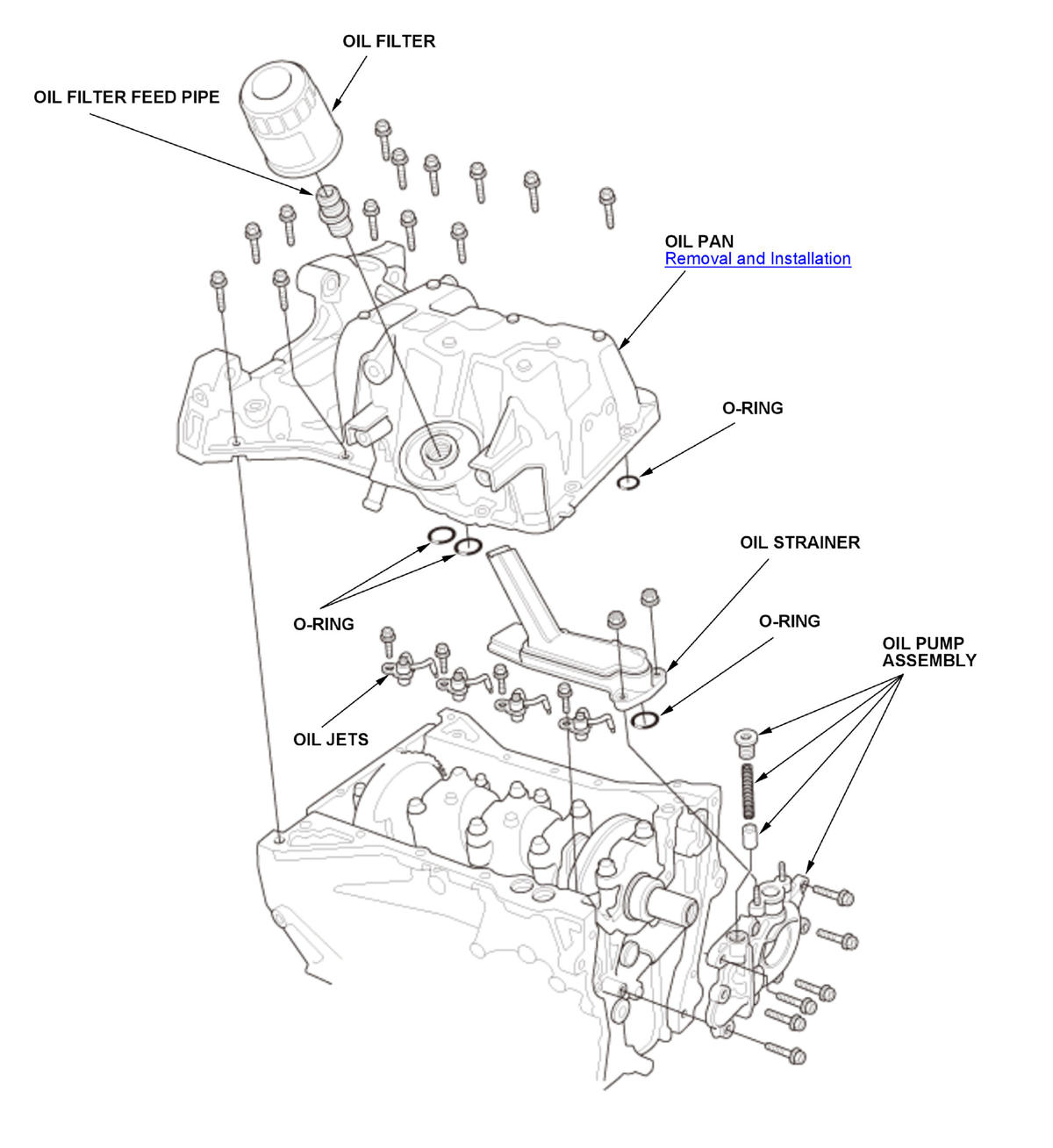

GHH406664Courtesy of HONDA, U.S.A., INC.

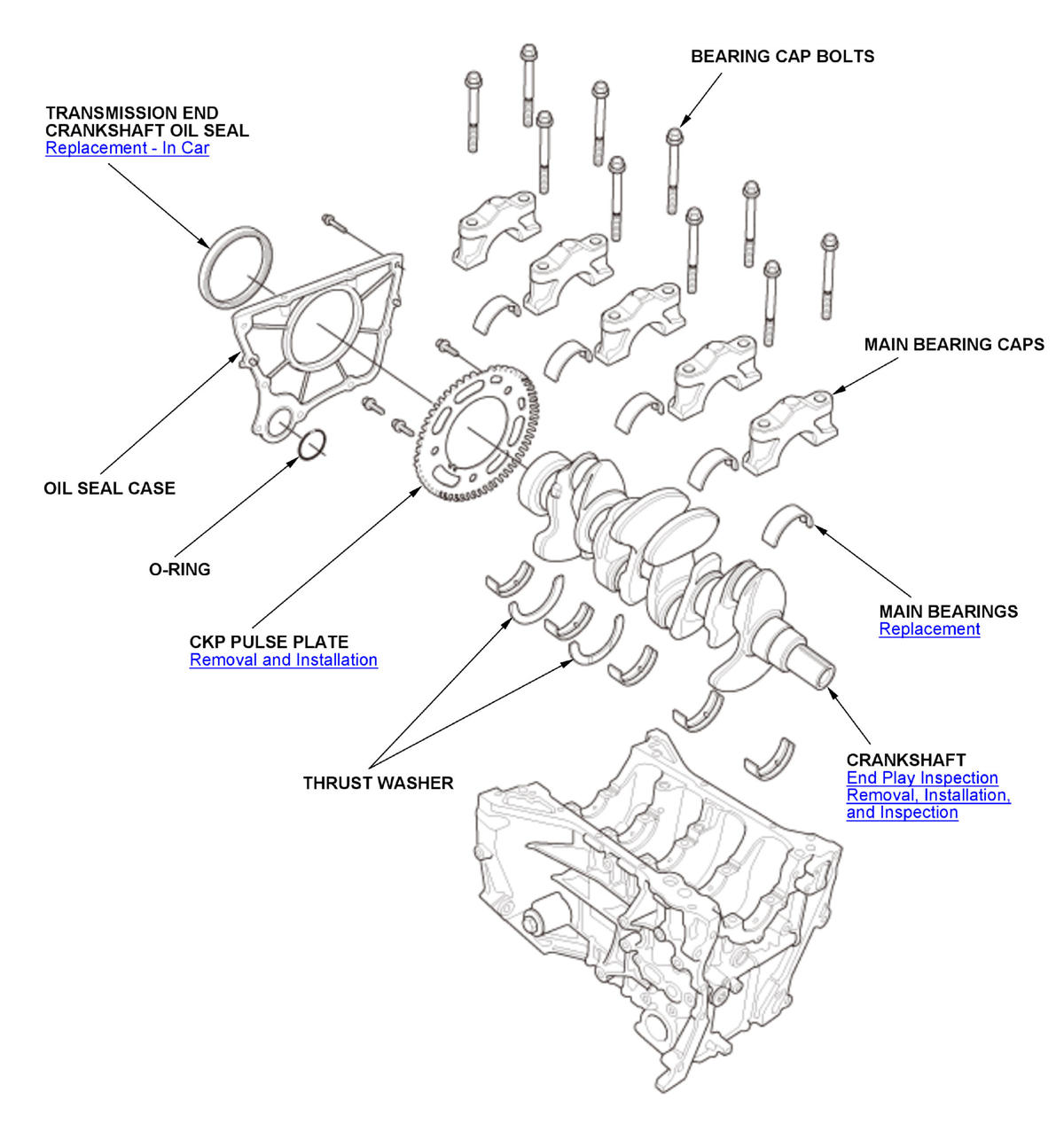

GHH406665Courtesy of HONDA, U.S.A., INC.

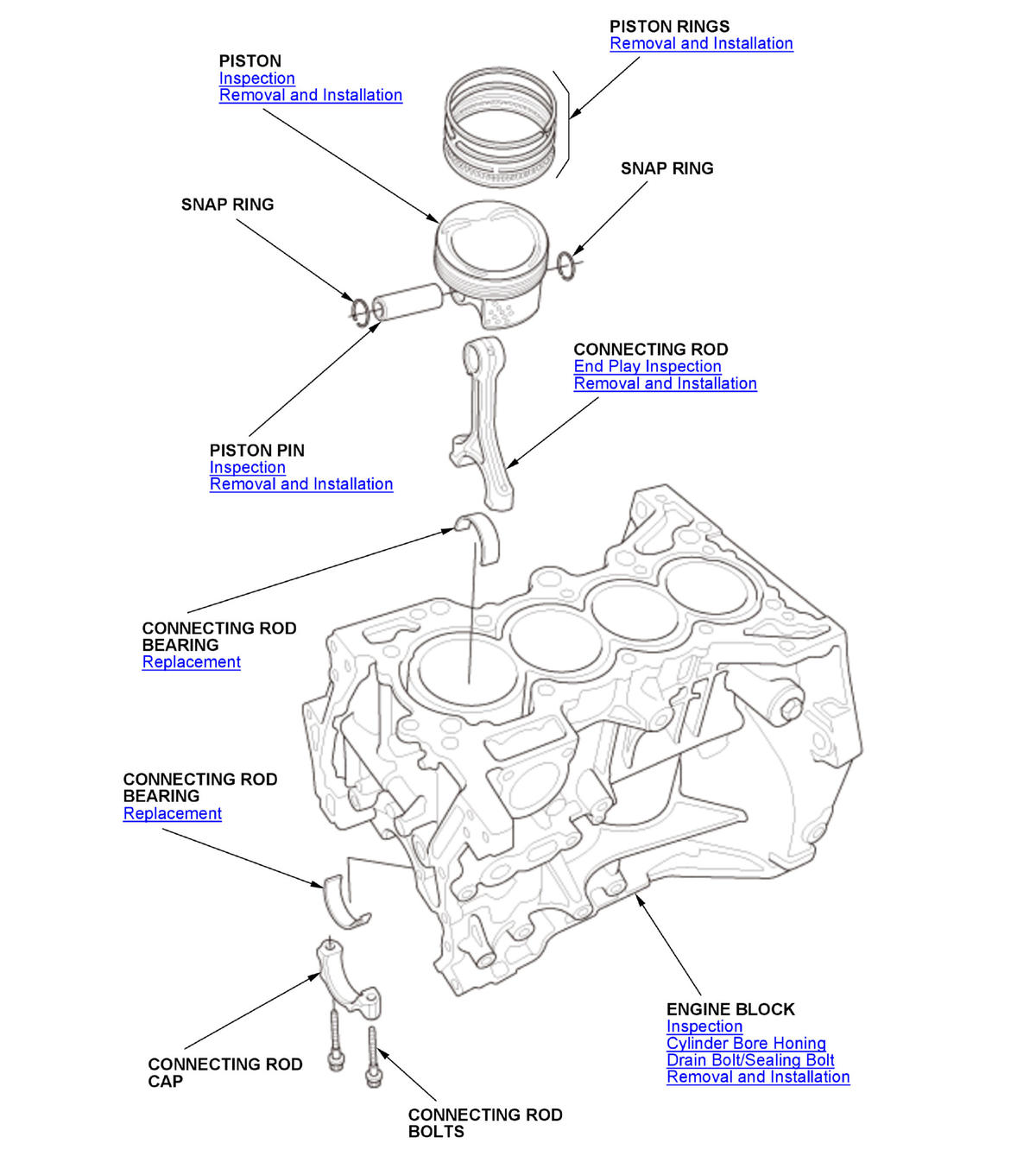

GHH406666Courtesy of HONDA, U.S.A., INC.
