Valve Inspection (K20C2): Inspection
- Valve - Remove
- Valve - Inspect

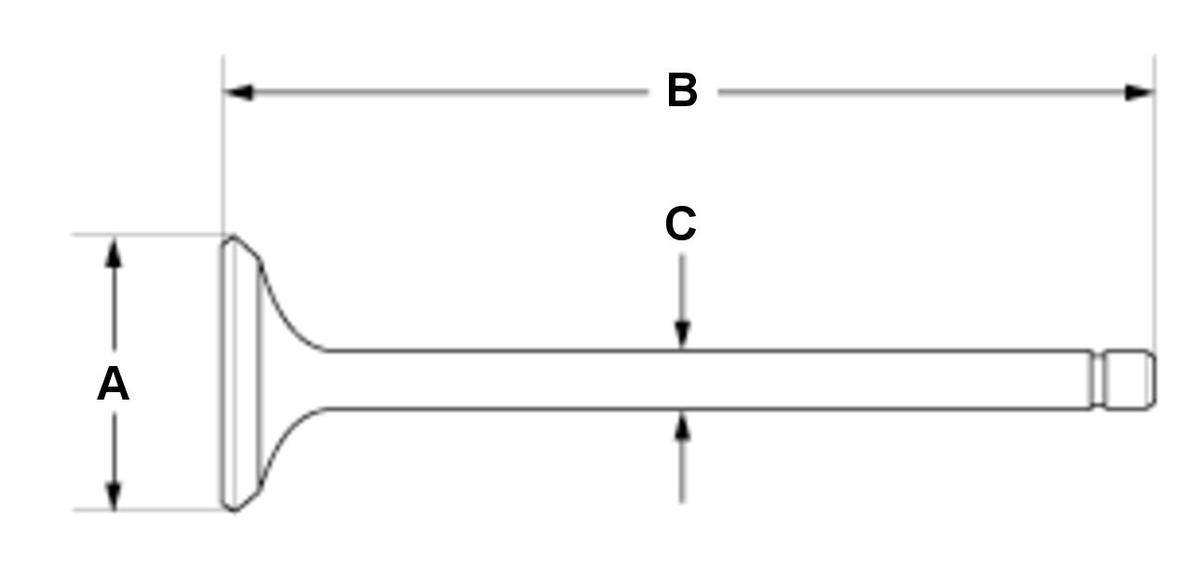

1. Measure the valve in these areas.
Intake Valve Dimensions A Standard (New): 34.85-35.15 mm (1.3720-1.3839 in) B Standard (New): 116.95-117.55 mm (4.6043-4.6279 in) C Standard (New): 5.475-5.490 mm (0.21555-0.21614 in) C Service Limit: 5.445 mm (0.21437 in) Exhaust Valve Dimensions A Standard (New): 28.85-29.15 mm (1.1358-1.1476 in) B Standard (New): 114.40-115.00 mm (4.5039-4.5276 in) C Standard (New): 5.445-5.460 mm (0.21437-0.21496 in) C Service Limit: 5.435 mm (0.21398 in) - All Removed Parts - Install
1. Install the parts in the reverse order of removal.
