Valve Guide Replacement (1.5L Engine): Notes
Special Tools Required
Description/Tool Number
Courtesy of HONDA, U.S.A., INC.

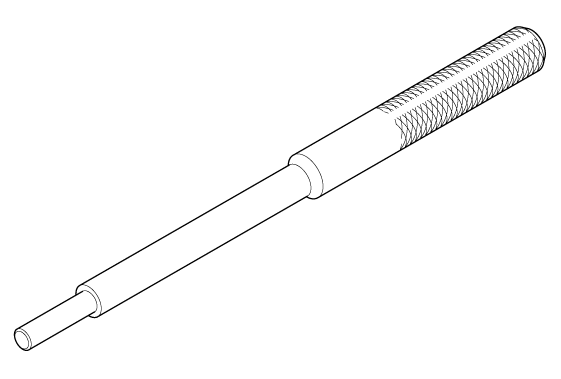

Valve Guide Driver, 5.35 x 9.7 mm 07742-0010100
Courtesy of HONDA, U.S.A., INC.

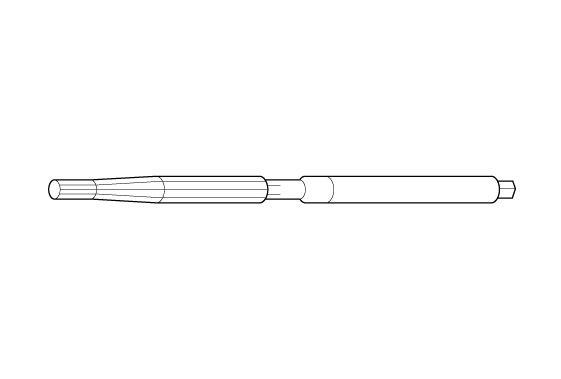

Valve Guide Reamer, 5.5 mm 07HAH-PJ7A100
Courtesy of HONDA, U.S.A., INC.
