Cam Chain Inspection (1.5L Engine): Inspection

Right Front Wheel - Remove
Engine Undercover - Remove

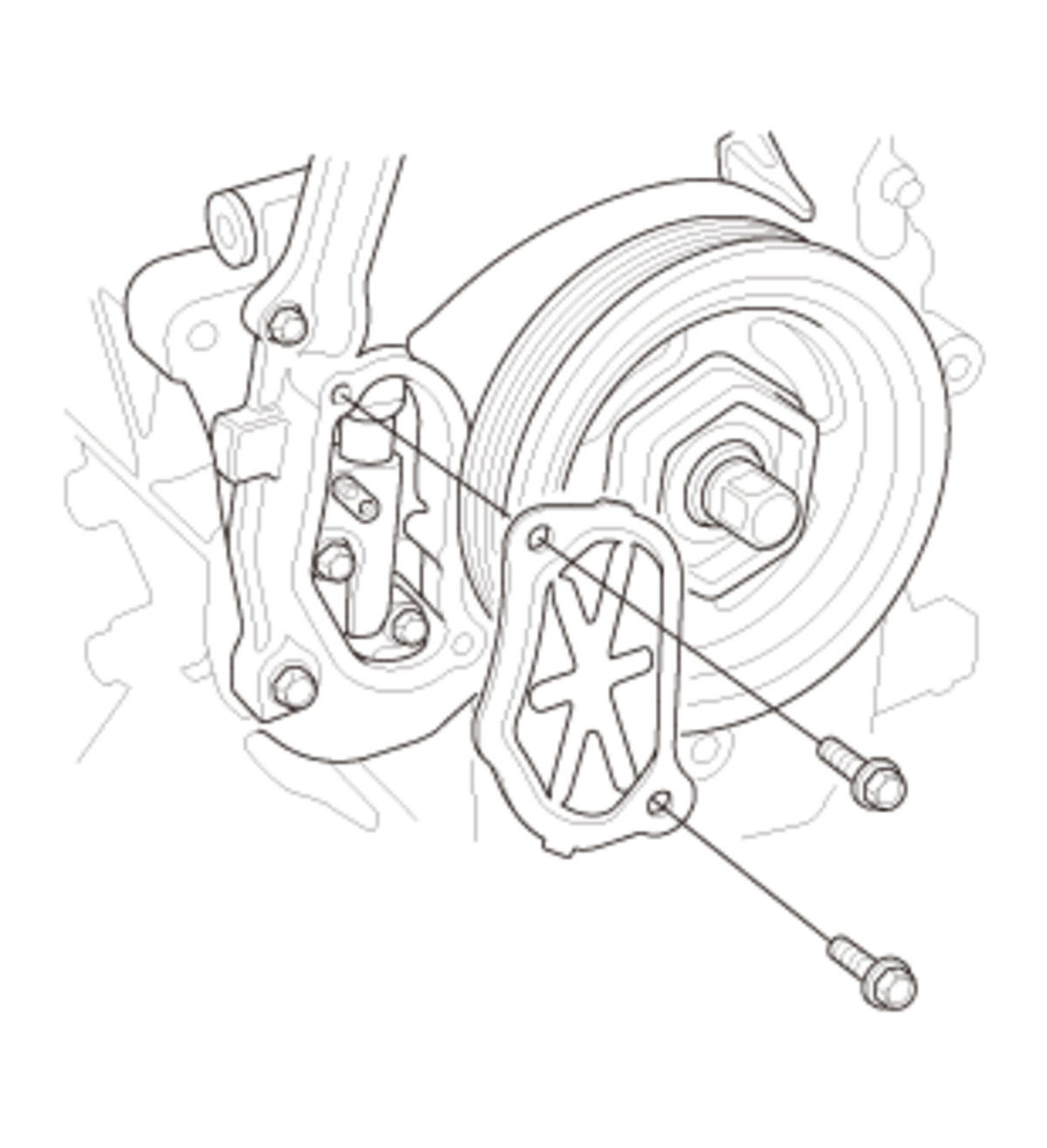

Chain Case Cover - Remove

Courtesy of HONDA, U.S.A., INC.

Cam Chain - Inspect

Courtesy of HONDA, U.S.A., INC.

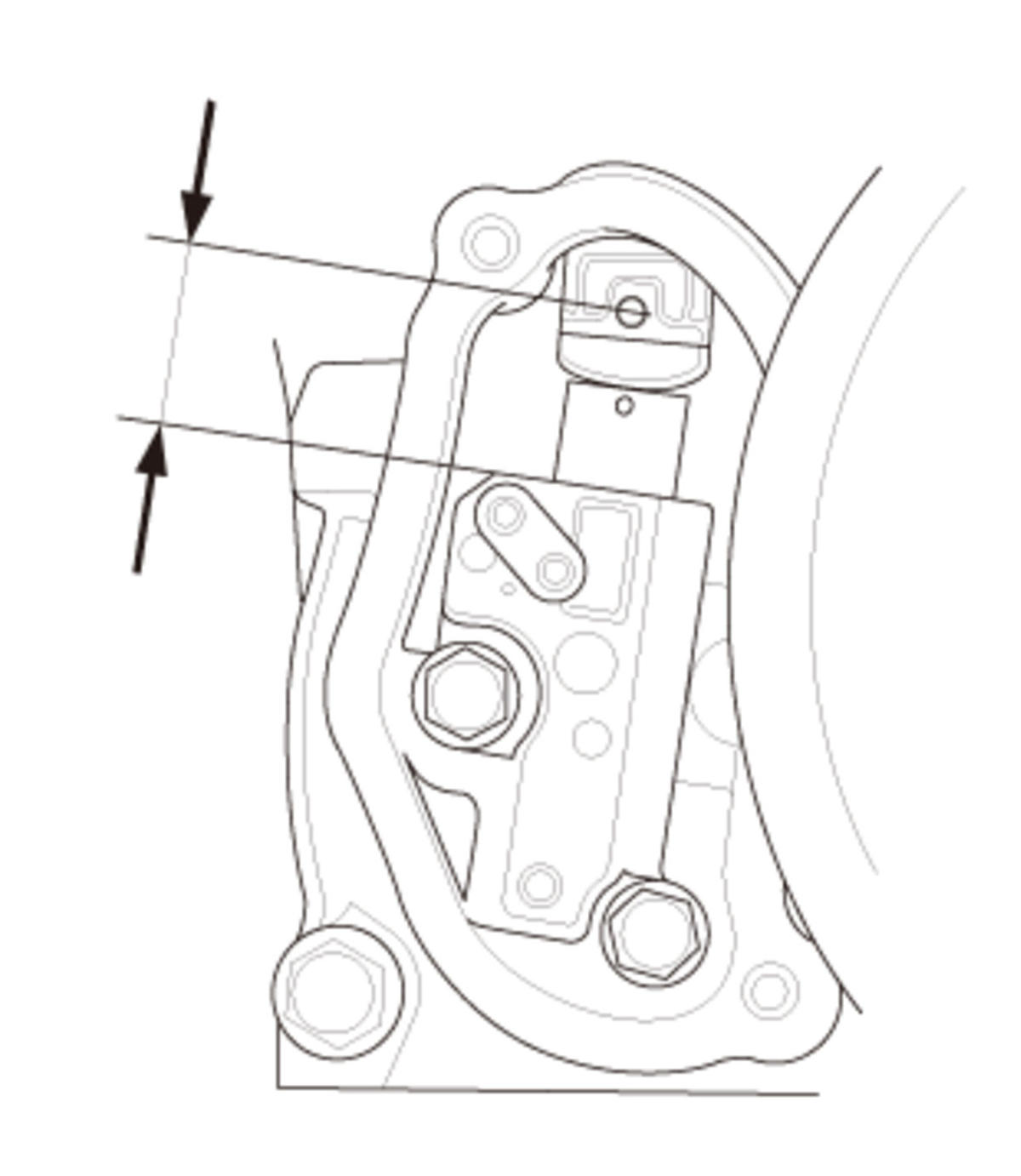

1. Measure the length of the cam chain auto-tensioner rod.

2. If the length is over the service limit, replace the cam chain.

When replacing, check the teeth on the cam chain drive sprocket, VTC actuator A, and VTC actuator B for wear and damage. If any of them are worn or damaged, replace if necessary.

3. Check the oil passage on the cam chain auto-tensioner for clogs. If the cam chain auto-tensioner is clogged, replace it.

Cam Chain Auto-Tensioner Rod Length
Standard (New):	21.9 mm (0.862 in)
Service Limit:	25.8 mm (1.016 in)

Chain Case Cover - Install

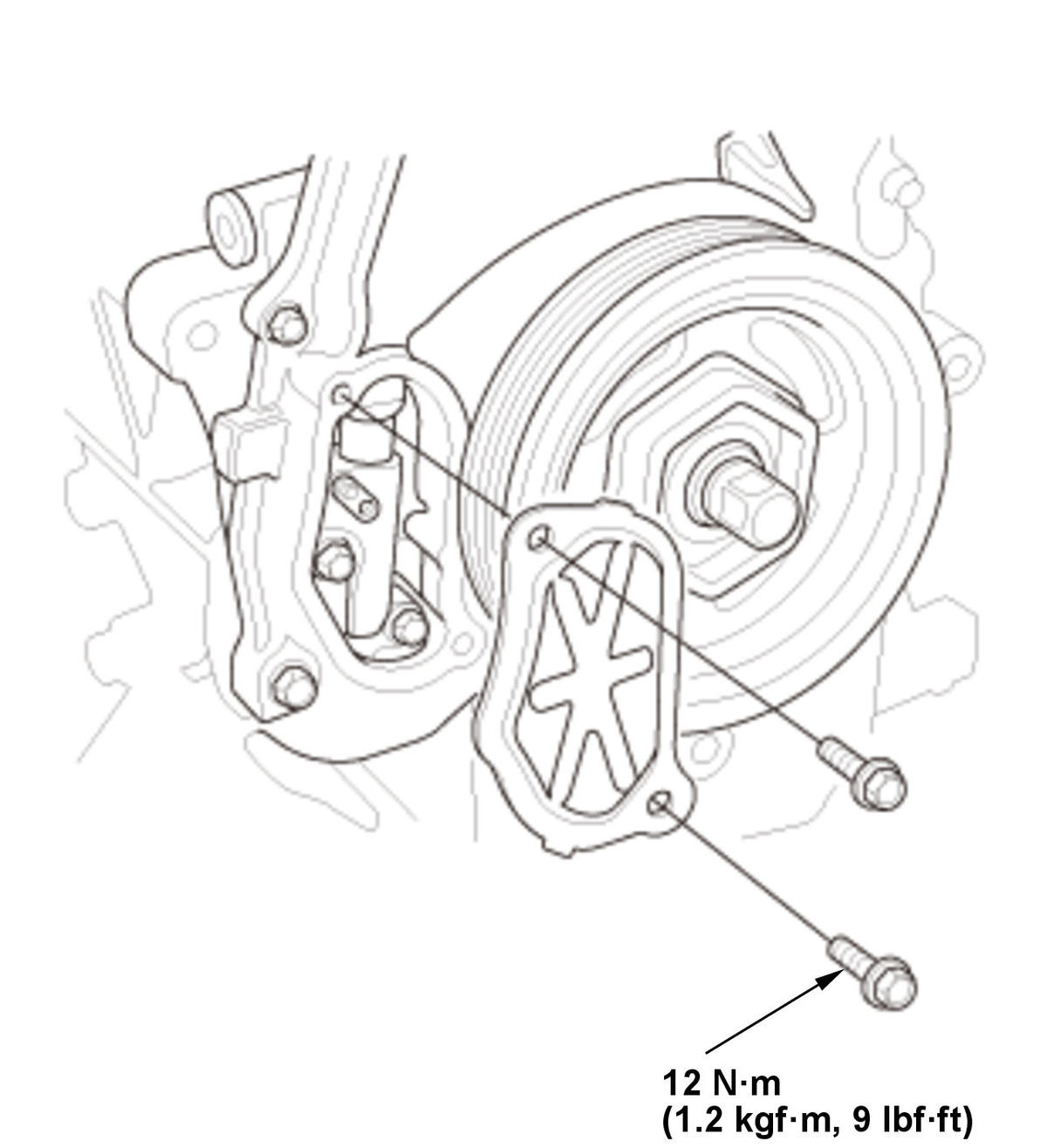

Fig 1: Chain Case Cover Bolts With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

1. Apply liquid gasket

to the cam chain case mating surface of the chain case cover and to the inside edge of the threaded bolt holes.

2. Install the chain case cover.

Engine Undercover - Install
Right Front Wheel - Install
