Disassembly and Reassembly: Procedure

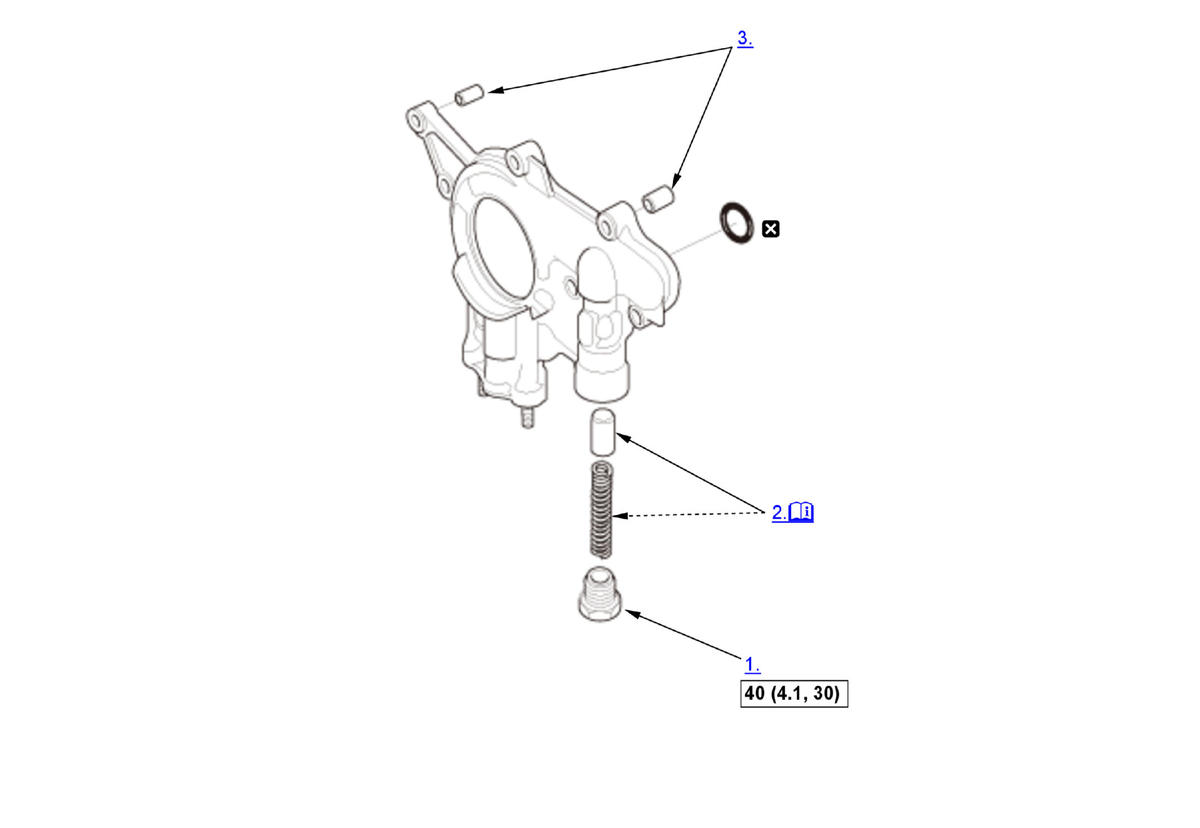

Fig 1: Engine Oil Pump With Torque Specifications
GHH418380Courtesy of HONDA, U.S.A., INC.
Detailed information, notes, and precautions
Torque: N.m (kgf.m, lbf.ft)
Replace
  1. Sealing Bolt - Remove
  2. Relief Valve - Remove

    NOTE:  Check the relief valve must slide freely in the housing bore. Replace if scored.

  3. Dowel Pin - Remove
  4. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
