Removal and Installation: Engine: Installation

NOTE: How to read the torque specifications .

1. Torque Rod Bracket - Install
2. Universal Lifting Eyelet - Install

   Courtesy of HONDA, U.S.A., INC.

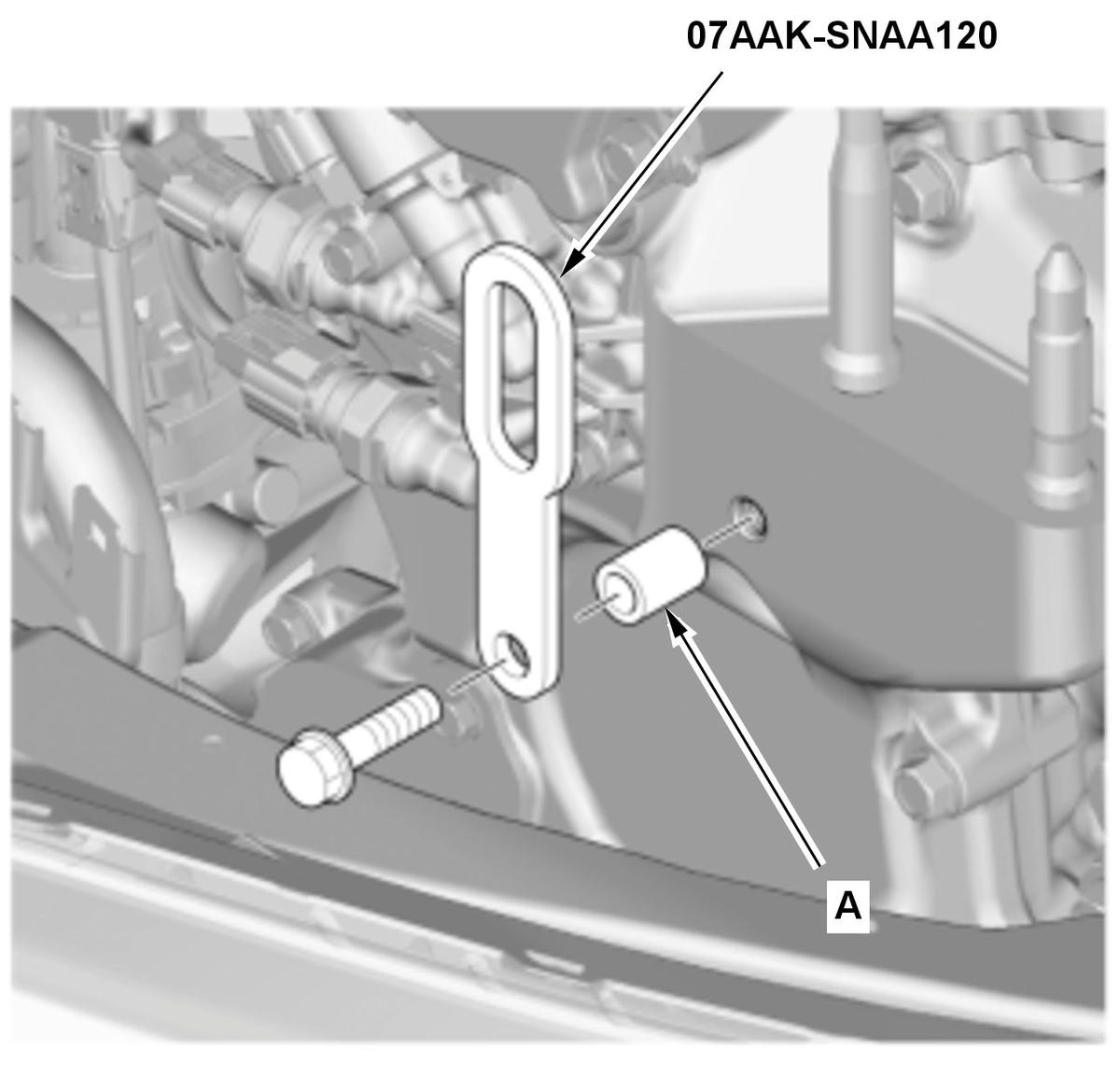

   1. Install the universal lifting eyelet with a commercially available spacer (A).

3. Engine/Transmission Assembly - Position

   1. Position the engine/transmission assembly under the vehicle, and be sure that they are properly positioned. Carefully lower the vehicle, and stop with the installation position of the engine/transmission assembly.

4. Chain Hoist - Install

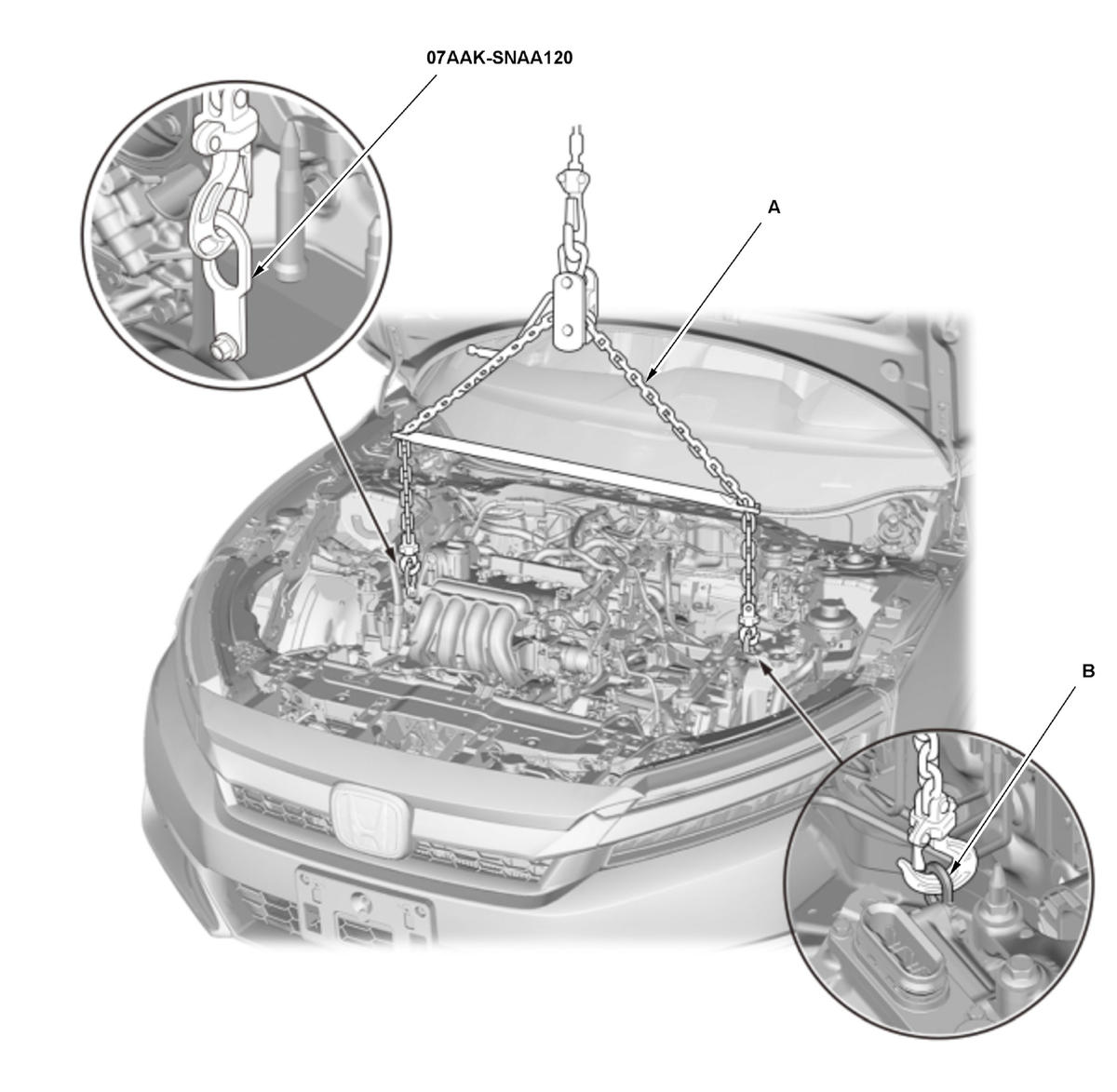

   1. Attach the chain hoist (A) to the universal lifting eyelet and the transmission hanger (B), then lift the engine/transmission until it is securely supported by the chain hoist.

   Courtesy of HONDA, U.S.A., INC.

5. Transmission Mount Bracket Mounting Bolt and Nut - Loosely Install
6. Engine - Support

   1. Lift and support the engine with a jack and a wood block under the oil pan.

7. Chain Hoist and Universal Lifting Eyelet - Remove
8. Side Engine Mount - Loosely Install
9. Vehicle - Lift

   1. Raise the vehicle.

10. Front Subframe - Support

    Courtesy of HONDA, U.S.A., INC.

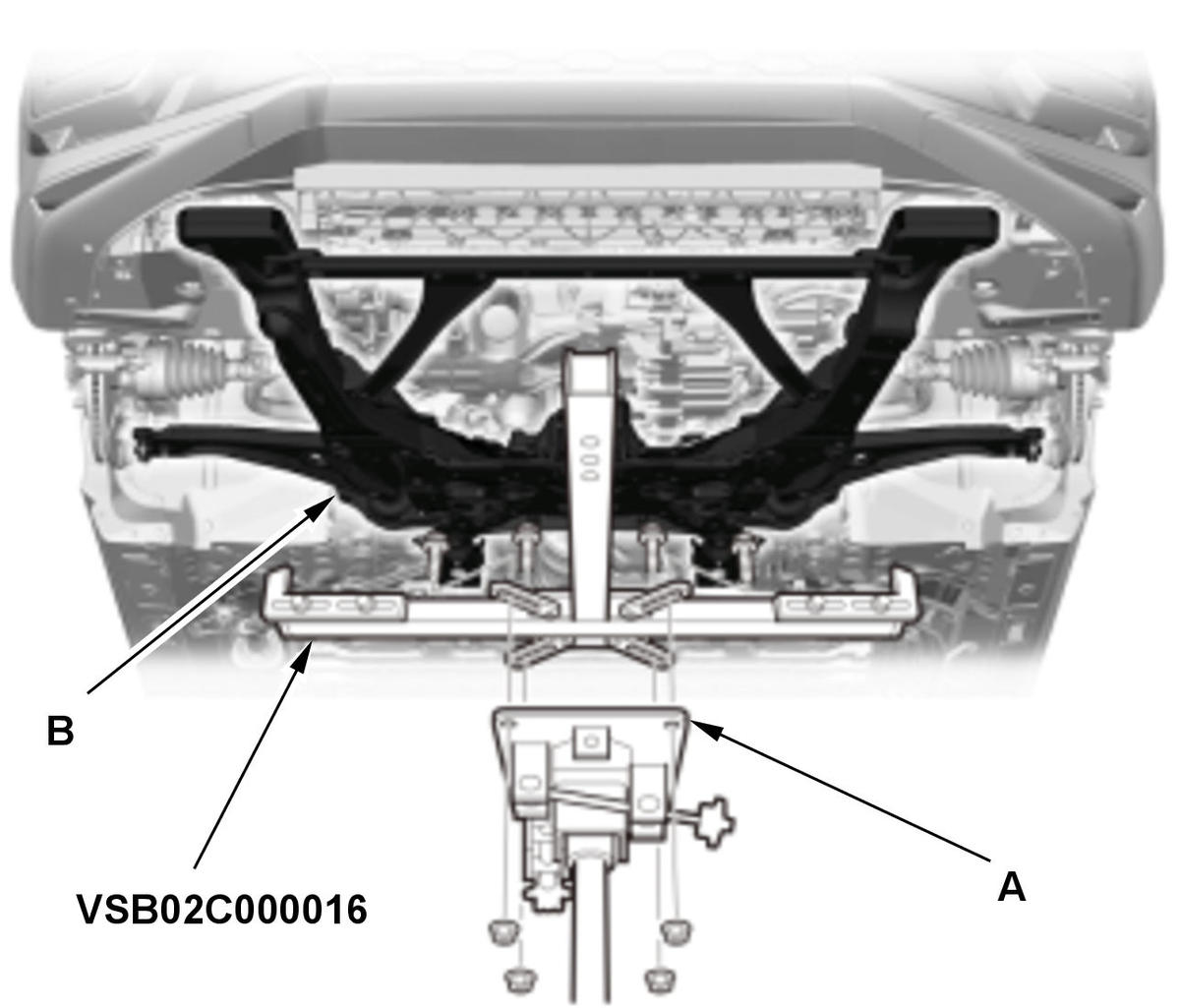

    1. Set the subframe adapter on a transmission jack (A), line up the slots in the arms with the bolt holes on the corner of the jack base, and tighten the bolts. 2. Attach the subframe adapter to the front subframe (B).

11. Front Subframe - Install
12. Front Subframe Rear Stay - Install

    Courtesy of HONDA, U.S.A., INC.

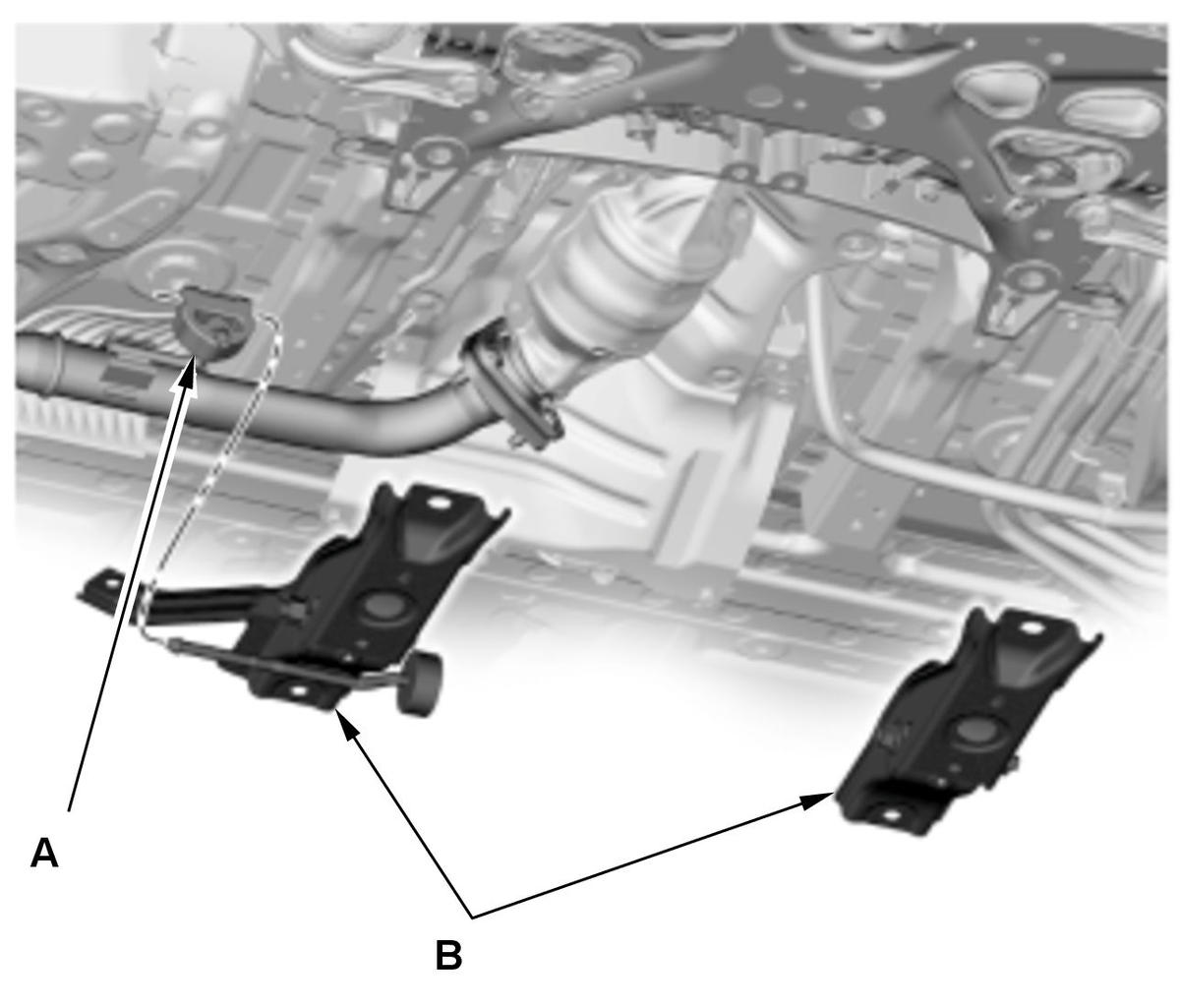

    1. Install the muffler mount (A). 2. Install the front subframe rear stay (B) .

13. Torque Rod - Loosely Install
14. Vehicle - Lift

    1. Lower the vehicle.

15. All Engine Mount Mounting Bolt and Nut - Tighten
16. EPS Motor/Control Unit Connector - Connect
17. Transmission Ground Cable - Connect
18. ATF Cooler Hose - Connect
19. Electric A/C Compressor - Install
20. Vehicle - Lift

    1. Lower the vehicle.

21. Steering Joint - Connect
22. Electric VTC Motor - Install
23. Radiator - Install

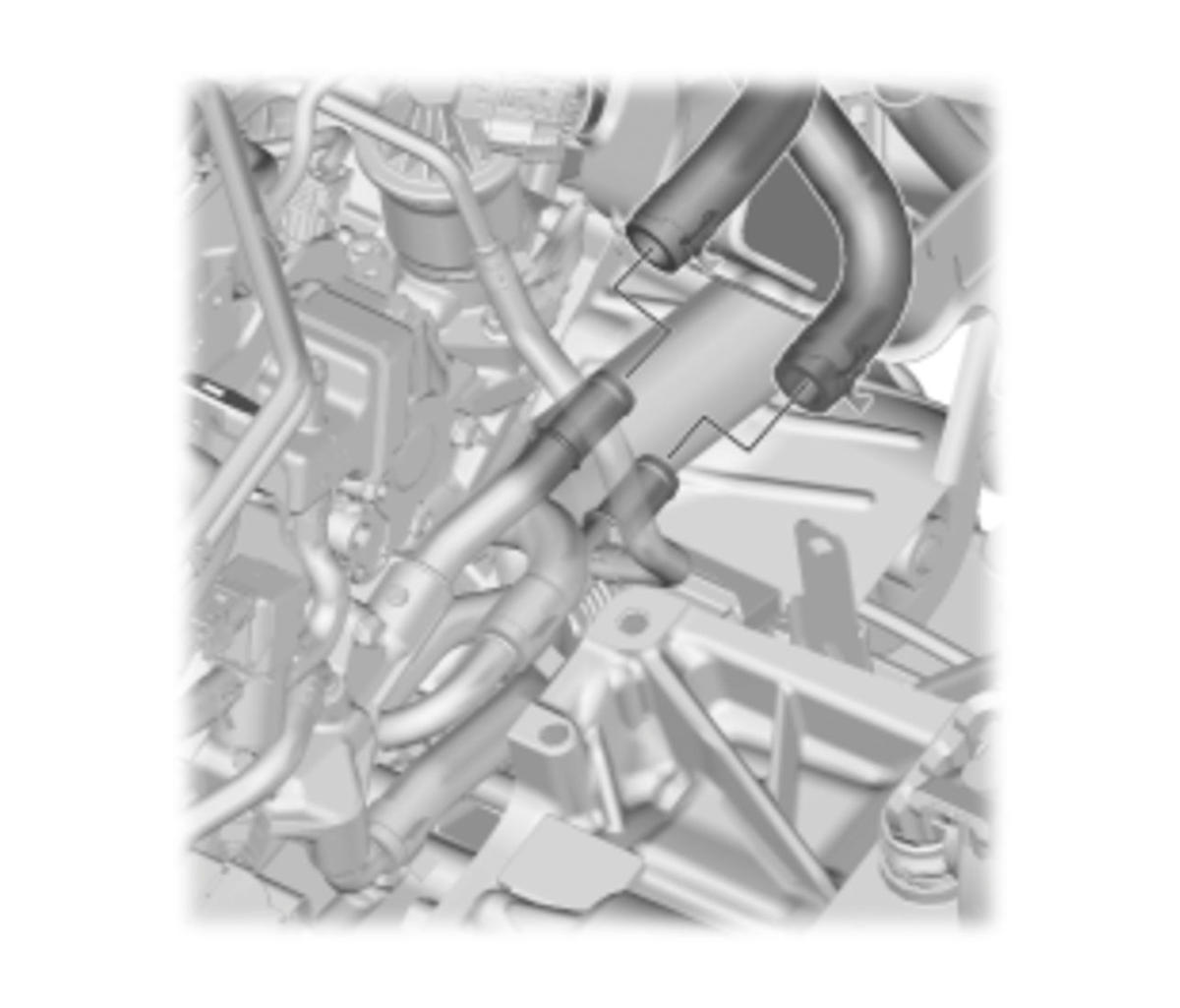

24. Heater Hose - Connect

    Courtesy of HONDA, U.S.A., INC.

25. Fuel Feed Hose and EVAP Canister Purge Hose - Connect

    Courtesy of HONDA, U.S.A., INC.

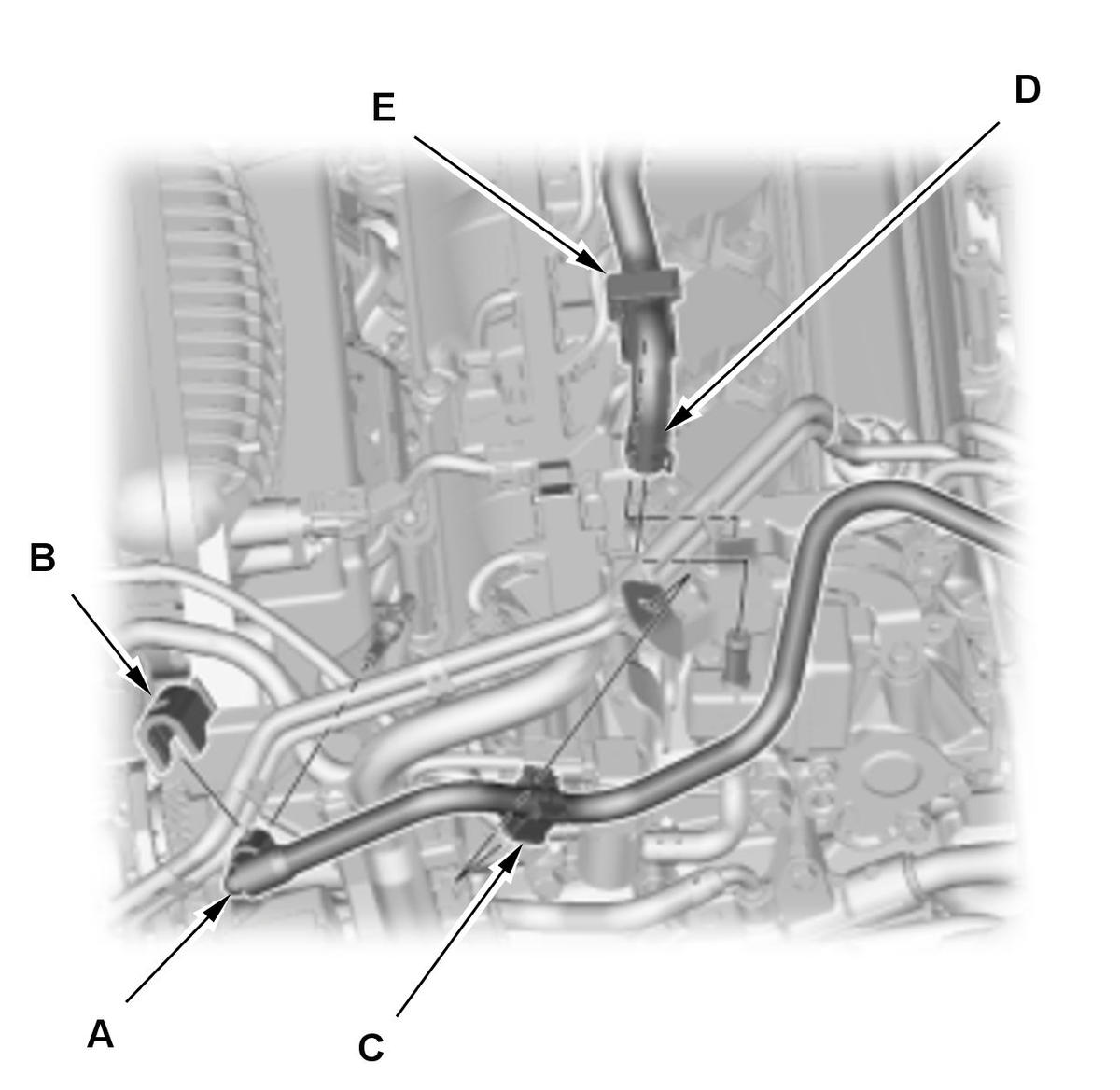

    1. Connect the fuel feed hose (A), then install the quick-connect fitting cover (B) 2. Install the hose clamp (C). 3. Connect the EVAP canister purge hose (D). 4. Install the hose clamp (E).

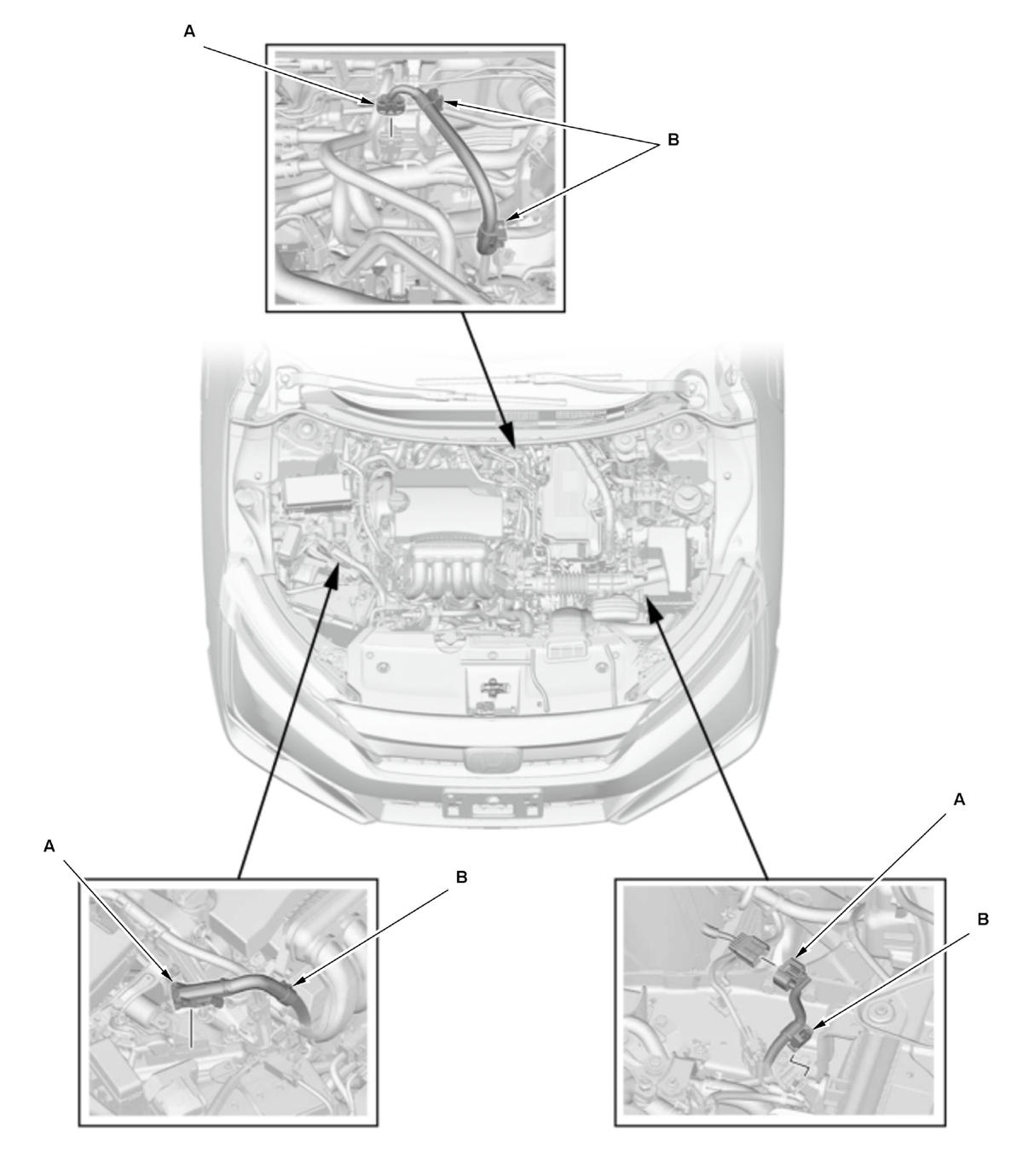

26. Connector (Engine Room Harness)- Connect

    1. Connect the connectors (A).

    Courtesy of HONDA, U.S.A., INC.

    2. Install the harness clamp (B).

27. Vehicle - Lift

    1. Raise the vehicle.

28. Under-Floor TWC - Install
29. Front Driveshaft - Install
30. Tie-Rod End Ball Joint - Connect
31. Front Stabilizer Link Ball Joint - Connect
32. Lower Arm Ball Joint - Connect
33. Front Inner Fender - Install
34. Front Motor Undercover - Install
35. Motor Undercover - Install
36. Front Wheel - Install
37. Vehicle - Lift

    1. Lower the vehicle.

38. PCU - Install
39. Cowl Cover - Install
40. Front Grille Cover - Install
41. Air Cleaner - Install
42. 12 Volt Battery Terminal - Connect
43. Service Plug - Turn ON
44. Transmission Fluid - Refill
45. Engine Oil - Refill
46. Engine Coolant - Refill
47. Fuel Leak - Check

    1. Turn the vehicle to the ON mode, but do not start the engine. After the fuel pump runs for about 2 seconds, the fuel line will be pressurized. Repeat this two or three time, then check for fuel leakage.

48. Fluid Leak - Check
49. PCM - Reset
50. CKP Pattern - Clear/Learn
51. Idle Speed - Inspect
52. Ignition Timing - Inspect
53. Wheel Alignment - Check
54. VSA Sensor Neutral Position - Memorize
