Engine Oil Pan Removal and Installation: Installation

  1. Oil Pan - Install

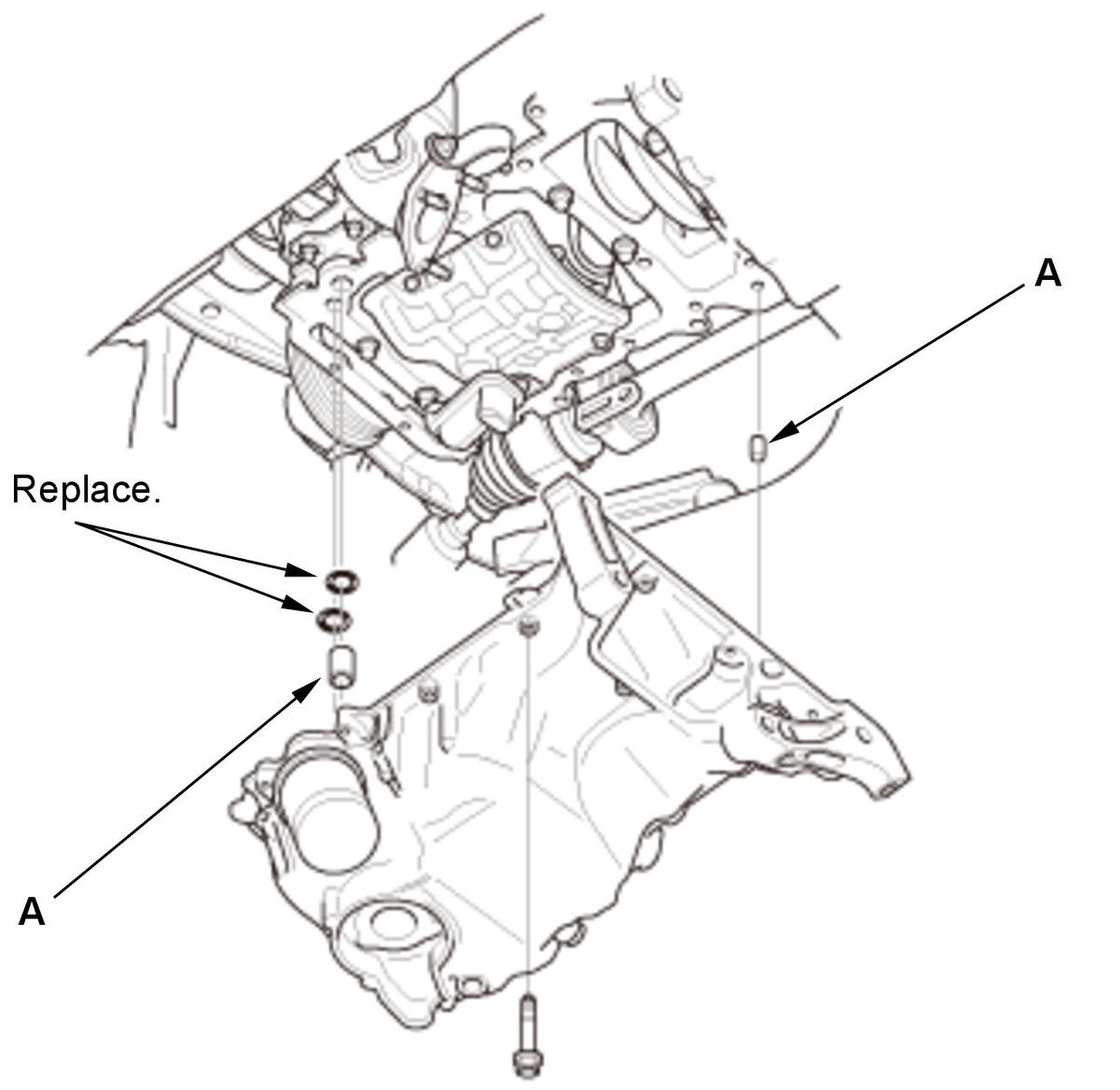

    GHH435376Courtesy of HONDA, U.S.A., INC.
    		 1. Apply liquid gasket

    to the lower block and the oil pump mating surface of the oil pan, and to the inside edge of the threaded bolt holes.

    2. Install the dowel pins (A).

    3. Loosely install the oil pan with new O-rings.

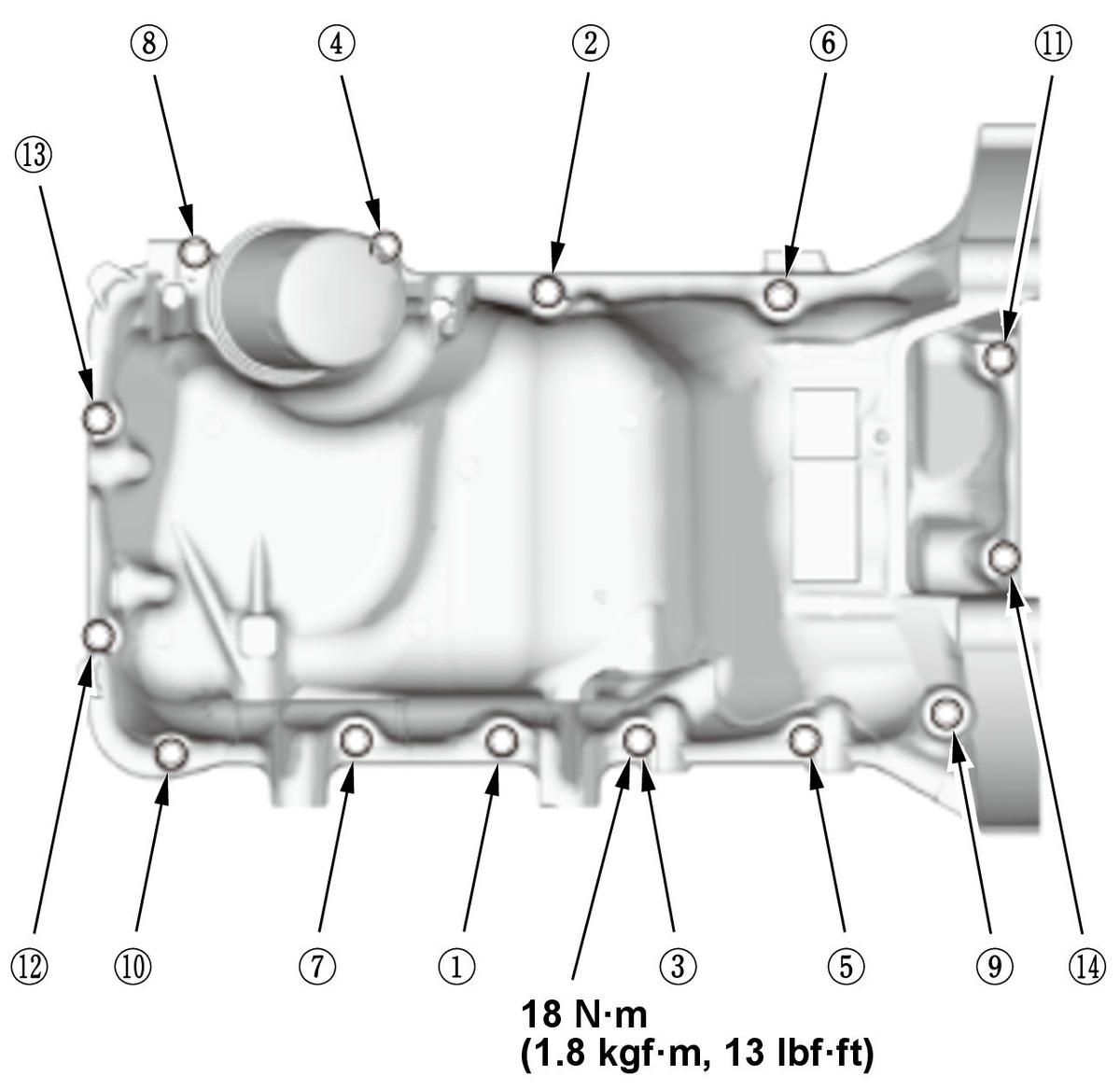

    Fig 1: Oil Pan Bolts Tightening Sequence With Torque Specifications
    GHH435377Courtesy of HONDA, U.S.A., INC.
      4. Tighten the bolts in three steps; tighten the bolts until the bolts sit on the oil pan, tighten the bolts until the gasket is compressed, tighten the bolts to specified torque. Wipe off the excess liquid gasket on the crankshaft pulley and the flywheel (M/T) or the drive plate (CVT).

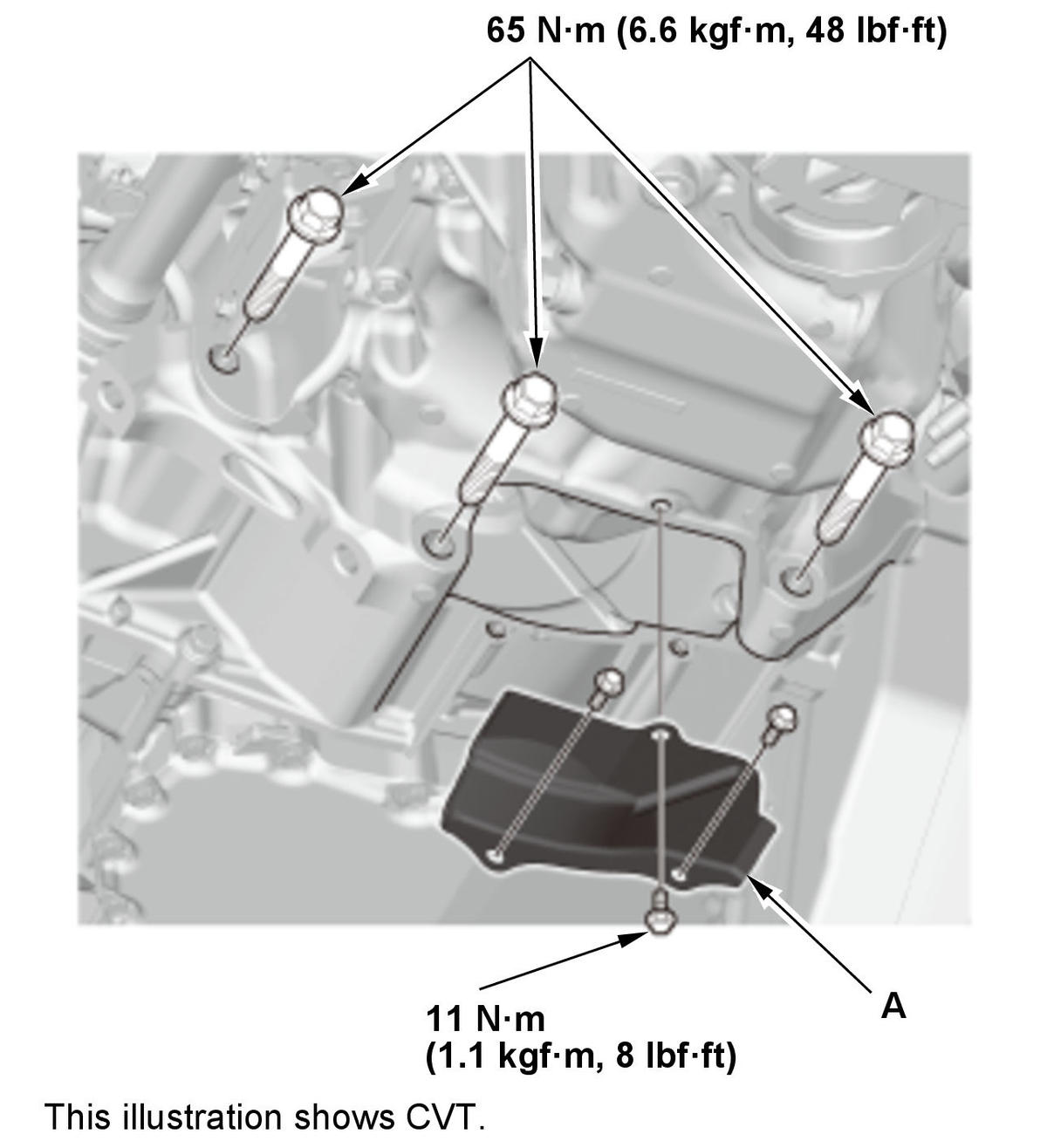

    Fig 2: Clutch Case Cover / Torque Converter Cover / Transmission Mounting Bolts With Torque Specifications
    GHH435378Courtesy of HONDA, U.S.A., INC.
      5. Install the clutch case cover (M/T) or the torque converter cover (CVT) (A) and the transmission mounting bolts.
  2. CKP Sensor Cover - Install
  3. Torque Rod Bracket and Torque Rod - Install
  4. Transmission Jack and Wood Block - Remove
  5. Intermediate Shaft Mounting Bolt - Install
  6. Exhaust Pipe A - Install
  7. A/C Compressor Bracket - Install

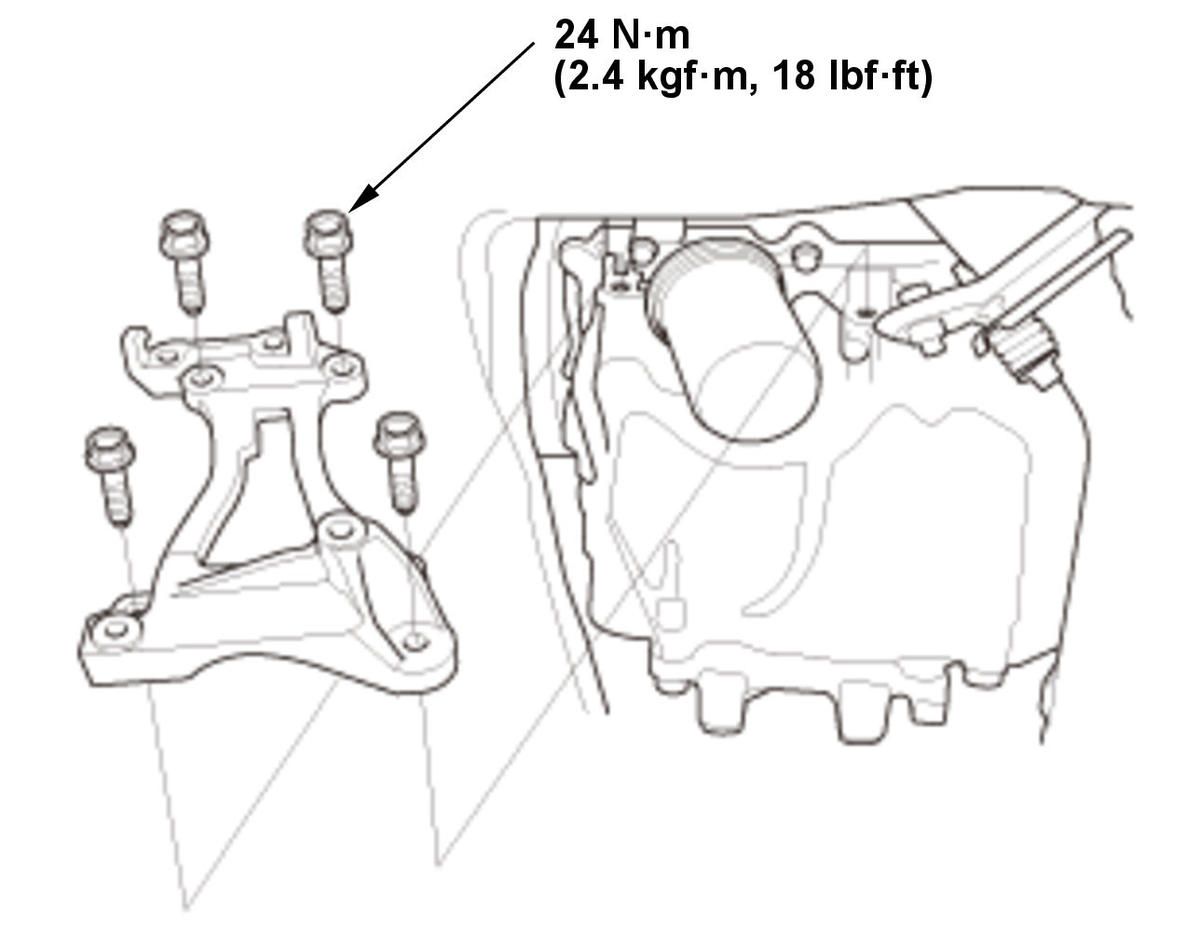

    Fig 3: A/C Compressor Bracket With Torque Specifications
    GHH435379Courtesy of HONDA, U.S.A., INC.
  8. A/C Compressor - Install

    NOTE:  Connect the connector at the same time.

  9. Drive Belt - Install
  10. Front Splash Shield and Engine Undercover (With Engine Undercover) - Install
  11. Right Front Wheel - Install
  12. Engine Oil - Refill
