Engine Oil Pan Removal and Installation: Removal

  1. Right Front Wheel - Remove
  2. Front Splash Shield and Engine Undercover (With Engine Undercover) - Remove
  3. Drive Belt - Remove
  4. A/C Compressor - Move

    NOTE:

    • Do not disconnect the A/C hoses.
    • Do not bend the A/C hoses excessively.
    • Disconnect the connector at the same time.
    • Hang the A/C compressor with a wire tie.
  5. Engine Oil - Drain

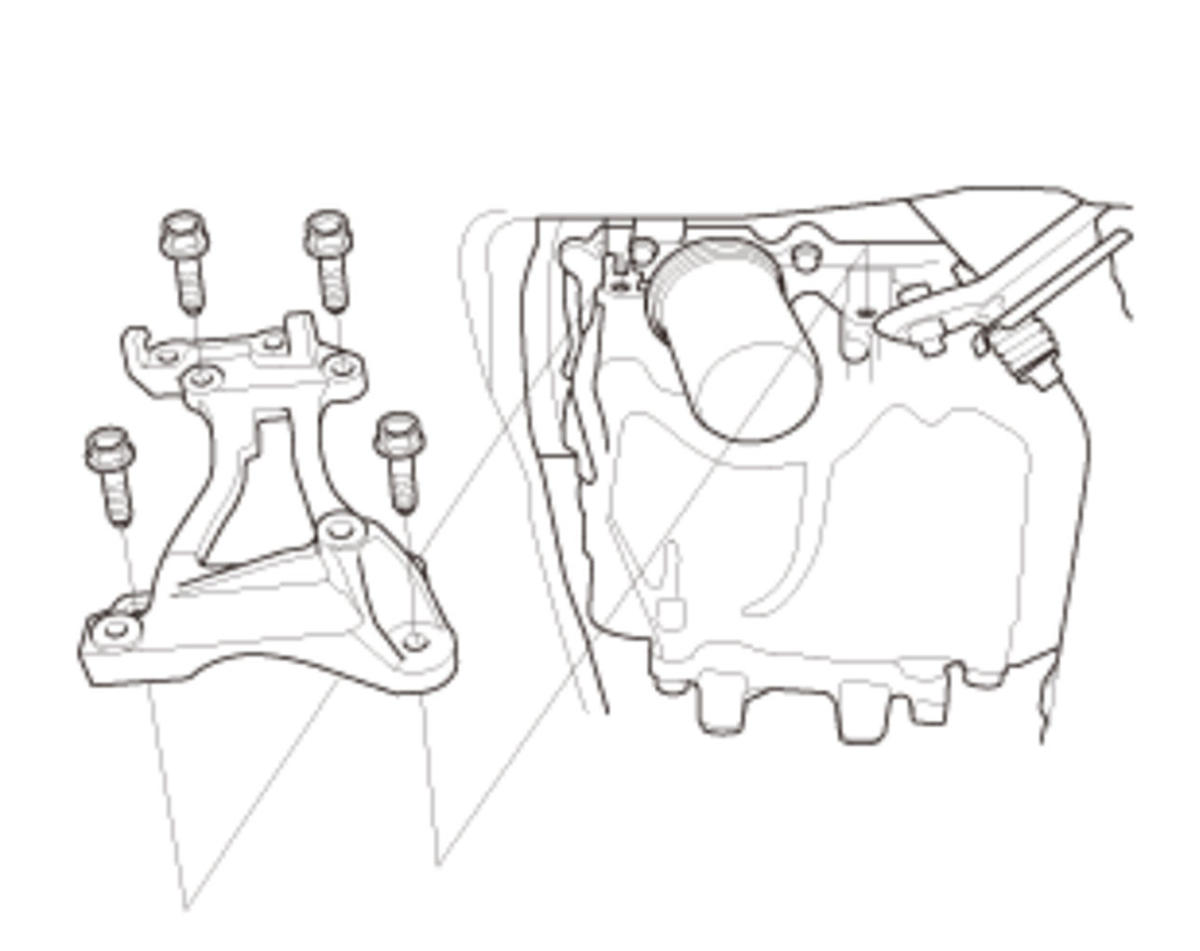

  6. A/C Compressor Bracket - Remove
    GHH435371Courtesy of HONDA, U.S.A., INC.
  7. Exhaust Pipe A - Remove
  8. Intermediate Shaft Mounting Bolt - Remove
  9. Engine - Support
    1. Support the transmission with a transmission jack and a wood block under the transmission.
  10. Torque Rod and Torque Rod Bracket - Remove
  11. CKP Sensor Cover - Remove
  12. Oil Pan - Remove
    GHH435372Courtesy of HONDA, U.S.A., INC.

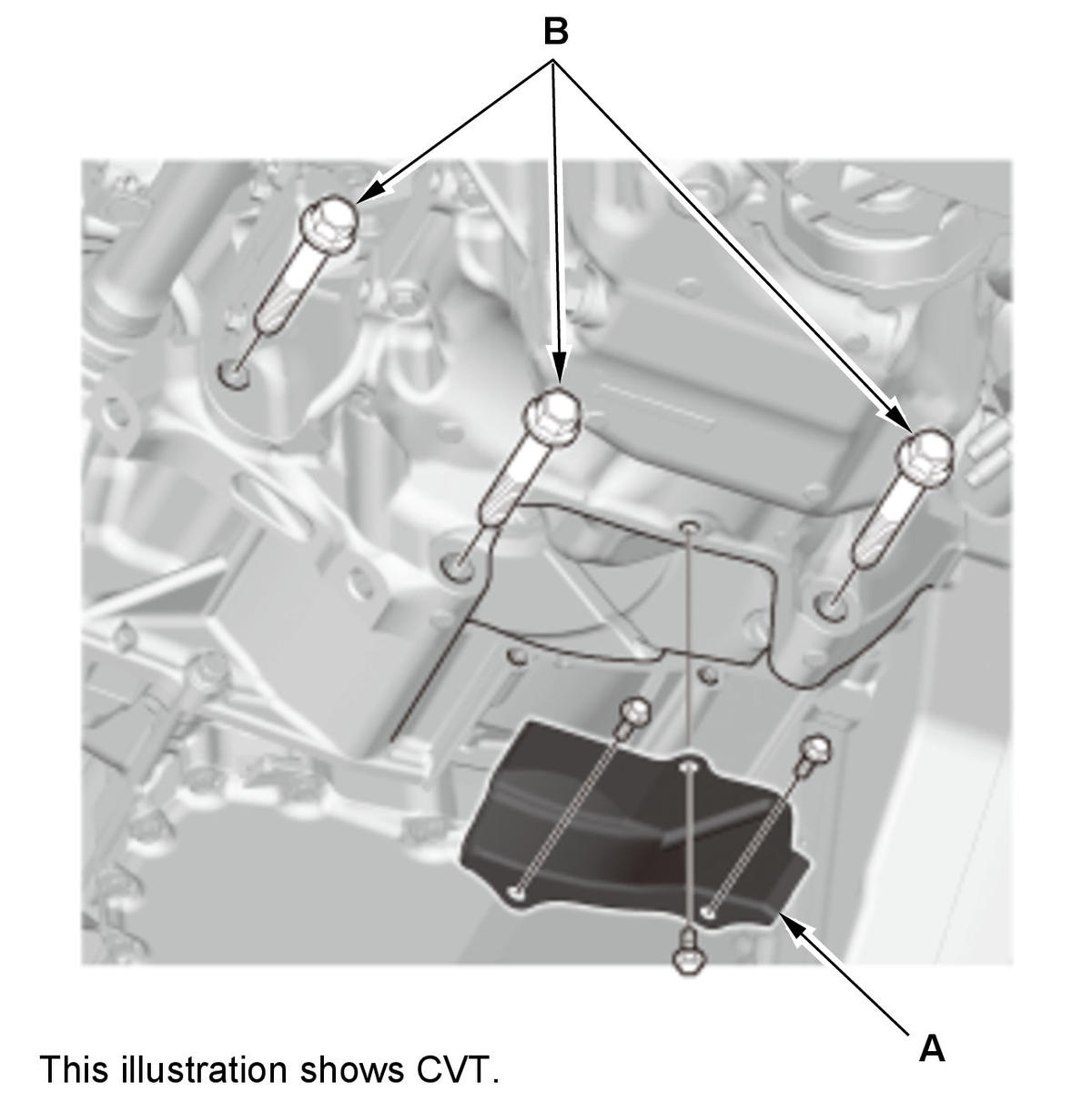

    		 1. Remove the clutch case cover (M/T) or the torque converter cover (CVT) (A) and the transmission mounting bolts (B).

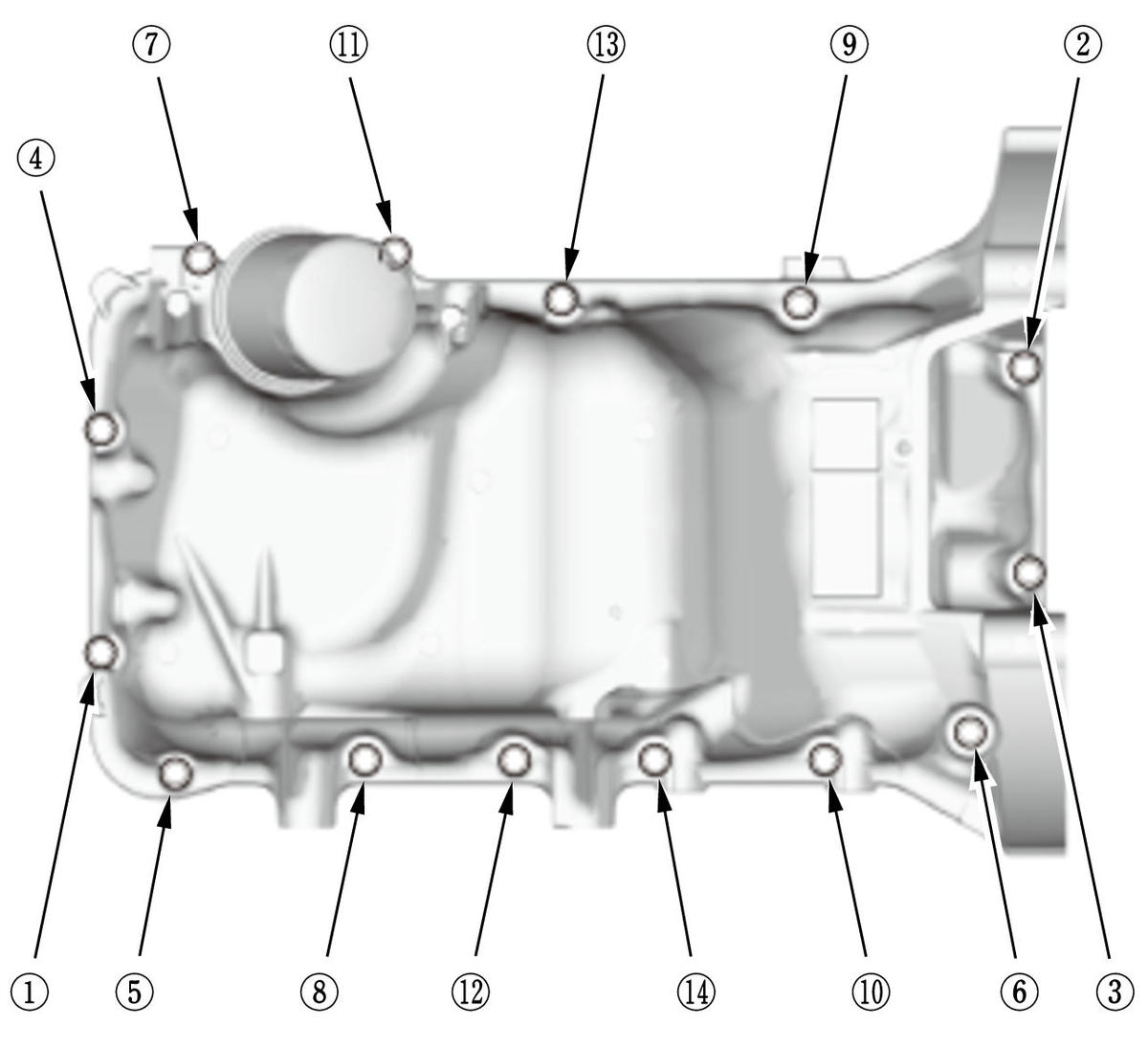

    Fig 1: Oil Pan Bolts Tightening Sequence
    GHH435373Courtesy of HONDA, U.S.A., INC.
      2. Remove the bolts securing the oil pan.
    GHH435374Courtesy of HONDA, U.S.A., INC.

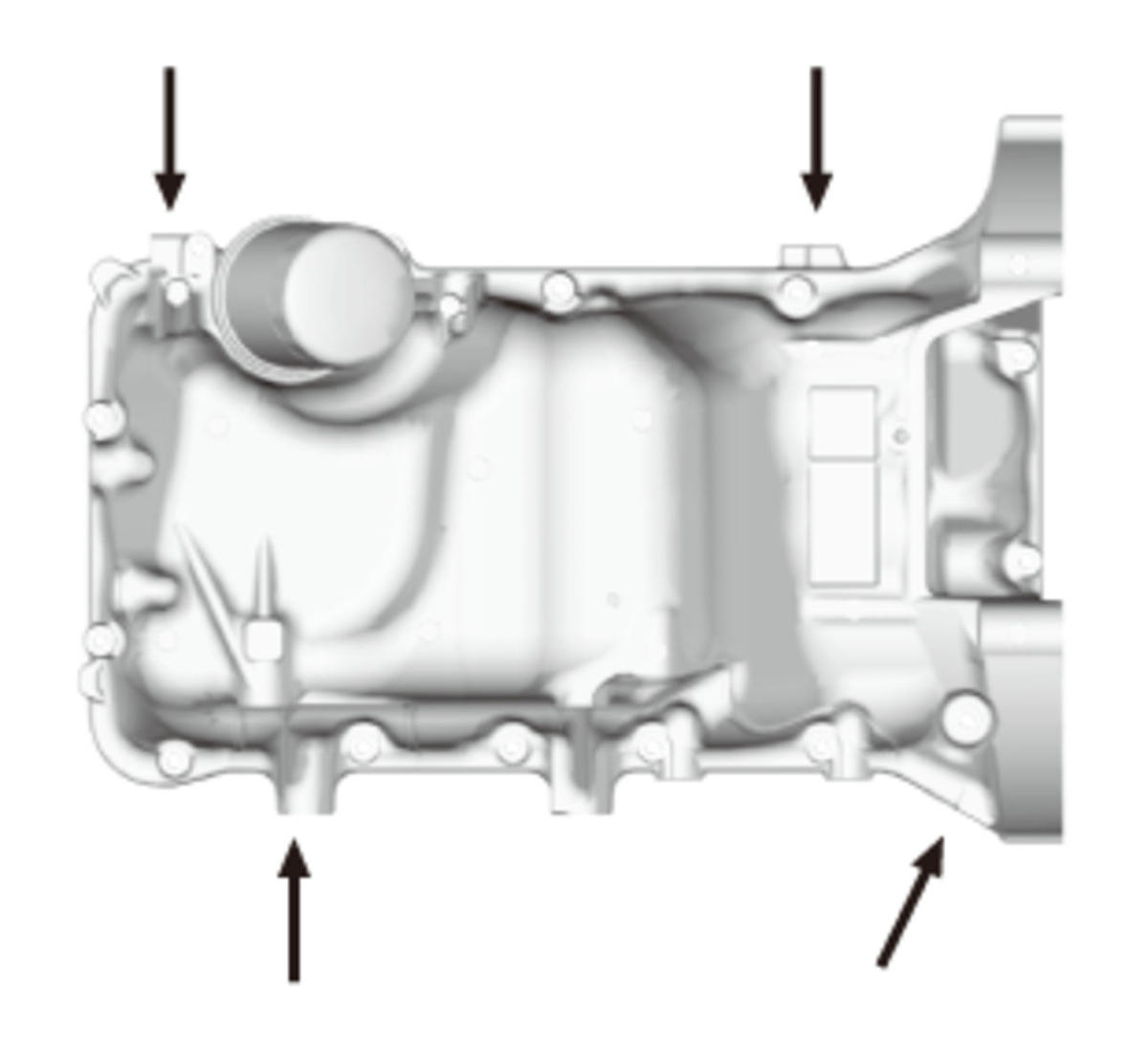

    		 3. Using a flat blade screwdriver, separate the oil pan from the lower block in the places shown.
    GHH435375Courtesy of HONDA, U.S.A., INC.

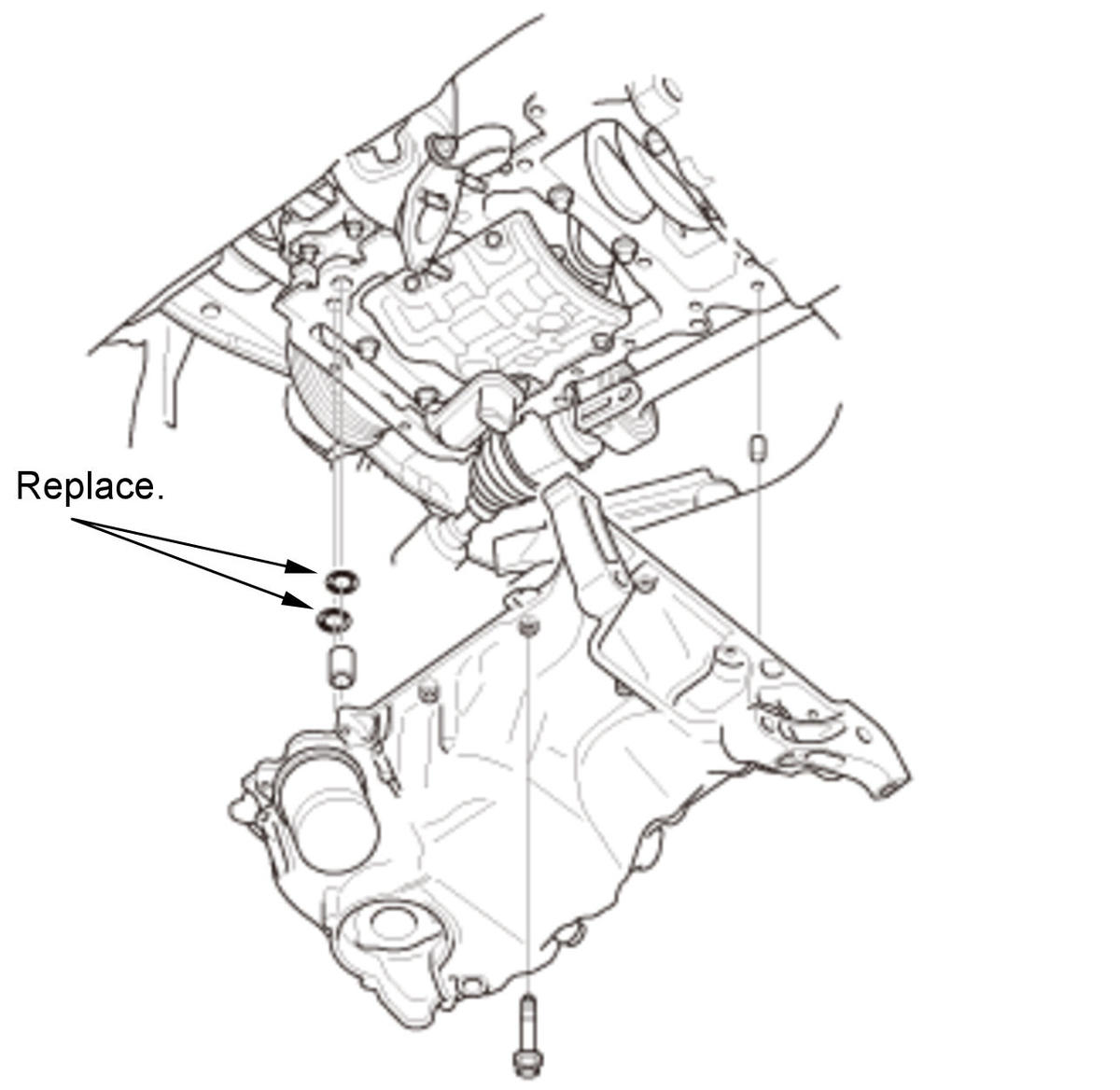

    		 4. Remove the oil pan.
