Engine Removal and Installation: Installation

  1. Accessory Bracket - Install

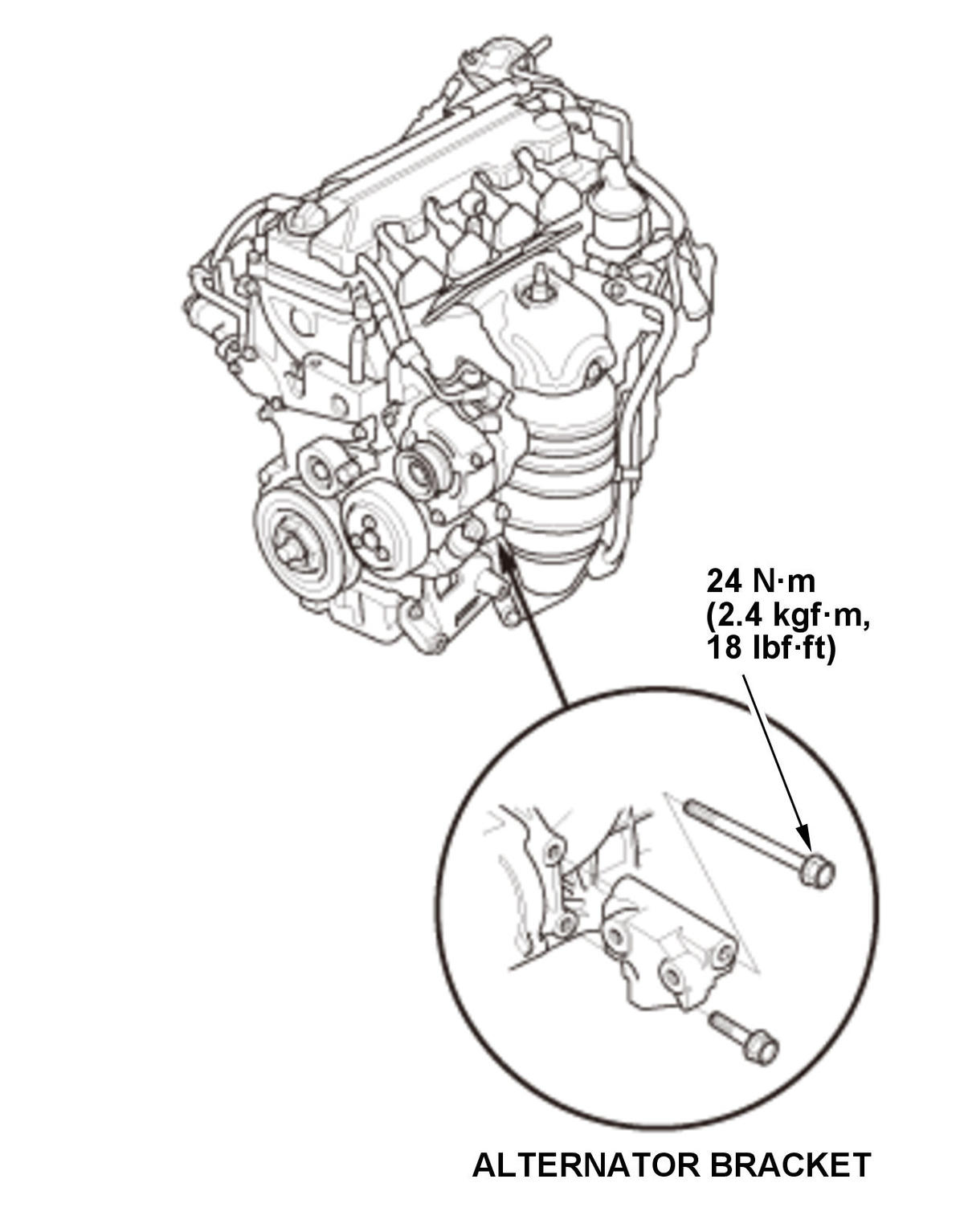

    Fig 1: Alternator Bracket With Torque Specifications
    GHH435388Courtesy of HONDA, U.S.A., INC.
      1. If the alternator bracket is removed, install the alternator bracket.

    2. If the A/C compressor bracket is removed, install the A/C compressor bracket

    3. If the torque rod bracket is removed, install the torque rod bracket .NOTE:  Always use new bolts. (2WD)
  2. Universal Lifting Eyelet - Install

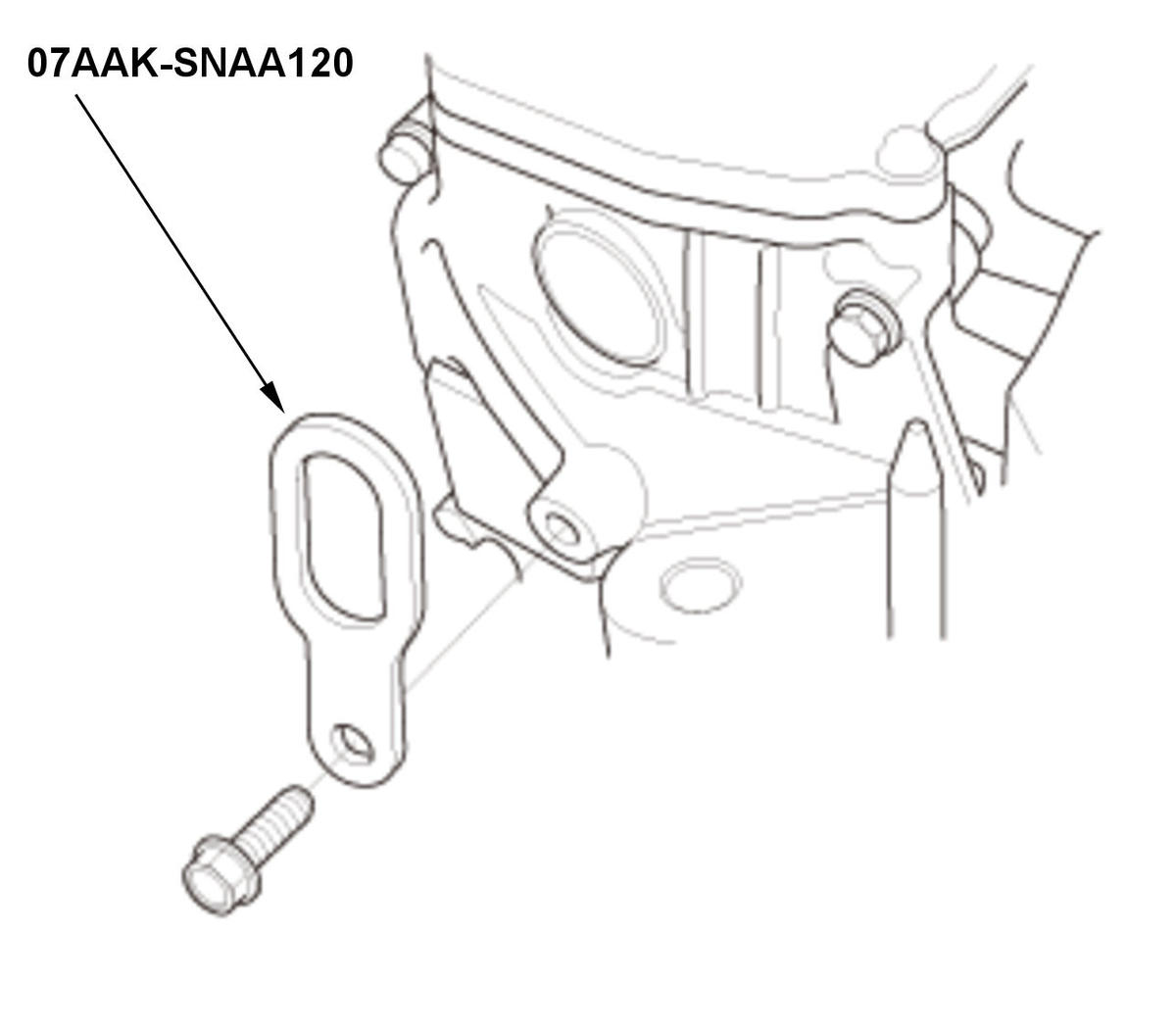

    GHH435389Courtesy of HONDA, U.S.A., INC.
  3. Engine - Install

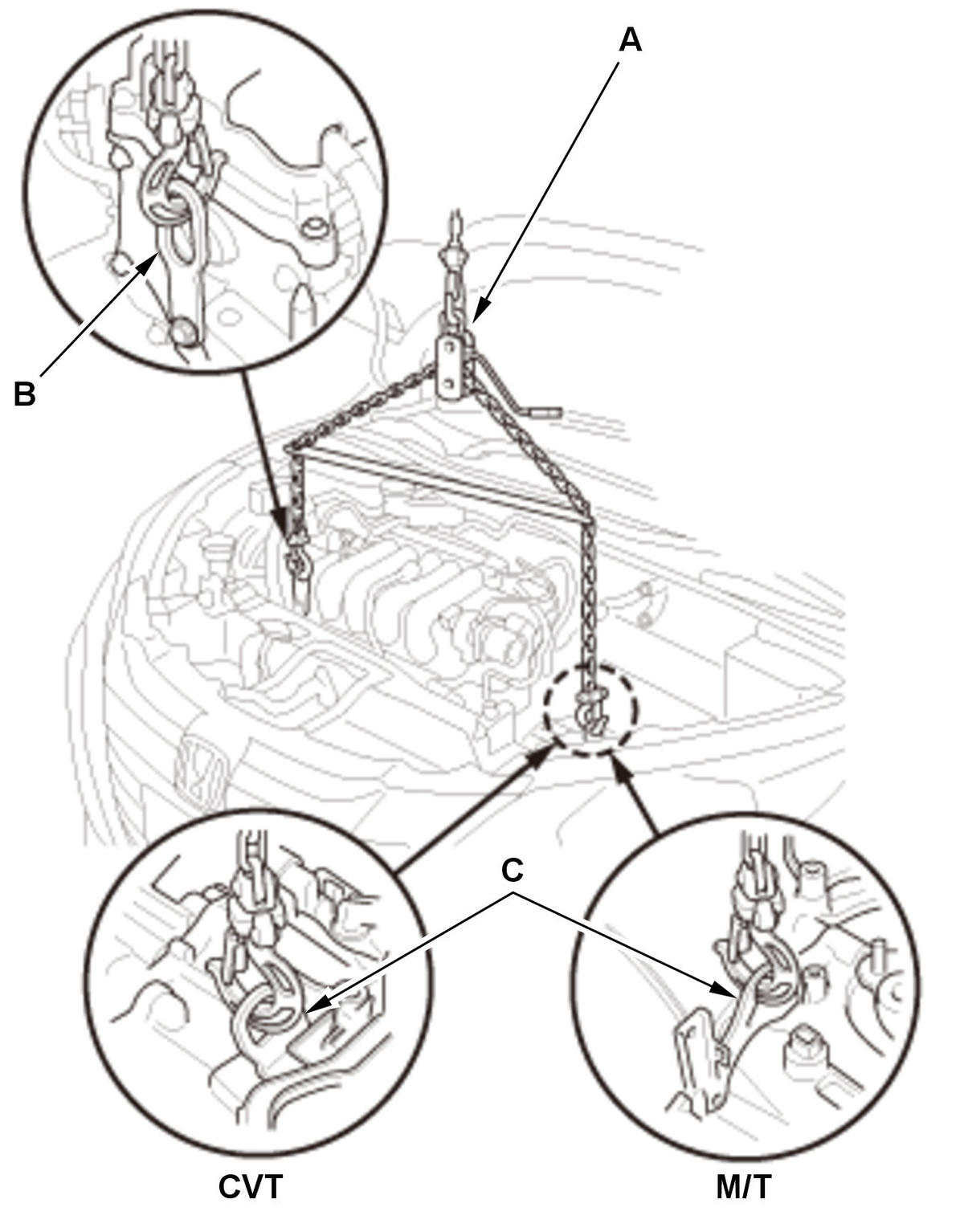

    GHH435390Courtesy of HONDA, U.S.A., INC.
    		 1. Attach the chain hoist (A) to the universal lifting eyelet (B) and the transmission hanger (C), then lift the engine/transmission until it is securely supported by the chain hoist.

    2. Position the engine/transmission under the vehicle. Be sure that they are properly aligned. Carefully lower the vehicle until the engine/transmission are properly positioned in the engine compartment. Make sure the vehicle is not resting on any part of the engine/transmission. Support the engine/transmission with the chain hoist and carefully raise the engine/transmission into place.
  4. Transmission Mount Bracket Mounting Bolt and Nut - Loosely Install

    NOTE:  Always use new bolts and new nuts.

  5. Engine - Support
    1. Lift and support the engine with a jack and a wood block under the oil pan.
  6. Chain Hoist and Universal Lifting Eyelet - Remove
  7. Side Engine Mount - Loosely Install

    NOTE:

    • Always use new bolts and new nuts.
    • Connect the ground cable at the same time.
  8. Vehicle - Lift
    1. Raise the vehicle.
  9. Front Subframe - Support

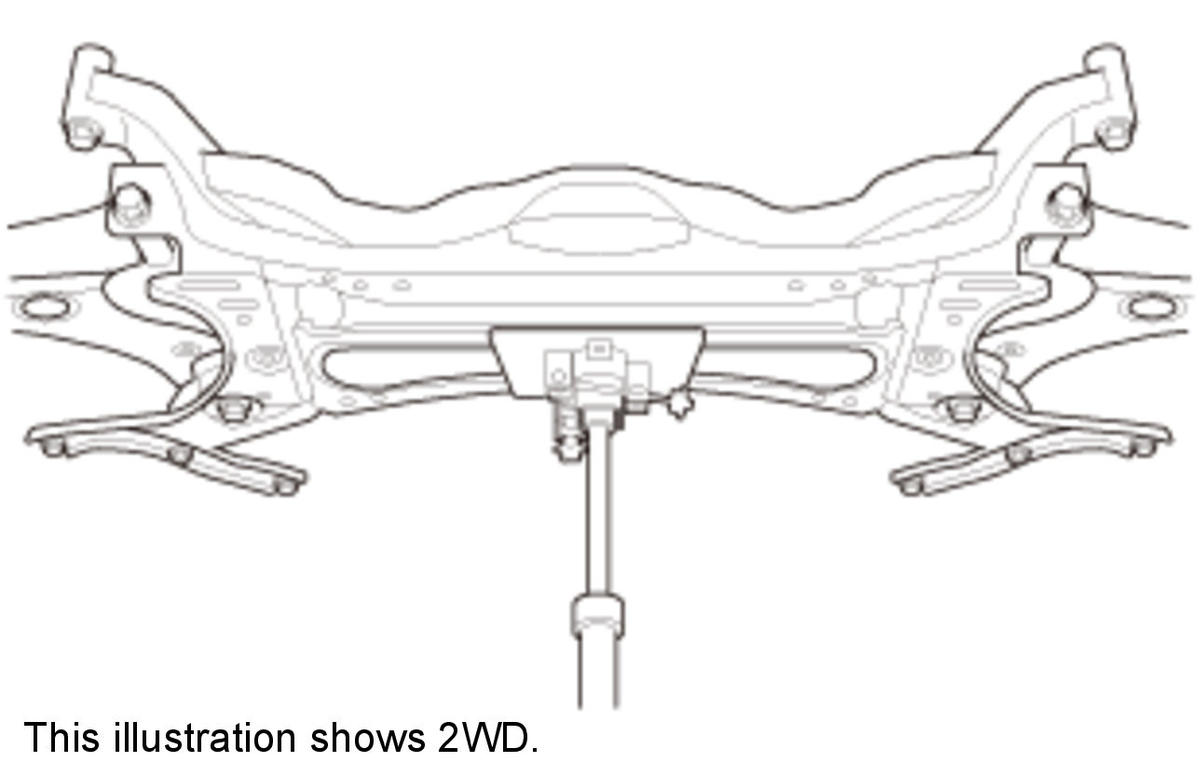

    GHH435391Courtesy of HONDA, U.S.A., INC.
    		 1. Support the front subframe with a transmission jack.
  10. Front Subframe - Install
  11. Torque Rod - Loosely Install

    NOTE:  Always use new bolts.

  12. Vehicle - Lift
    1. Lower the vehicle.
  13. All Engine Mount Mounting Bolt and Nut - Tighten
  14. Vehicle - Lift
    1. Raise the vehicle.
  15. A/C Compressor - Install

    NOTE:  Connect the connector at the same time.

  16. Propeller Shaft - Install (AWD)
  17. Front Driveshaft - Install
  18. Tie-Rod End Ball Joint - Connect
  19. Lower Arm Ball Joint - Connect
  20. Front Stabilizer Link Ball Joint - Connect
  21. Exhaust Pipe A - Install
  22. Drive Belt - Install
  23. A/C Pipe Clamp Bolt - Install
  24. Radiator - Install
  25. Front Splash Shield and Engine Undercover (With Engine Undercover) - Install
  26. Front Wheel - Install
  27. Vehicle - Lift
    1. Lower the vehicle.
  28. Steering Joint - Connect
  29. Heater Hose - Connect

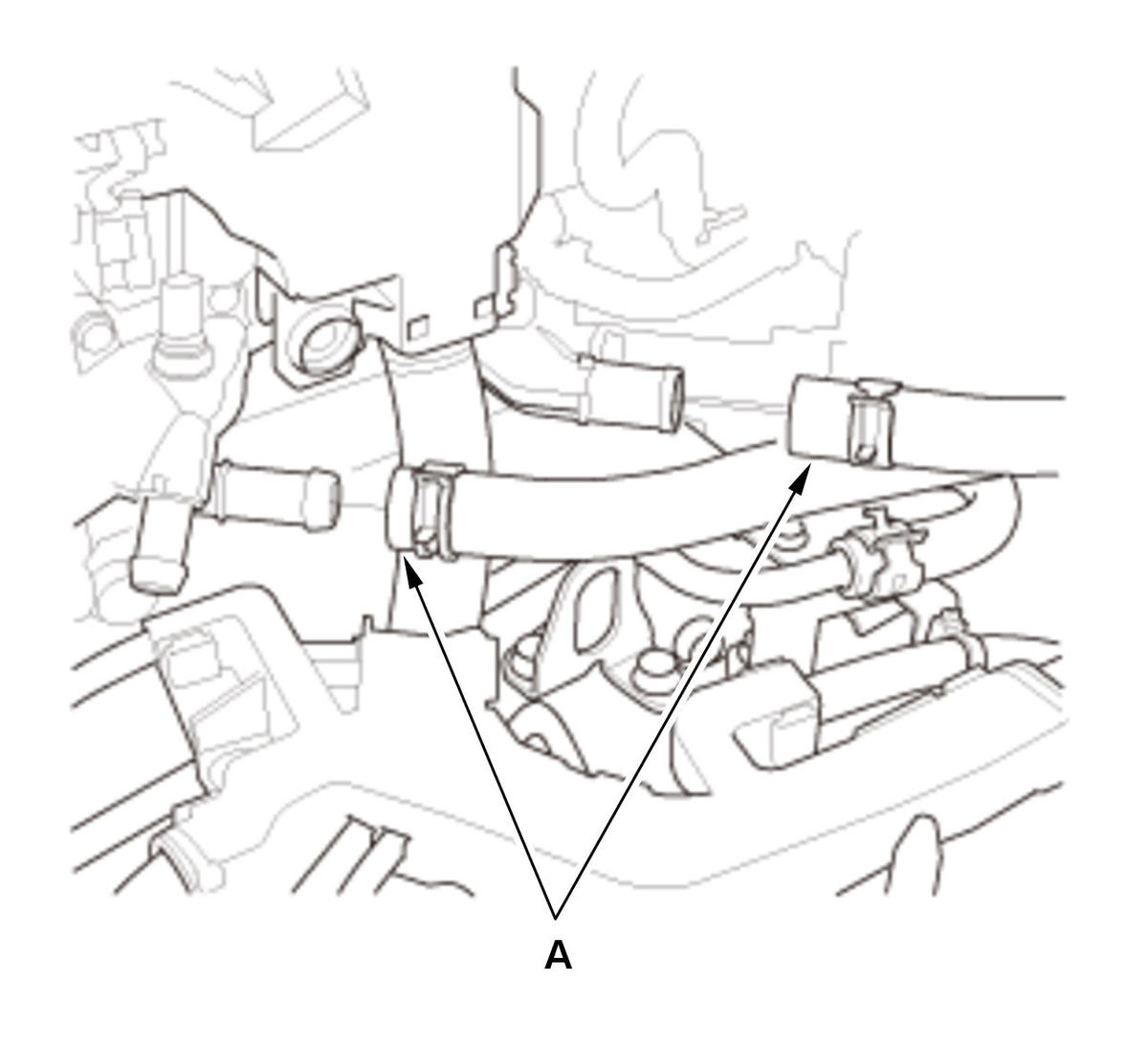

    GHH435392Courtesy of HONDA, U.S.A., INC.
    		 1. Connect the heater hoses (A).
  30. Slave Cylinder - Install (M/T)
  31. Change Wire Bracket - Install (M/T)
  32. Shift Cable (Transmission Side) - Connect (CVT)
  33. Fuel Feed Hose (Fuel Rail Side) - Connect
  34. Connector (Engine Wire Harness) - Connect

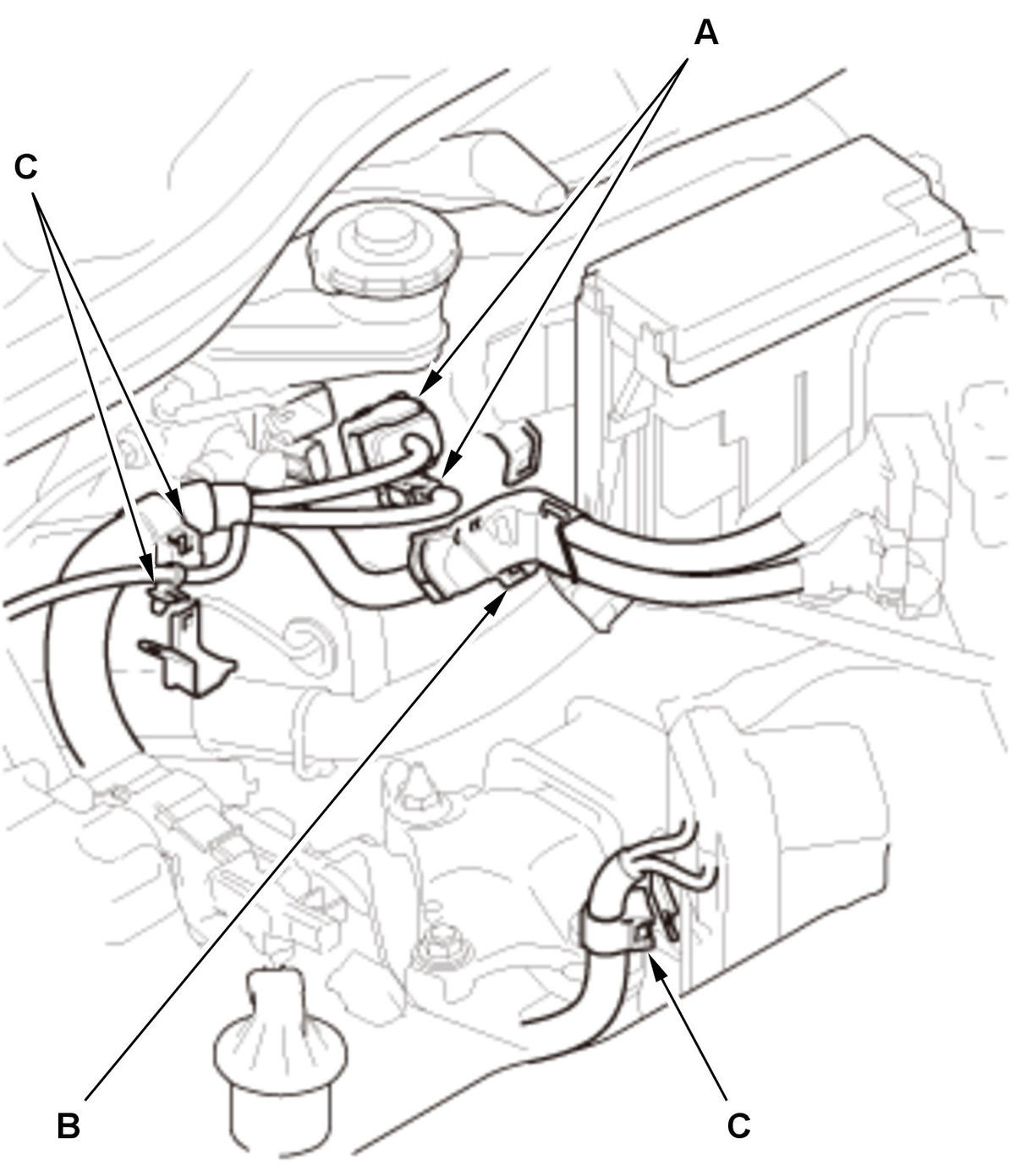

    GHH435393Courtesy of HONDA, U.S.A., INC.
    		 1. Connect the connectors (A).

    2. Install the harness holder clamp (B) and the harness clamps (C).
  35. Connector (PCM) - Connect
  36. EVAP Canister Purge Hose and Brake Booster Vacuum Hose - Connect

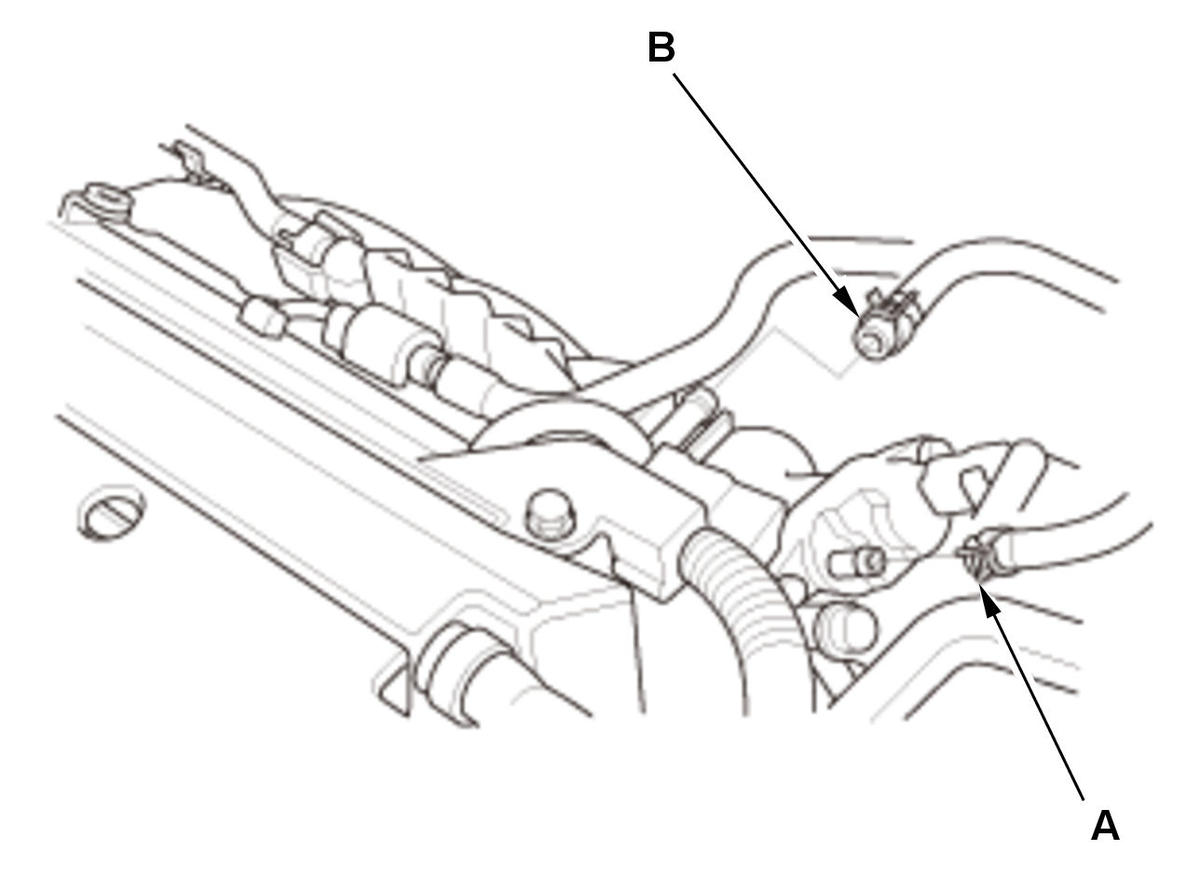

    GHH435394Courtesy of HONDA, U.S.A., INC.
    		 1. Connect the EVAP canister purge hose (A) and the brake booster vacuum hose (B).
  37. Intake Air Resonator - Install
  38. Intake Air Duct - Install
  39. Air Cleaner and Air Intake Duct - Install
  40. Front Grille Cover - Install
  41. 12 Volt Battery - Install

    NOTE:  Do not connect the 12 Volt battery negative terminal in this step.

  42. Positive Cable (12 Volt Battery Terminal Fuse Box) - Connect

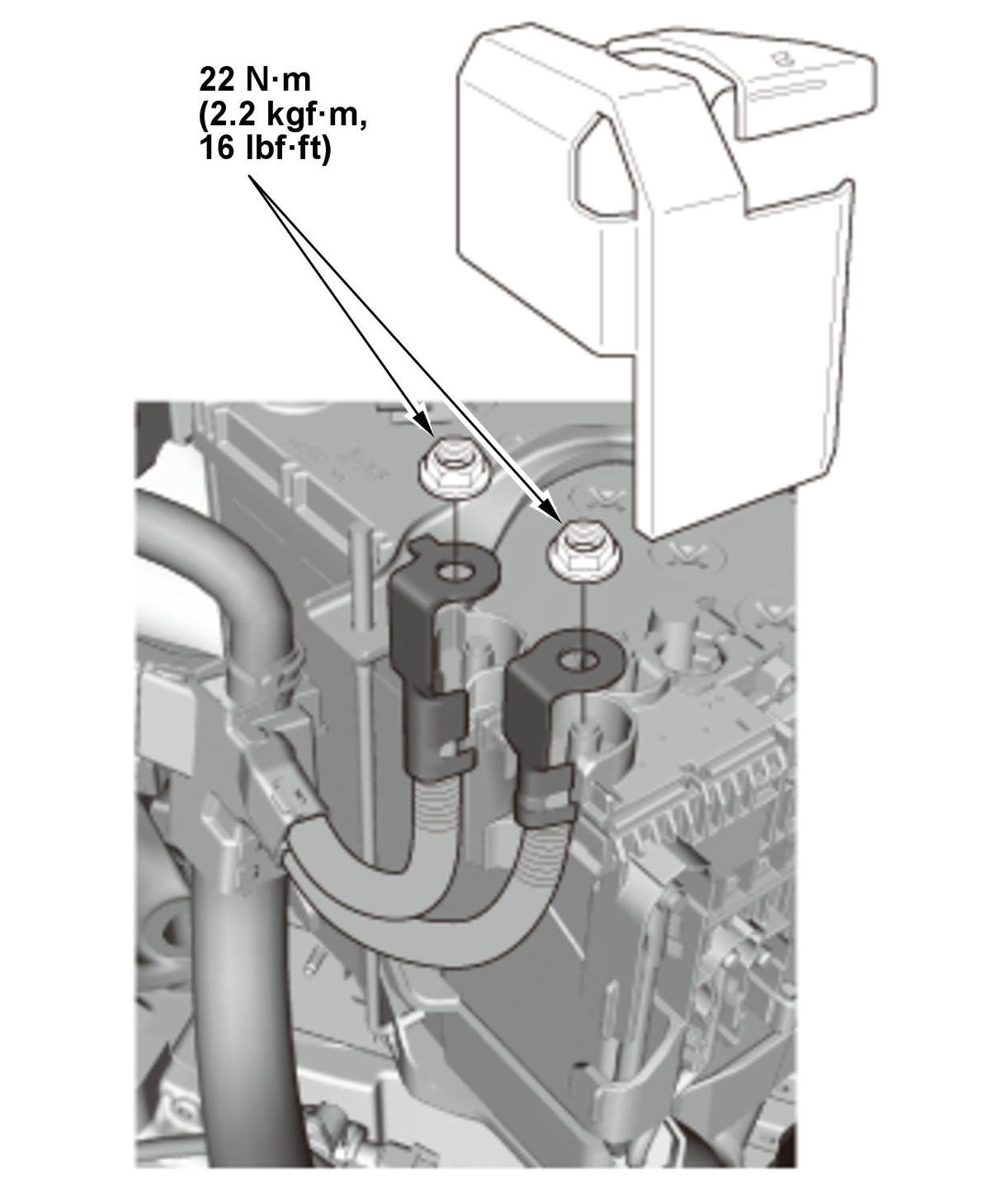

    Fig 2: Positive Battery Cable With Torque Specifications
    GHH435395Courtesy of HONDA, U.S.A., INC.
      1. Connect the positive cables.

    2. Install the cover.
  43. 12 Volt Battery Terminal - Connect
  44. Fuel Leak - Inspect
    1. Turn the vehicle to the ON mode, but do not operate the starter. After the fuel pump runs for about 2 seconds, the fuel rail will be pressurized. Repeat this two or three times, then check for fuel leakage.
  45. Engine Oil - Refill
  46. Transmission Fluid - Refill
    1. Refill the transmission fluid:
  47. Engine Coolant - Refill/Air Bleed
  48. Transmission Gear - Check
    1. M/T: Check that the transmission shifts into all gears smoothly.

    2. CVT: Move the shift lever to each gear, and verify that the A/T gear position indicator follows the transmission range switch.
  49. PCM - Reset
  50. CKP Pattern - Clear/Learn
  51. Idle Speed - Inspect
  52. Ignition Timing - Inspect
  53. Wheel Alignment - Check
  54. VSA Sensor Neutral Position - Memorization
