Exploded View

  1. Intake Manifold Exploded View

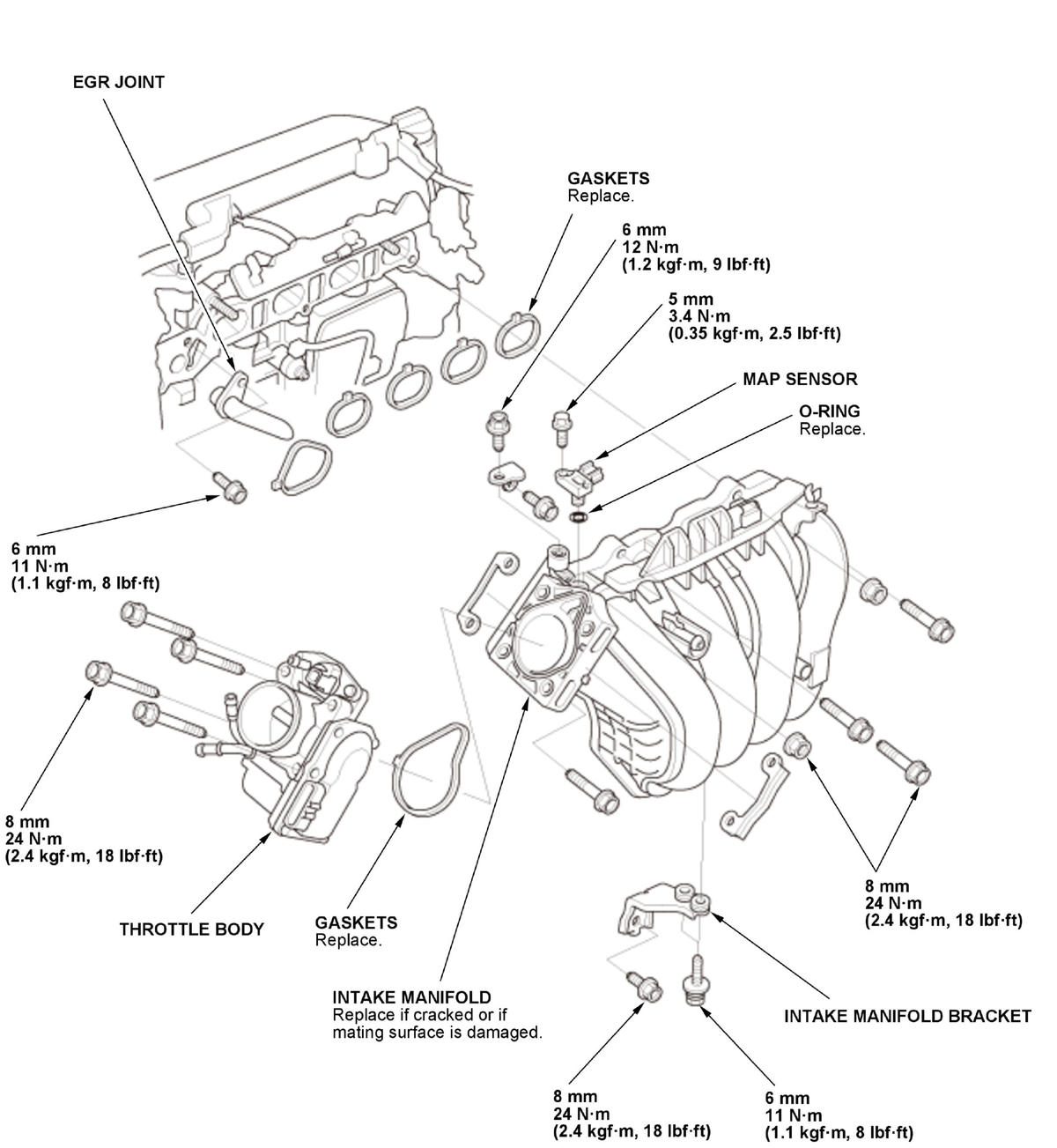

    Fig 1: Intake Manifold Exploded View With Torque Specifications
    GHH435405Courtesy of HONDA, U.S.A., INC.
